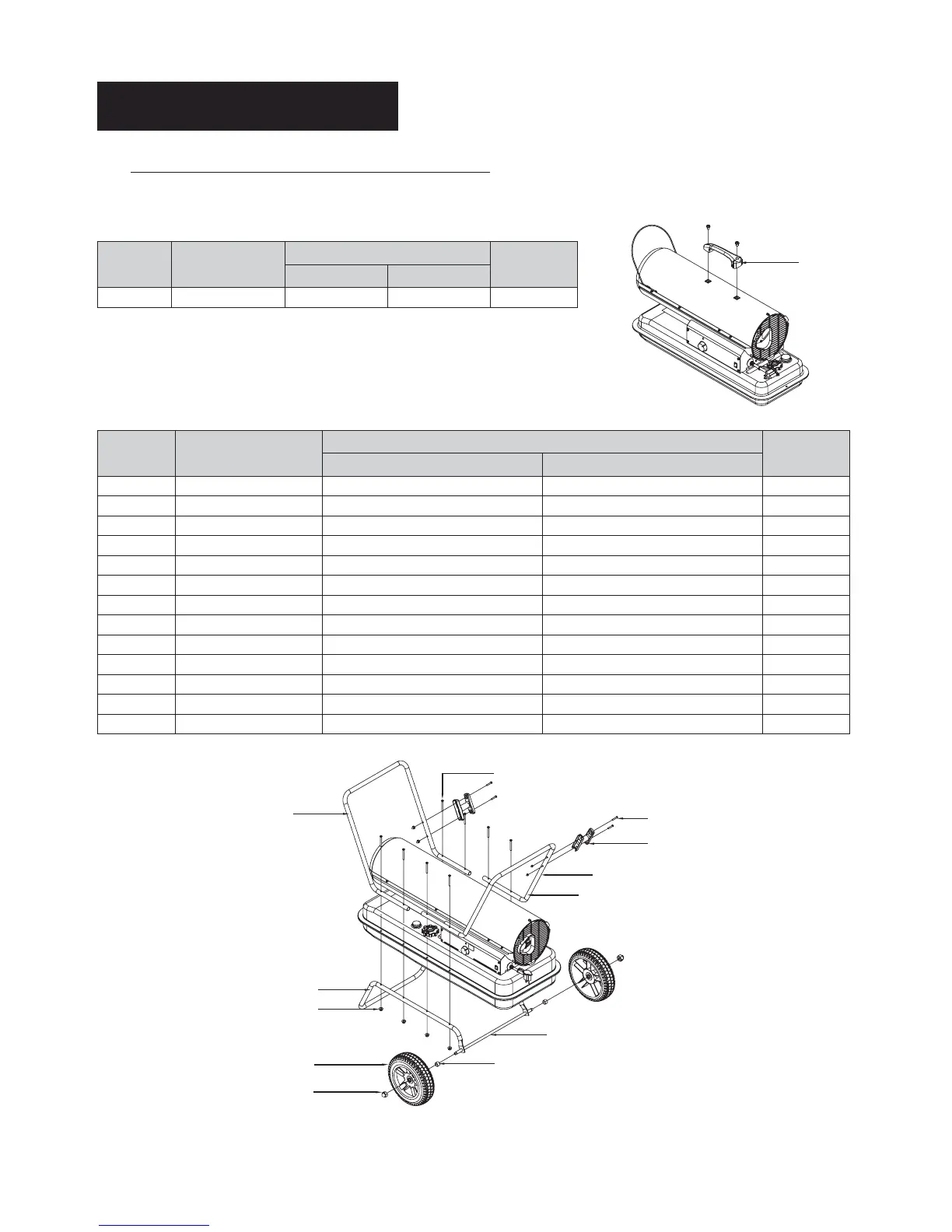

15. PARTS LIST (WHEELS AND HANDLE)
1) DFA50/80T MODELS
2) DFA135C/180CV/220CV MODELS
KEY NO. DESCRIPTION
PART NO.
QUANTITY
DFA50 DFA80T
1 Handle 3231-0073-00 3231-0073-00 1
KEY NO. DESCRIPTION
PART NO.
QUANTITY
DFA135C DFA180CV / 220CV
1 Front Handle 3551-0023-00 3551-0022-00 1
2 Rear Handle 3551-0086-00 3551-0087-00 1
3 Wheel Support Frame 3551-0082-00 3551-0084-00 1
4 Wheel 3720-0017-00 3720-0017-00 2
5 Threaded Axle 3551-0088-00 3551-0089-00 1
6 Cord Wrap - 3221-0042-00 2
7 Hardware Kit HW-KFA1016 HW-KFA1016 1
7-1 Screw INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 8
7-2 Flange Screw INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 4
7-3 Cap Nut S INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 4
7-4 Nut INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 8
7-5 Bushing INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 2
7-6 Cap Nut L INCLUDED IN HARDWARE KIT INCLUDED IN HARDWARE KIT 2
