12 EATON Series 1 Heavy Duty Hydrostatic Fixed Displacement Motors Parts and Repair E-MOPI-TS002-E September 2004
Parts

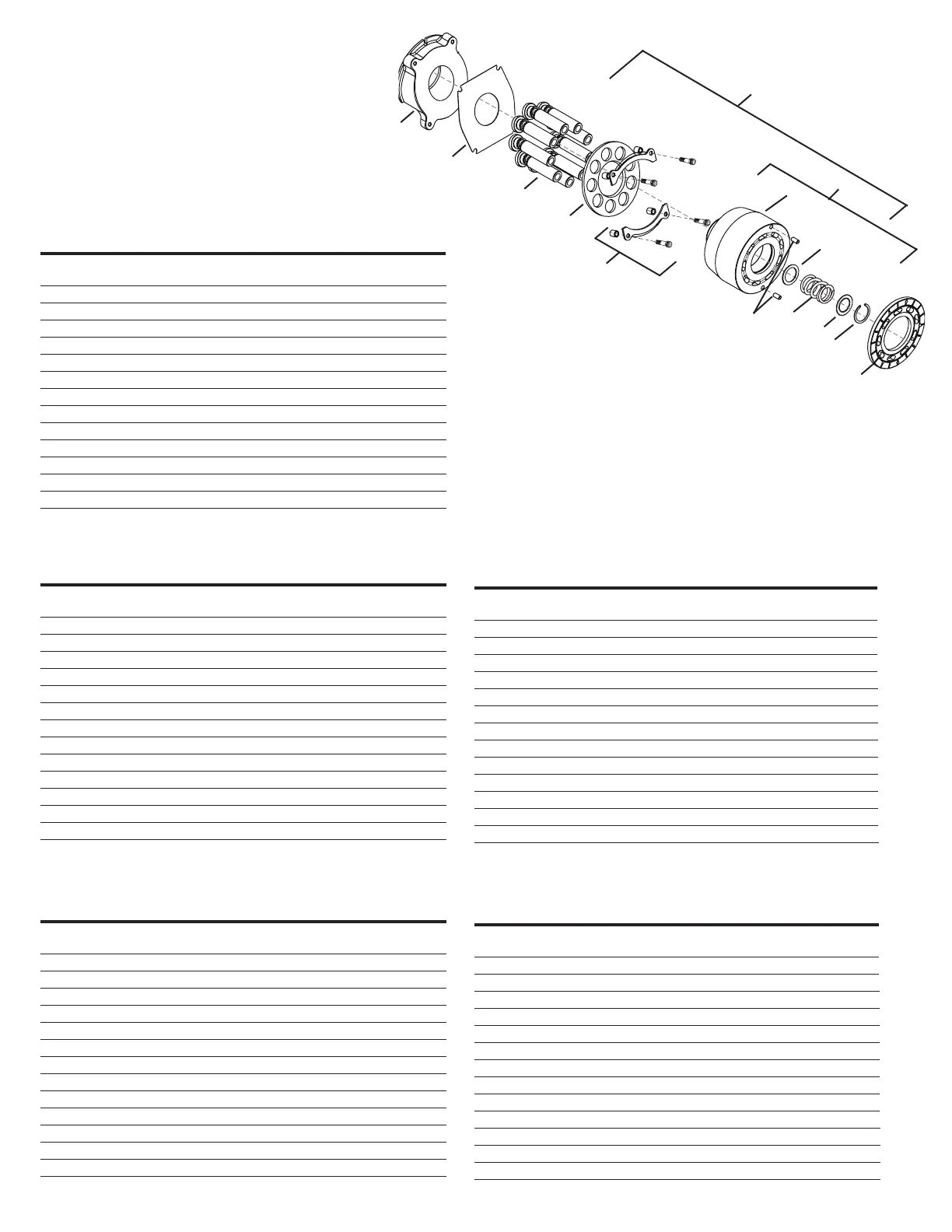

Rotating Group
(Item 19)
10
9
8
7
6
1
11
5
2
3
4
12
Models 3331/3333
Subassembly 103247-000
ITEM PART NO. QTY. DESCRIPTION
A 103239-000 Rotating Group Subassembly
Include all except item 9, 10
B 990412-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 103243-000 1 Spacer Shaft Spring
5 103245-000 1 Barrel and Sleeve S/A
6 990416-000 1 Hold-down Kit (See Table 6.2)
7 103244-000 1 Shoe Retainer Plate
8 101073-000 9 Shoe Piston Subassembly
9 103236-000 1 Fixed Clr Thrust Plate
10 103248-000 1 Swashplate Subassembly
11 103241-000 1 Bearing Plate
12 98202-000 2 Dowel Pin(5/16 x 5/8 long)
Models 3931/3933
Subassembly 103234-000
ITEM PART NO. QTY. DESCRIPTION
A 103239-000 Rotating Group Subassembly
Include all except item 9, 10
B 990412-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 103243-000 1 Spacer Shaft Spring
5 103245-000 1 Barrel and Sleeve S/A
6 990416-000 1 Hold-down Kit (See Table 6.2)
7 103244-000 1 Shoe Retainer Plate
8 101073-000 9 Shoe Piston Subassembly
9 103236-000 1 Fixed Clr Thrust Plate
10 103238-000 1 Swashplate Subassembly
11 103241-000 1 Bearing Plate
12 98202-000 2 Dowel Pin (5/16 x 5/8 long)
Model 5431/5433
Subassembly 103874-000
ITEM PART NO. QTY. DESCRIPTION
A 103851-000 1 Rotating Group Subassembly
Include all except item 9, 10
B 990414-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 103816-000 1 Spacer Shaft Spring
5 103854-000 1 Barrel and Sleeve S/A
6 990417-000 1 Hold-down Kit (See Table 6.2)
7 103853-000 1 Shoe Retainer Plate
8 101077-000 9 Shoe Piston Subassembly
9 103809-000 1 Fixed Clr Thrust Plate
10 103872-000 1 Swashplate Subassembly
11 103852-000 1 Bearing Plate
12 98202-000 2 Dowel Pin (5/16 x 5/8 long)
Model 4631/4633
Subassembly 106607-000
ITEM PART NO. QTY. DESCRIPTION
A 106608-000 1 Rotating Group Subassembly
Include all except item 9, 10
B 990413-000 1 Barrel Kit (includes items 1 through 5)
1 103278-200 1 Retaining Ring
2 103242-000 1 Spacer Cyl Barrel Spring
3 103240-000 1 Cylinder Barrel Spring
4 103243-000 1 Spacer Shaft Spring
5 104195-000 1 Barrel and Sleeve S/A
6 990416-000 1 Hold-down Kit (See Table 6.2)
7 104211-000 1 Shoe Retainer Plate
8 106609-000 9 Shoe Piston Subassembly
9 103236-000 1 Fixed Clr Thrust Plate
10 103238-000 1 Swashplate Subassembly
11 104198-000 1 Bearing Plate
12 98202-000 2 Dowel Pin (5/16 x 5/8 long)
Model 6431/6433
Subassembly 103871-000
ITEM PART NO. QTY. DESCRIPTION
A 103812-000 1 Rotating Group Subassembly
Include all except item 9, 10
B 990415-000 1 Barrel Kit (includes items 1 through 5)
1 103278-225 1 Retaining Ring
2 103815-000 1 Spacer Cyl Barrel Spring
3 103813-000 1 Cylinder Barrel Spring
4 103816-000 1 Spacer Shaft Spring
5 103821-000 1 Barrel and Sleeve Subassembly
6 990417-000 1 Hold-down Kit (See Table 6.2)
7 103817-000 1 Shoe Retainer Plate
8 103818-000 9 Shoe Piston Subassembly
9 103809-000 1 Fixed Clr Thrust Plate
10 103872-000 1 Swashplate Subassembly
11 103814-000 1 Bearing Plate
12 98202-000 2 Dowel Pin (5/16 x 5/8 long)
B
A
Table 5.0 Rotating Group Subassembly
