13EATON Series 1 Heavy Duty Hydrostatic Fixed Displacement Motors Parts and Repair E-MOPI-TS002-E September 2004
Parts

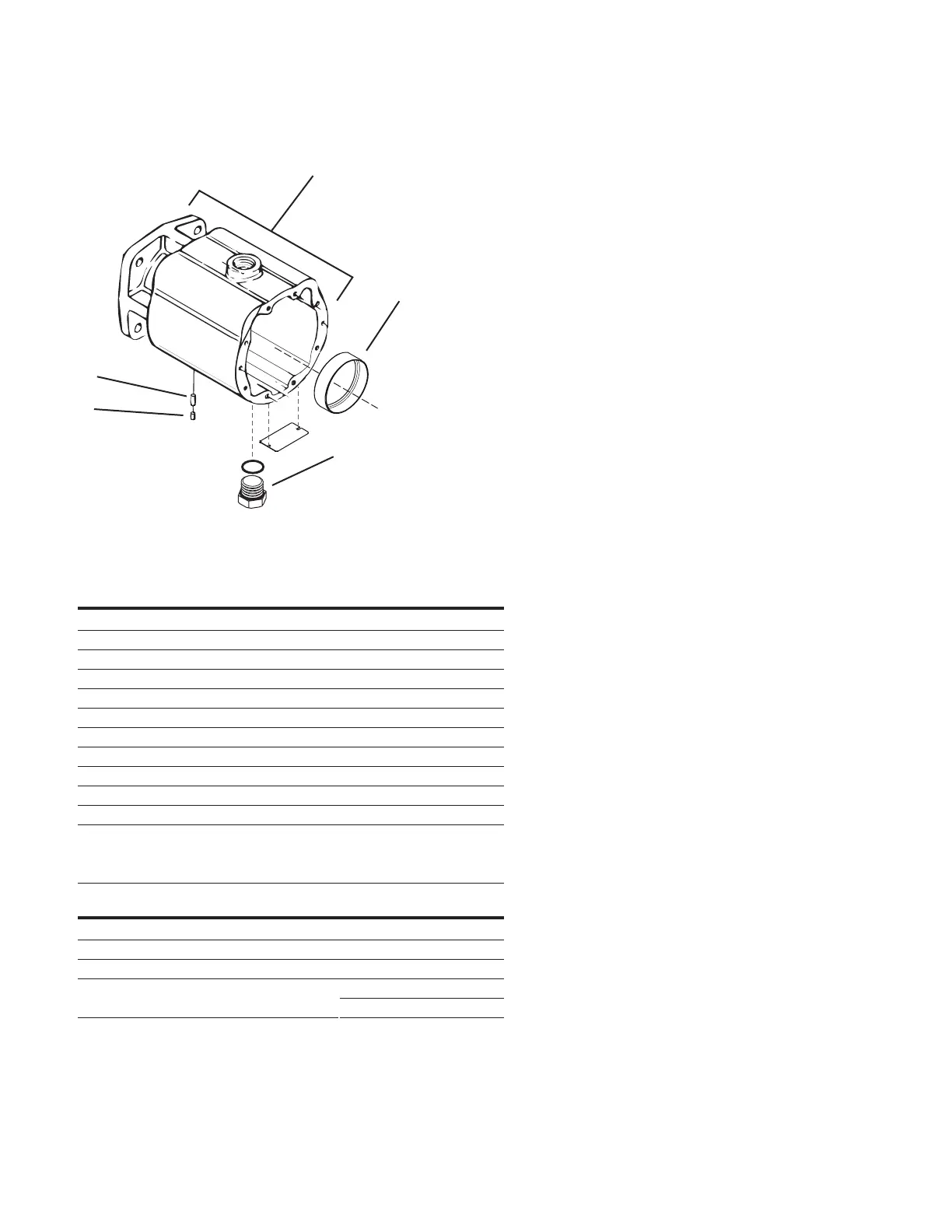

Motor Housing
(Item 4)
Table 6.0 Fixed Housing Subassembly
(Item 4)
PART NO. MODEL DESCRIPTION
112612-000 33-39-46 Main Housing
112611-000 33-39-46 Main Housing
112613-000 33-39-46 Main Housing
112614-000 33-39-46 Main Housing
112615-000 33-39-46 Main Housing
112616-000 33-39-46 Main Housing
4998770-001 33-39-46 Main Housing
113336-000 54-64 Main Housing
113339-000 54-64 Main Housing
113340-000 54-64 Main Housing
114237-000 54-64 Main Housing
Table 6.1 Motor Housing Subassembly
ITEM QTY. DESCRIPTION MODEL PART N0.
A1Dowel Pin 95904-100
B1Socket Pipe Plug (1/8-27) 95653-012
C1Case Drain Plug/O-ring 25090-012
D1Bearing Cup
4
A
B
C
D
33-39-46 103232-000
54-64 103807-000
