Eaton 380 VCP-W 16 User Manual

I.B. 3A74792H08 Page 47
Effective 09/2014
SECTION 7: RENEWAL PARTS
7-1 GENERAL
In order to minimize production downtime, it is
recommended that an adequate quantity of spare parts
be carried in stock. The quantity will vary from customer
to customer, depending upon the service severity and
continuity requirements. Each customer should develop
his own stock level based on operating experience. Refer
to Table 7.1 for guidance.
7-1.1 ORDERING INSTRUCTIONS
a. Always specify the breaker rating information
and shop order number.
b. Describe the item, give the style number,
and specify the quantity required.
c. Specify the voltage for electrical
components.
d. Specify the method of shipping desired
e. Send all orders or correspondence to the
nearest Eaton sales office
.

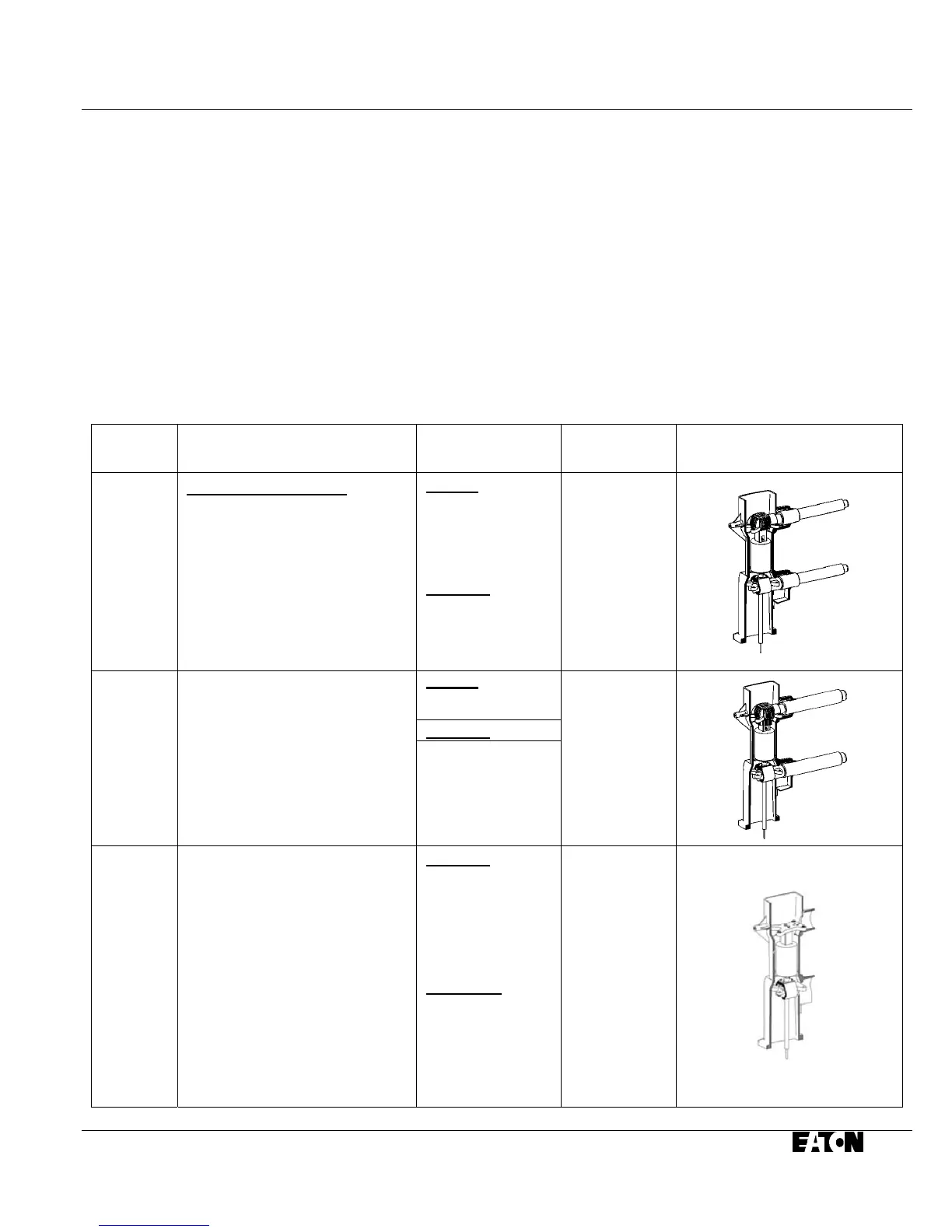

Table 7.1 Recommended Renewal Parts for ANSI Rated Breakers (Continued Next Page)
LINE
NO.
DESCRIPTION
STYLE NUMBER
VCP-W/WR AND
VCP-WC/WRC
QTY
Interrupter Assembly
VCP-W
1
2
3
380/16, 600A - 16kA
380/16, 1200A - 16kA
380/16, 1600A - 16kA
3A74837H01
3A74838H01
3A74839H01
3
3
3
VCP-WC
1A
2A
3A
380/16, 600A - 16kA
380/16, 1200A - 16kA
380/16, 1600A - 16kA
3A74694H01
3A74694H02
3A74694H03
3
3
3
VCP-W
4
380/16, 2000A - 16kA 3A74840H01 3
VCP-WC
4A
380/16, 2000A - 1 6kA 3A74694H04 3
VCP-WR
5
6
7
8
380/16, 600A - 16kA
380/16, 1200A - 16kA
380/16, 1600A - 16kA
380/16, 2000A - 16kA
3A74684H01
3A74684H02
3A74684H03
3A74684H04
3
3
3
3
VCP-WRC
5A
6A
7A
8A
380/16, 600A - 16kA
380/16, 1200A - 16kA
380/16, 1600A - 16kA
380/16, 2000A - 16kA
3A74694H11
3A74694H12
3A74694H13
3A74694H14
3
3
3
3
