Instruction Book
Effective: November 2017 Page 32
For more information visit: www.Eaton.com IB131016EN

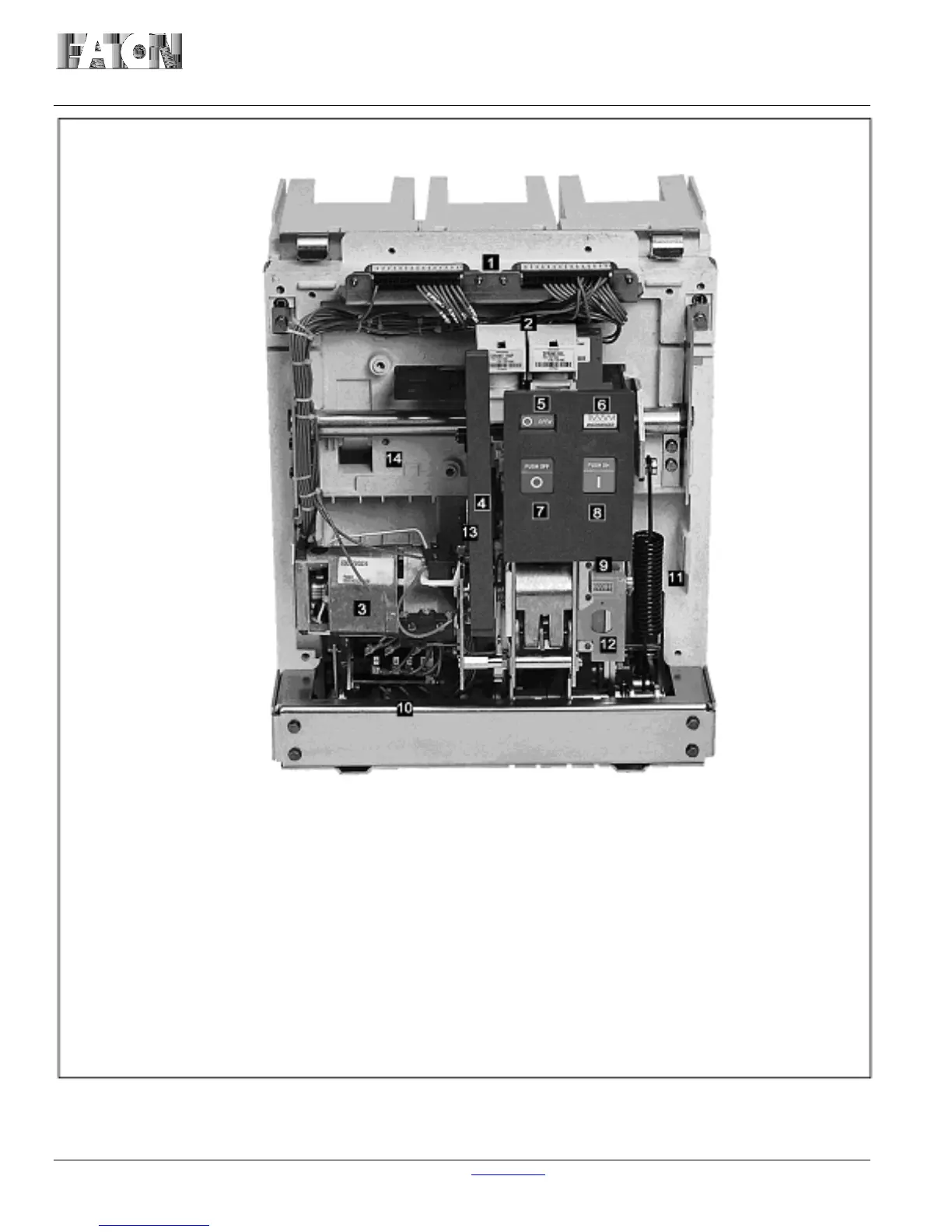

Figure 5-2 Typical T-VACR Fixed Non-Automatic Circuit Breaker (Front Cover Removed)
1. Secondary Wiring
2. Through-The-Window Accessories
3. Electric Charging Motor
4. Manual Charging Handle
5. Contact Status (Open-Close)
6. Spring Status (Charged-
Discharged)
7. Manual “OFF” Pushbutton
8. Manual “ON” Pushbutton
9. Operations Counter
10. 5A/5B Auxiliary Switch
11. Opening Spring
12. OFF Key Lock Location
13. Motor Cutoff Switch
14. Trip Unit Location
