Eaton 50 VCP-TR16 User Manual

Instruction Book
Effective: November 2017 Page 48
For more information visit: www.Eaton.com IB131016EN

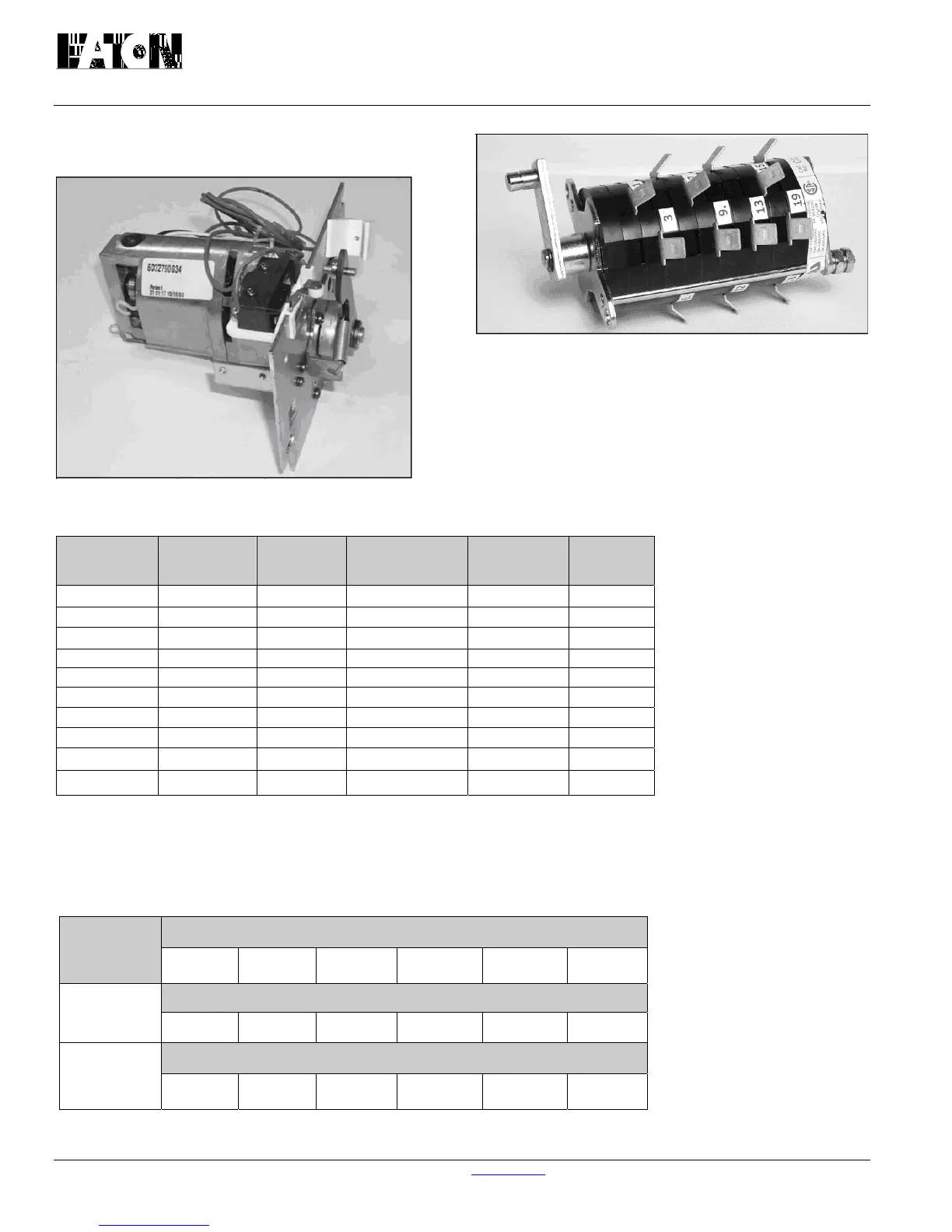

Figure 5-25 Rugged Motor Operator Kit
Figure 5-26 Auxiliary Switch
Table 5.6 Motor Operator Ratings
Control
Voltages
Operational
Voltage Range
Running
Current
Inrush
Current
Power
Consumption
Charging
Time
24 Vdc 20-27 8 Amperes 400% of Running 250 VA 5 sec
48 Vdc 41-53 4 Amperes 400% of Running 250 VA 5 sec
110 Vdc 94 - 121 3 Amperes 400% of Running 250 VA 5 sec
125 Vdc 106 - 138 3 Amperes 400% of Running 250 VA 5 sec
220 Vdc 187 - 242 2 Amperes 400% of Running 250 VA 5 sec
250 Vdc 213 - 275 2 Amperes 400% of Running 250 VA 5 sec
110 Vac 94 - 121 3 Amperes 400% of Running 250 VA 5 sec
120 Vac 102- 132 3 Amperes 400% of Running 250 VA 5 sec
220 Vac 187 - 242 2 Amperes 400% of Running 250 VA 5 sec
240 Vac 204 - 264
2 Amperes 400% of Running
250 VA 5 sec
Table 5.7 Auxiliary Switch Contacts Interrupting Capacities
Continuous
Current
(amperes)
Control Circuit Voltage
120 Vac 240 Vac 24 Vdc 48 Vdc 125 Vdc 250 Vdc
Non-inductive Circuit Interrupting Capacity in Amperes
20
15 10 16 16 10 5
20
Inductive Circuit Interrupting Capacity in Amperes
15 10 16 16 10 5
