OPERATION
Eaton 5125 Tower UPS (1000–2200 VA) User's Guide S 05147304 Rev C www.eaton.com/powerquality
31
Operating Modes
The Eaton 5125 front panel indicates the UPS status through the UPS
indicators. Figure 15 shows the UPS front panel indicators and controls.
Normal Mode Indicator (solid green)
Standby Mode Indicator (flashing green)
Buck Mode Indicator (solid green, solid red)
Boost 1 Mode Indicator (solid green, flashing red)
Boost 2 Mode Indicator (flashing green, solid red)
Red
On Button
Off Button
Test/Alarm Reset Button
Bar Graph Indicators
Battery Mode Indicator
Flashing
Unlit
Green
Indicator Legend

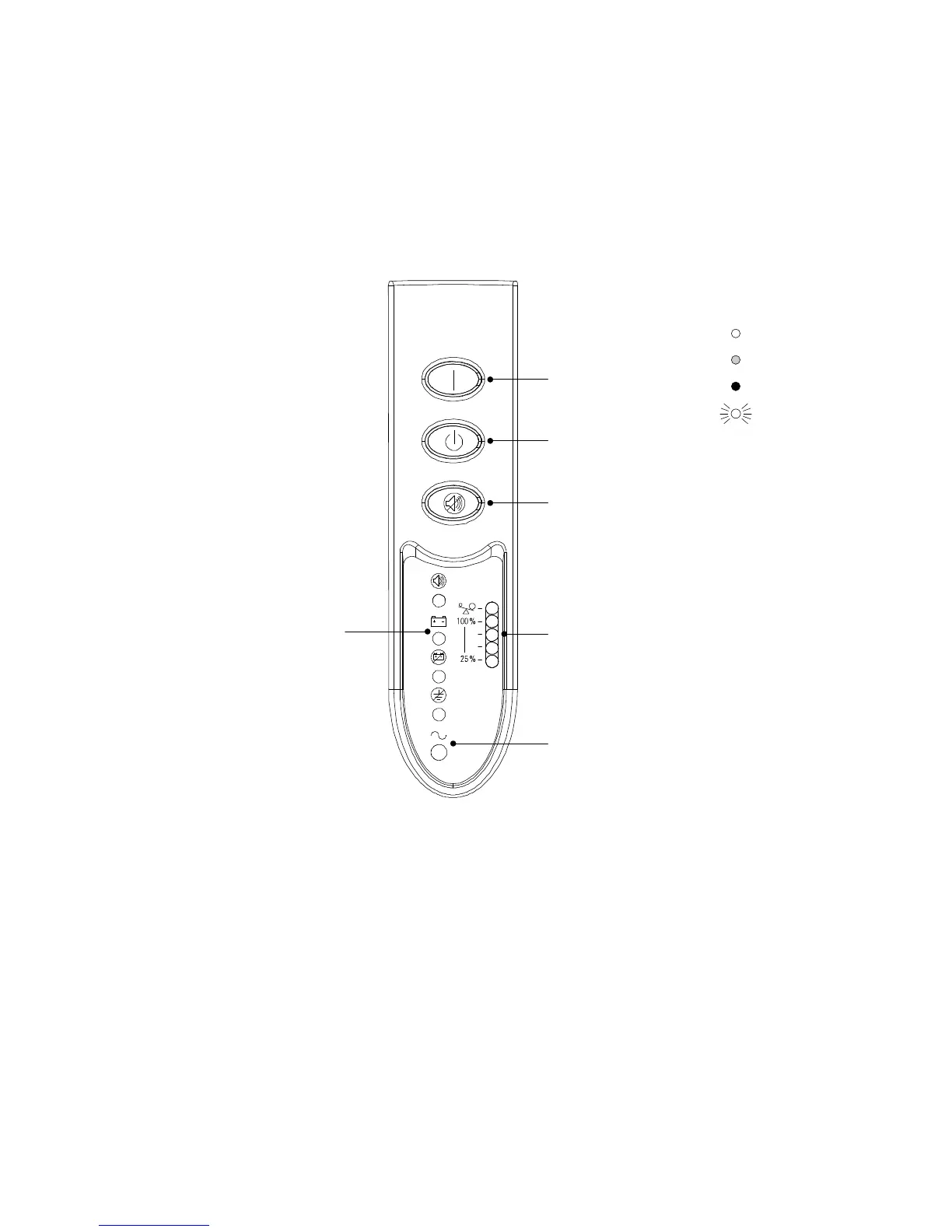

Figure 15. UPS Front Panel
