Load Segments
Load segments are sets of receptacles that can be controlled by power
management software, providing an orderly shutdown and startup of
your equipment. For example, during a power outage, you can keep key
pieces of equipment running while you turn off other equipment. This
feature allows you to save battery power. See your power management
software manual for details (refer to the Software Suite CD or
www.eaton.com/powerquality for the latest information).
NOTE If power management software is not used, the individual load segments cannot be
controlled.

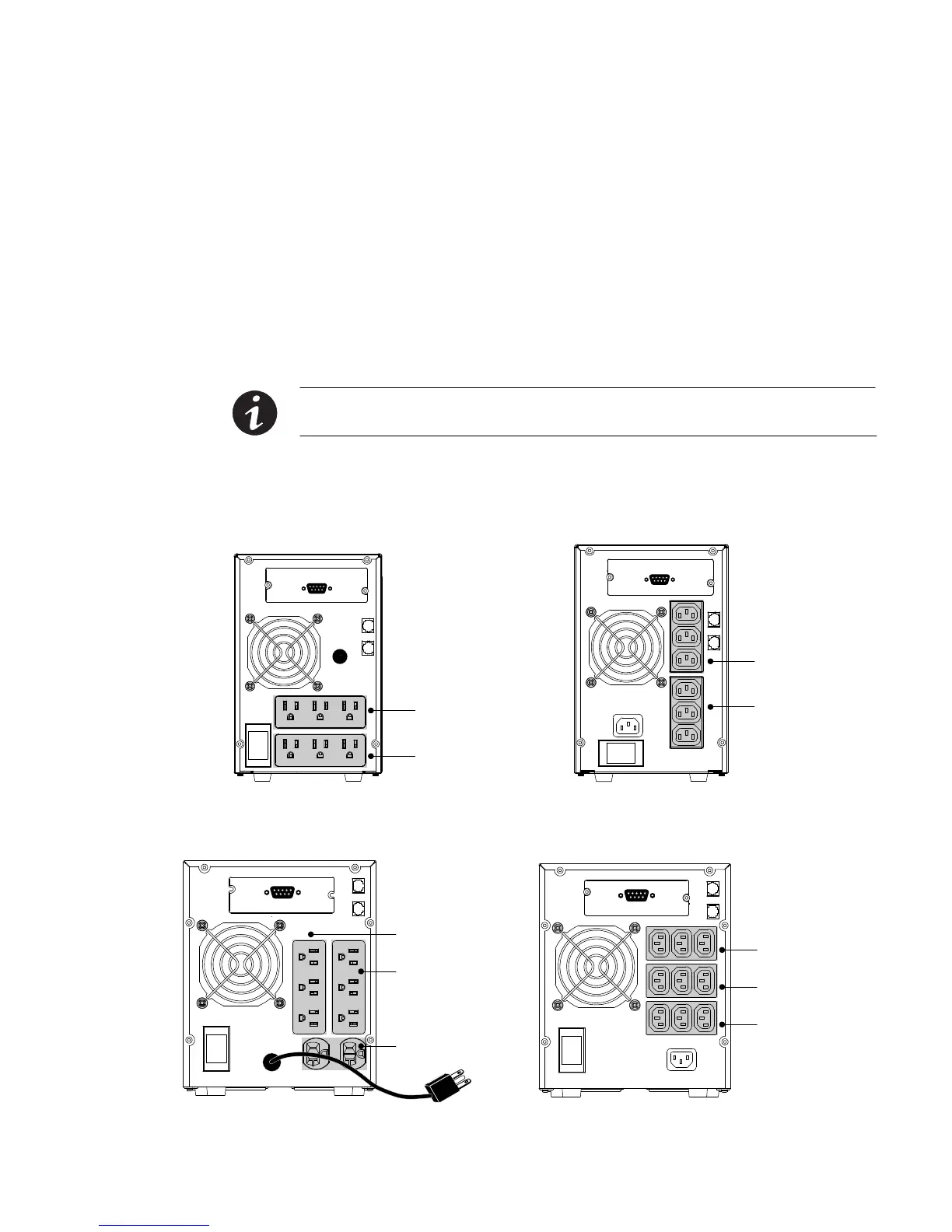

Each UPS has two or three load segments as shown in Figure 21 and
Figure 22.
Load Segment 1
Load Segment 2
230V Models
Load Segment 1
Load Segment 2
100V/120V Models
Figure 21. 1000 VA and 1500 VA Load Segments
Load Segment 1
Load Segment 2
Load Segment 3
Load Segment 1
Load Segment 2
Load Segment 3
100V/120V Models
208V/230V Models
Figure 22. 2200 VA Load Segments
