Eaton 9395XC User Manual

Eaton 9395XC UPS 1200kW/1200kVA, 1350kW/1350kVA or 1500kW/1500kVA 164001079—Rev 01 135
a. Remove the bottom screws securing each PM section front panel (see Figure 92). Lift the panel
straight up to remove it from the panel hanger bracket at the top of the cabinet.
b. On the inside of the PM front panels remove the screws securing the filters and retain the hardware
(see Figure 92).
c. Install the washed or new PM section filters with the retained hardware.
d. Reinstall the PM section front panels removed in Step a. and secure with the retained hardware.
e. Open the ISBM front door (see Figure 91).
f. Remove the screws securing the filters and retain the hardware (see Figure 92).
g. Install the washed or new ISBM section filter with the retained hardware.
h. Reinstall the PM section front panels removed in Step a. and secure with the retained hardware.
i. Close the ISBM front door and secure the latch.

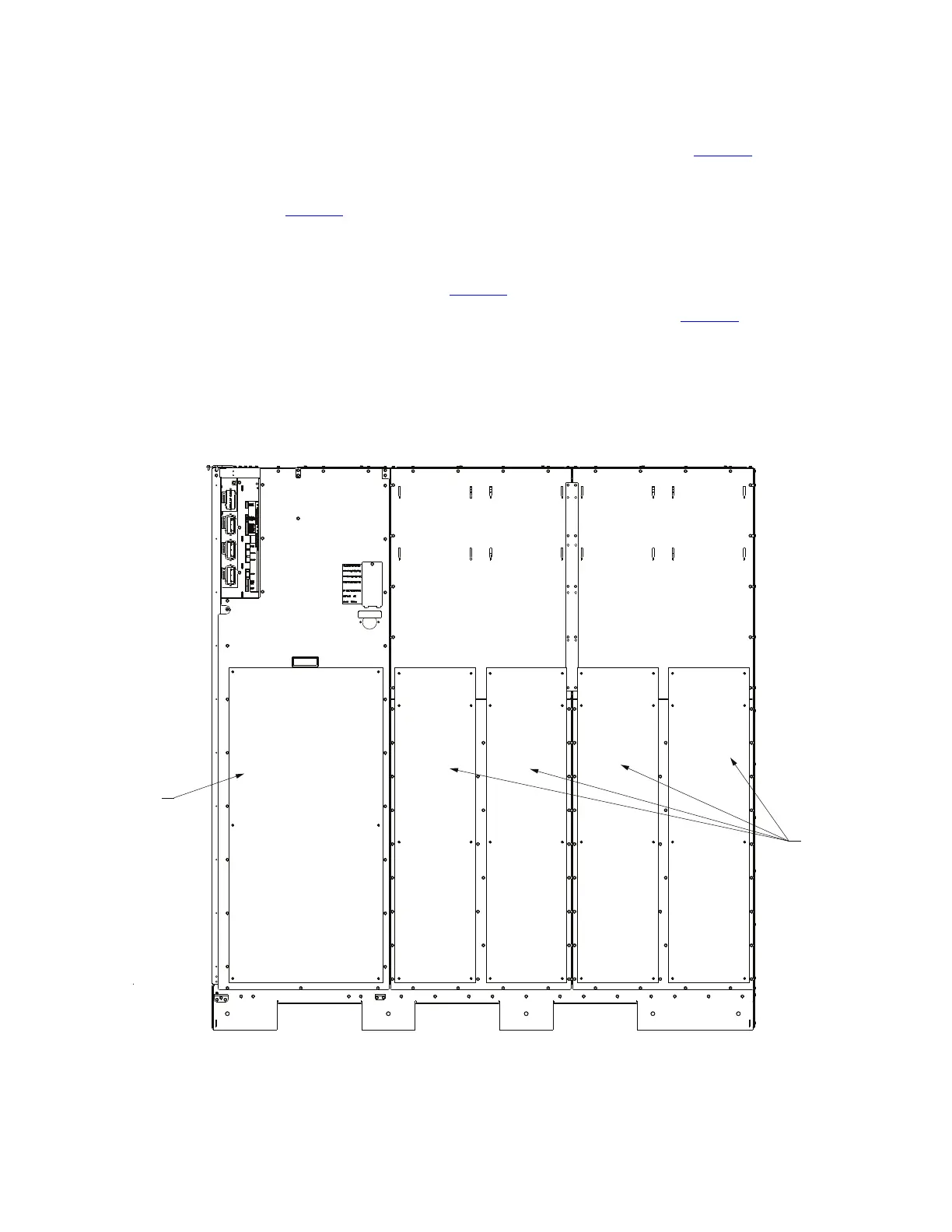

Figure 91. ISBM/PM Section Air Filter Locations
ISBM
Air Filter
PM Air Filters
UPS Maintenance
