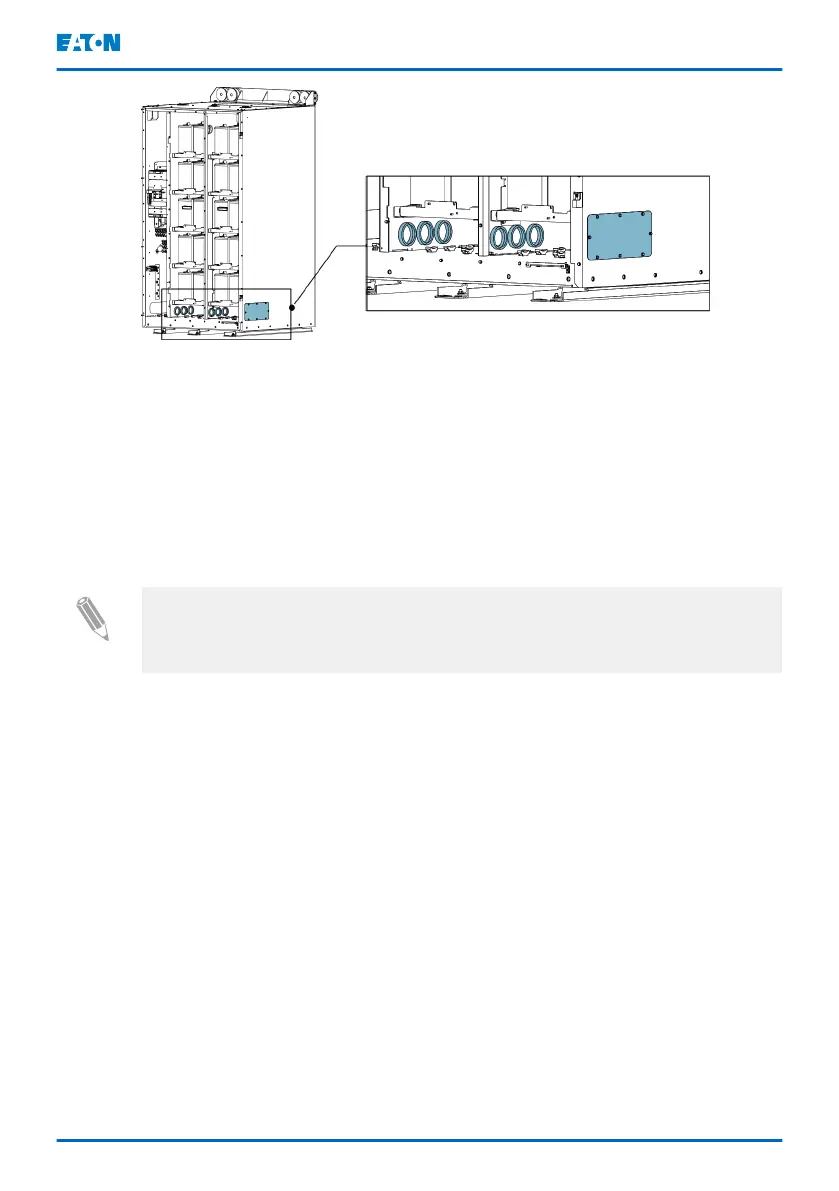

Figure 7. EBC-G cable entry holes 2

These through-holes are meant for installing several battery cabinets side by

side.

• Install the UPS and the first battery cabinet next to it on the right side of the

UPS.

• Install the second battery cabinet on the right side of the first battery cabinet

and use the wire ways shown in the figures above in the first EBC to lead to

the second EBC wiring and then to the UPS.

Note: If you choose to run the wiring through the side panels of the UPS and

battery cabinet, the battery cabinet must be located on the right side of the

UPS.

Eaton 9PHD Accessory Cabinets TFC-A, EBC-F

and EBC-G User's and installation guide
