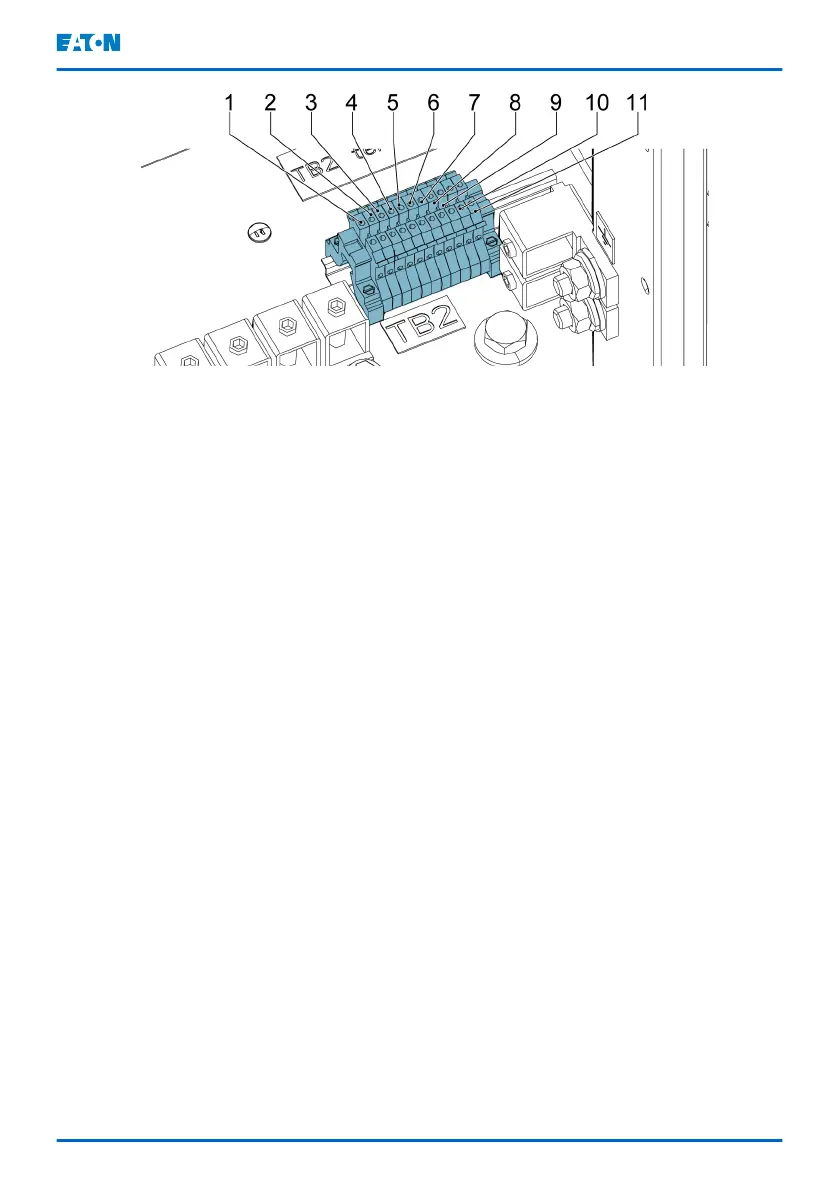

Figure 10. EBC-F terminal block TB2
1
+24V, battery shunt trip cable from UPS 7 DET, from another EBC if daisy-chained
2 TRIP, battery shunt trip cable from UPS 8 GND, from another EBC if daisy-chained
3 DET, battery shunt trip cable from UPS 9 No functions
4 GND, battery shunt trip cable from UPS 10 Temperature monitor 1
5 +24V, battery shunt trip cable from another
EBC if daisy-chained
11 Temperature monitor 2
6 TRIP, battery shunt trip cable from another
EBC if daisy-chained
Eaton 9PHD Accessory Cabinets TFC-A, EBC-F
and EBC-G User's and installation guide
©
Eaton Corporation plc 2022. All rights reserved. Document ID: P-164000538 37 (63)
