Eaton 9SX 8000 User Manual

Page 10
8-11kVA EU_EN
2. Presentation

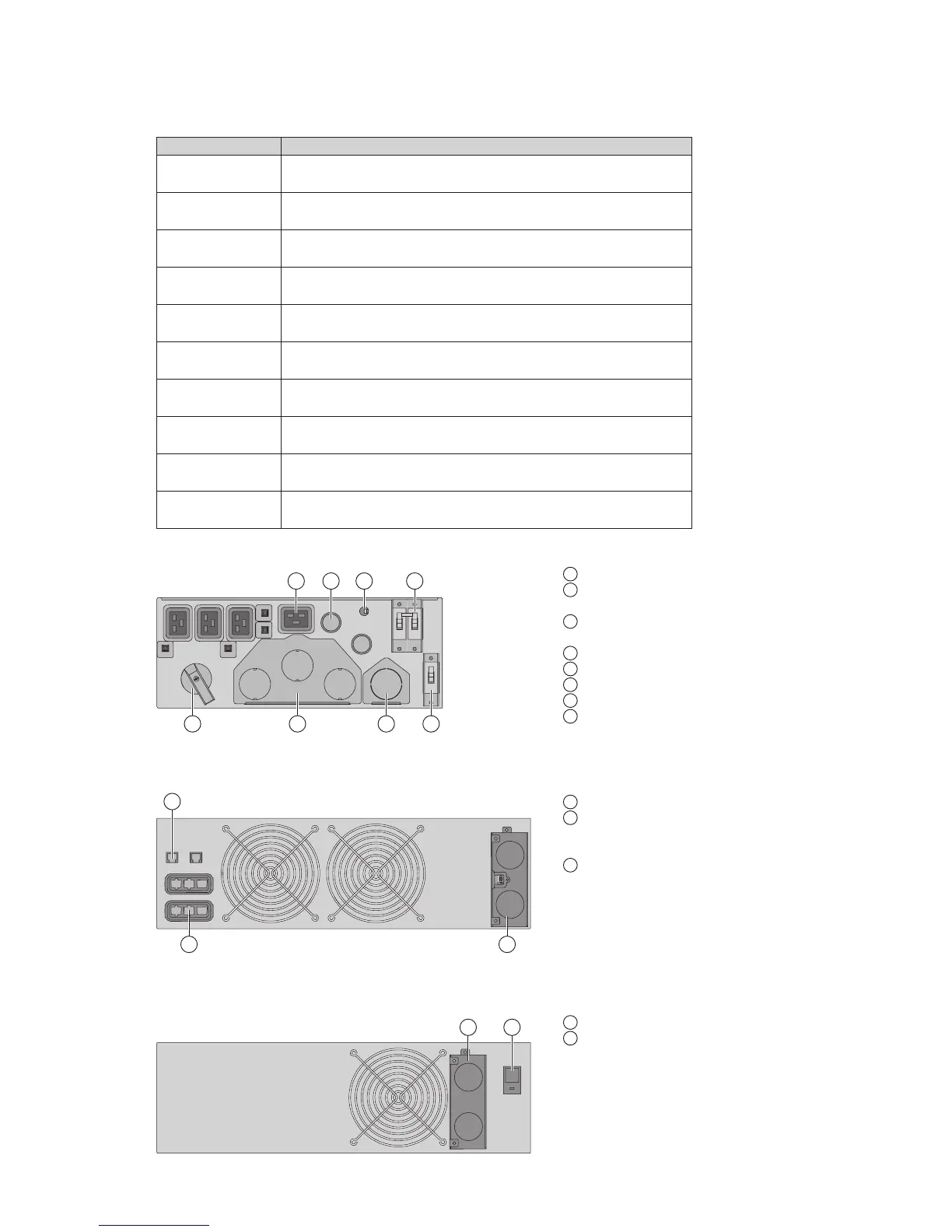

2.3 Accessories
Part number Description
9SXEBM240,
9PXEBM240
Extended Battery Module
9RK Rack kit 9PX
Network-MS Network card
Modbus-MS Modbus and network card
Relay-MS Relay card
MBP11Ki HotSwap MBP 11000i
SC240RT Supercharger 240VDC
TFMR11Ki Transformer 11000i
BINTSYS Battery Integration System
EBMCBL240 1.8m cable 240V EBM
MBP11Ki
8 2 6 4
3 517
1
Input/Output terminal blocks
2
Input/Output cables for connection to
the UPS
3
Bypass terminal blocks for connection
to the UPS
4
Normal AC source switch
5
Bypass AC source switch
6
Connector for HotSwap MBP detection
7
Manual Bypass switch
8
(4) 16A outlets
SC240RT
3
12
1
Input AC/Output DC terminal blocks
2
Connector for battery modules
(to the UPS and to the battery
modules)
3
Connector for automatic recognition
of the Supercharger (to the UPS and
to the battery modules)
TFMR11Ki
1 2
1
Input/Output terminal blocks
2
50A output circuit breaker
