2. Presentation
2.4 Control panel

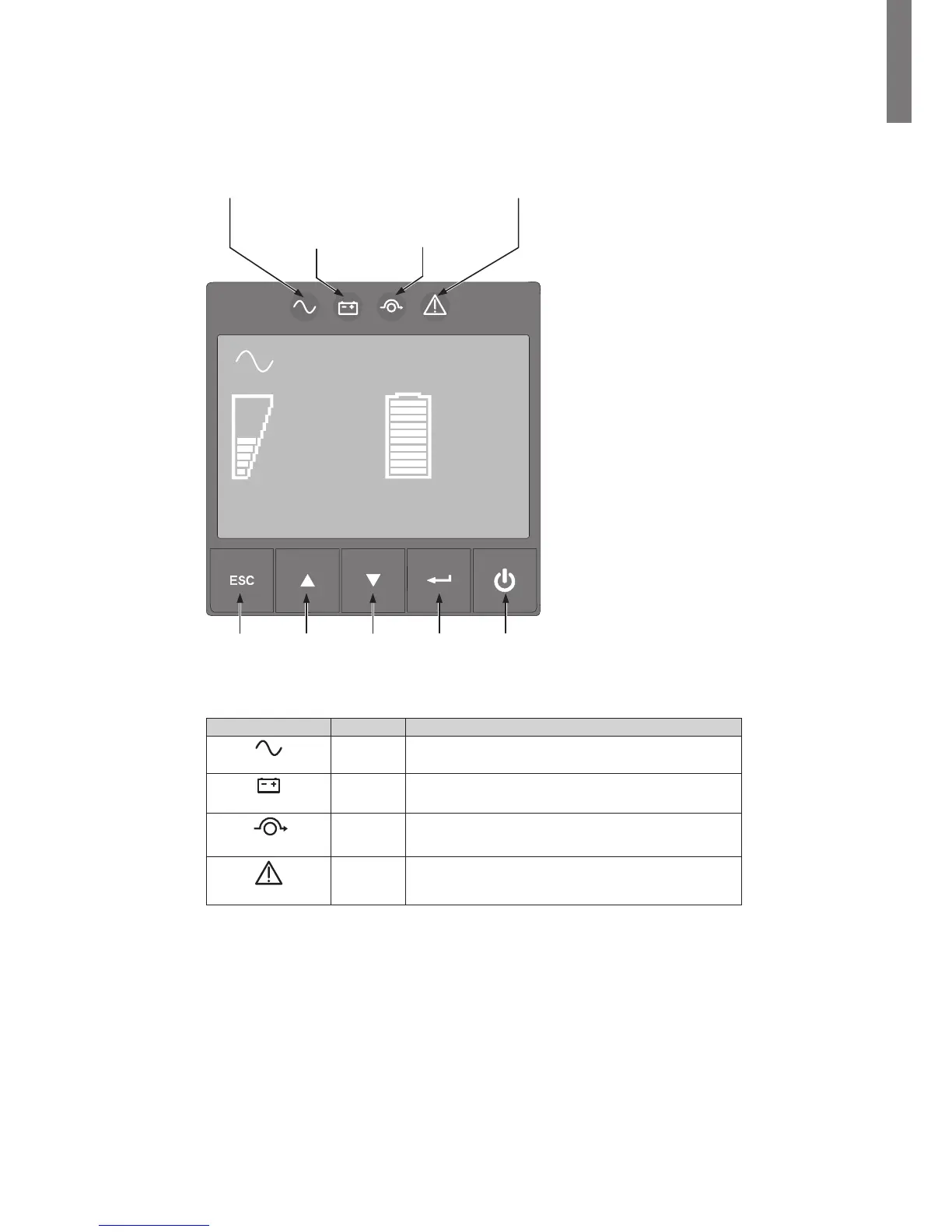

The UPS has a ve-button graphical LCD. It provides useful information about the UPS itself, load status,
events, measurements and settings.
Online mode
indicator (green)
Fault
indicator (red)
Online mode
100%
8min
1EBM
50%
5.0kW
5.5kVA
Efficiency: 95%
Escape Up Down Enter On/Off
button
Battery mode
indicator (orange)
Bypass mode
indicator (orange)
The following table shows the indicator status and description:
Indicator Status Description
Green
On
The UPS is operating normally on Online or on High
Efficiency mode.
Orange
On The UPS is on Battery mode.
Orange
On The UPS is on Bypass mode.
Red
On
The UPS has an active alarm or fault. See trouble-
shooting on page 38 for additional information.
