3.7 Rack installation
If you ordered other UPS accessories, refer to specific user manuals to check the rack installation
with the UPS.
Prepare EBM for rack mounting p
This step requires two people.
The Extended Battery Module is very heavy. To ease its rack mounting, you can remove the battery pack
from the EBM as explained below.

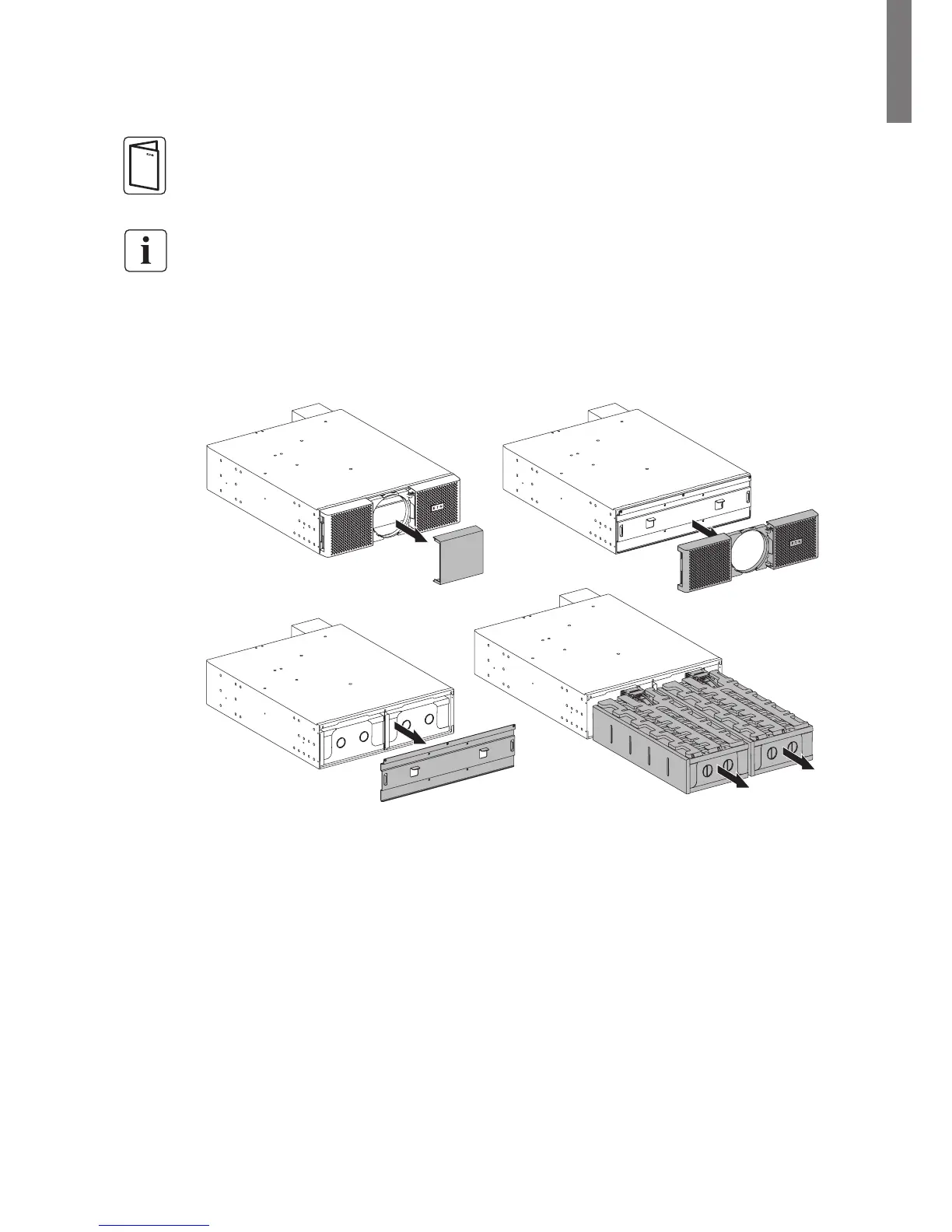

1. Remove the center cover of the front panel.
2. Remove the four screws to open the front panel.
3. Remove the three screws to pull out the metal protection cover of the battery.
4. Pull out the plastic handle of the left and right battery packs, and slide the packs out slowly on to a flat
and stable surface. Use two hands to support the battery packs. Set them aside for reinstalling after
that the EBM is rack mounted.
5. Mount the EBM on rack.
6. Put back the battery packs, screw back the metal protection cover and the front panel,
then clip the center cover.
3. Installation
