Eaton EX 700 User Manual

6. Appendices

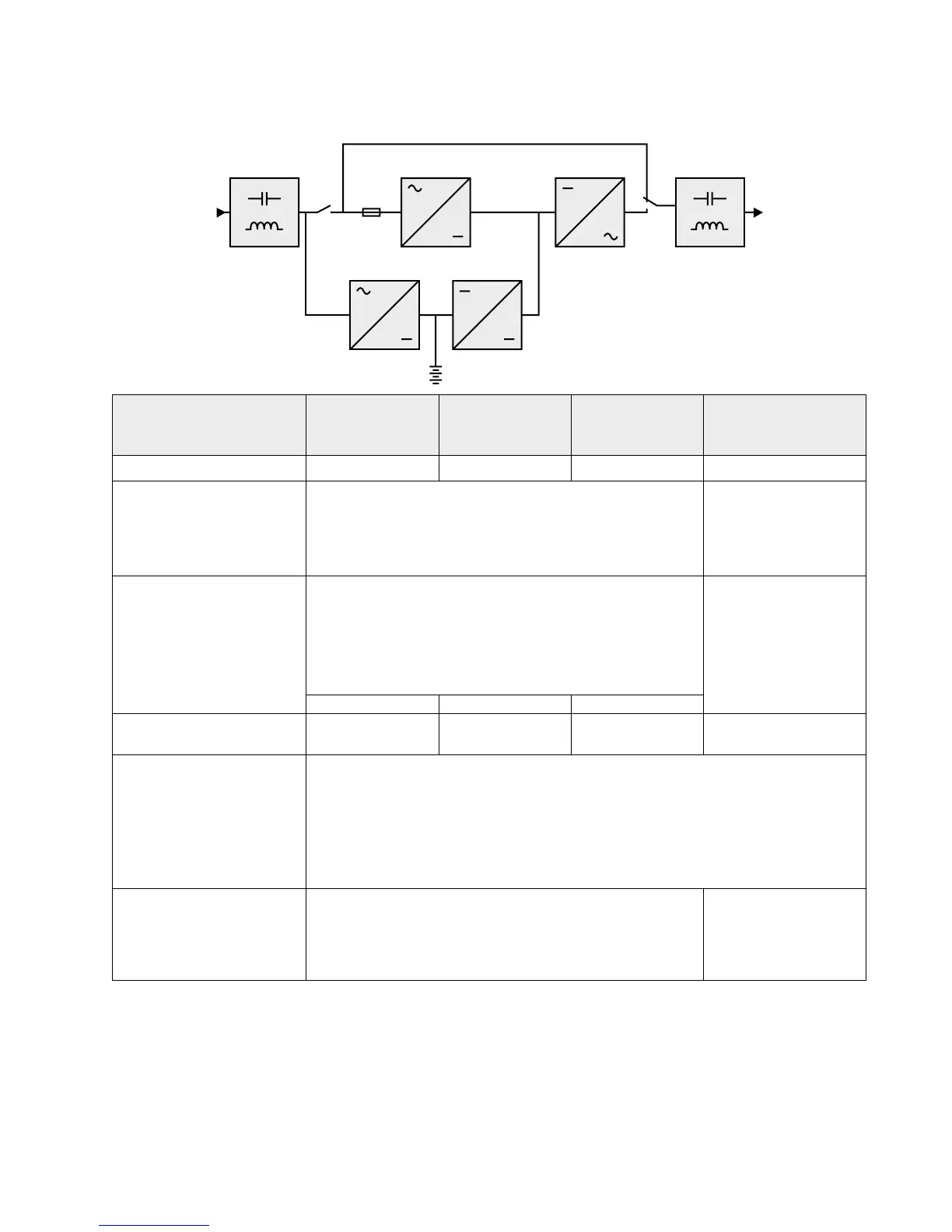

6.1 Technical Specifications
(1) EXB Module for EX 1000 and EX 1500
(2) EXB RT2U Module for EX 1000 RT2U and EX 1500 RT2U.
(3) 900W, in standard configuration, 800W with at least 1 EXB connected
(4) 1290W in standard configuration, 1200W with at least 1 EXB connected
(5) Values for 33% / 66% / 100% of nominal power rating
(6) Adjustable from 100V to 127V using the UPS Config software
(7) Frequency-converter mode is programmable using the UPS Config software
(8) Nominal, for 120V output voltage
86-86700-00EN A02 - Page 27
EX 700
EX 1000
EX 1000 RT2U
EX 1500
EX 1500 RT2U
EX EXB 1000/1500
(1)
EX EXB 1000/1500 RT2U
(2)
Output power 700 VA / 630W 1000 VA /900 W
(3)
1500 VA /1290 W
(4)
AC input power
w Input voltage range
w Nominal input voltage
w Frequency
w Power factor
Single phase 60 / 70 / 80 V to 142 V
(5)
120 V
50/60 Hz autoselect
> 0.95
Load output
w Voltage
w Frequency
w Harmonic distortion
w Overload capacity
w Current
Single phase 120 V ±3%
(6)
50/60 Hz ±0.5%
(7)
< 4% for linear load, < 6% for nonlinear load
102% continuous, 130% 12s, > 130% 2s
5.8 A
(8)
8.3 A
(8)
12.5 A
(8)
Battery, sealed lead acid, main-
tenance free
2x12 V – 7Ah 3x12 V – 7Ah 3x12 V – 9Ah
Two string of
3x12 V -9 Ah
Environment
w Operating temperature range
w Relative humidity
w Leakage current
w Storage temperature range
w Altitude
0°C to 40°C
20% to 90% (without condensation)
< 1.1mA
-25°C to 40°C
1000 m
Standards and certification
w Safety
w EMC
w Surge suppressor
UL 1778 (4th edition), CSA C22.2 No 107.3-05
FCC Subpart B, class A
IEEE/ANSI 62.41

Eaton EX 700 Specifications

General

Noise level	45 dB
Output power	630 W
Input frequency	40/70 Hz
Output power capacity	0.7 kVA
Input operation voltage (max)	284 V
Input operation voltage (min)	100 V
Output operation voltage (max)	250 V
Output operation voltage (min)	200 V
Power plug	C14 coupler
AC outlet types	C13 coupler
AC outlets quantity	6 AC outlet(s)
USB 2.0 ports quantity	1
Safety	IEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD)
Form factor	Tower
Product color	Gray
LED indicators	Yes
Typical backup time at full load	- min
Typical backup time at half load	16 min
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	440 mm
Width	153 mm
Height	242 mm
Weight	12500 g
