Eaton MX 5000 RT User Manual

34008030EN/AD - Page 8
1. Presentation

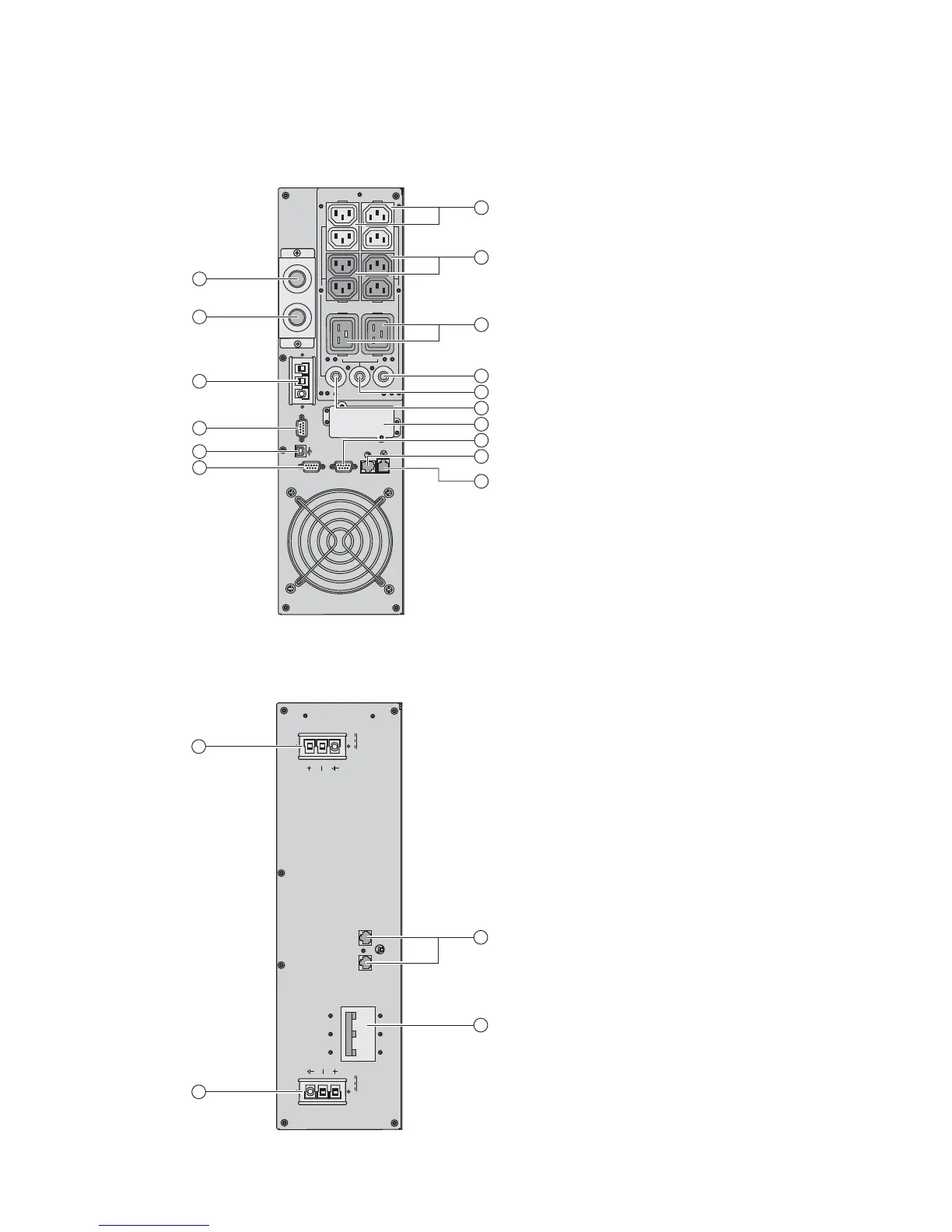

1.2 Rear panels
MX 4000 RT / 5000 RT
MX EXB RT (optional battery module)
(1) Two groups of 2 programmable (10A)
outlets for connection of equipment
(2) Groups of 4 (10A) outlets for
connection of equipment
(3) Groups of 2 (16A) outlets for
connection of equipment
(4) 12A thermal switch
(5) 20A thermal switch
(6) 12A thermal switch
(7) Output terminal block
(8) Normal AC source terminal block
(9) Connector for additional battery
module
(10) Slot for optional communication card
(11) Connector for parallel operation
(12) USB communication port
(13) RS232 communication port
(14) Communication port by relay
(15) Connector for automatic detection of
battery module(s)
(16) Connector for Remote Power Off
control (RPO)
(17) Connectors for automatic detection of
battery module(s)
(18) Connectors for battery modules (to
the UPS or to the other battery modules)
(19) Battery circuit breaker
RS232 CONTACTS
BATTERY
DETECTION
RPO
PARALLEL
SWITCHED
GROUP 2
SWITCHED
GROUP 1
1
2
3
4
5
6
7
8
9
11
12
13
10
14
16
15
BATTERY BREAKER 50Adc
BATTERY CONNECTOR 180Vdc
BATTERY CONNECTOR 180Vdc
17
18
18
19
FOR BATTERY
DETECTION
ONLY
