34008030EN/AD - Page 9
1. Presentation

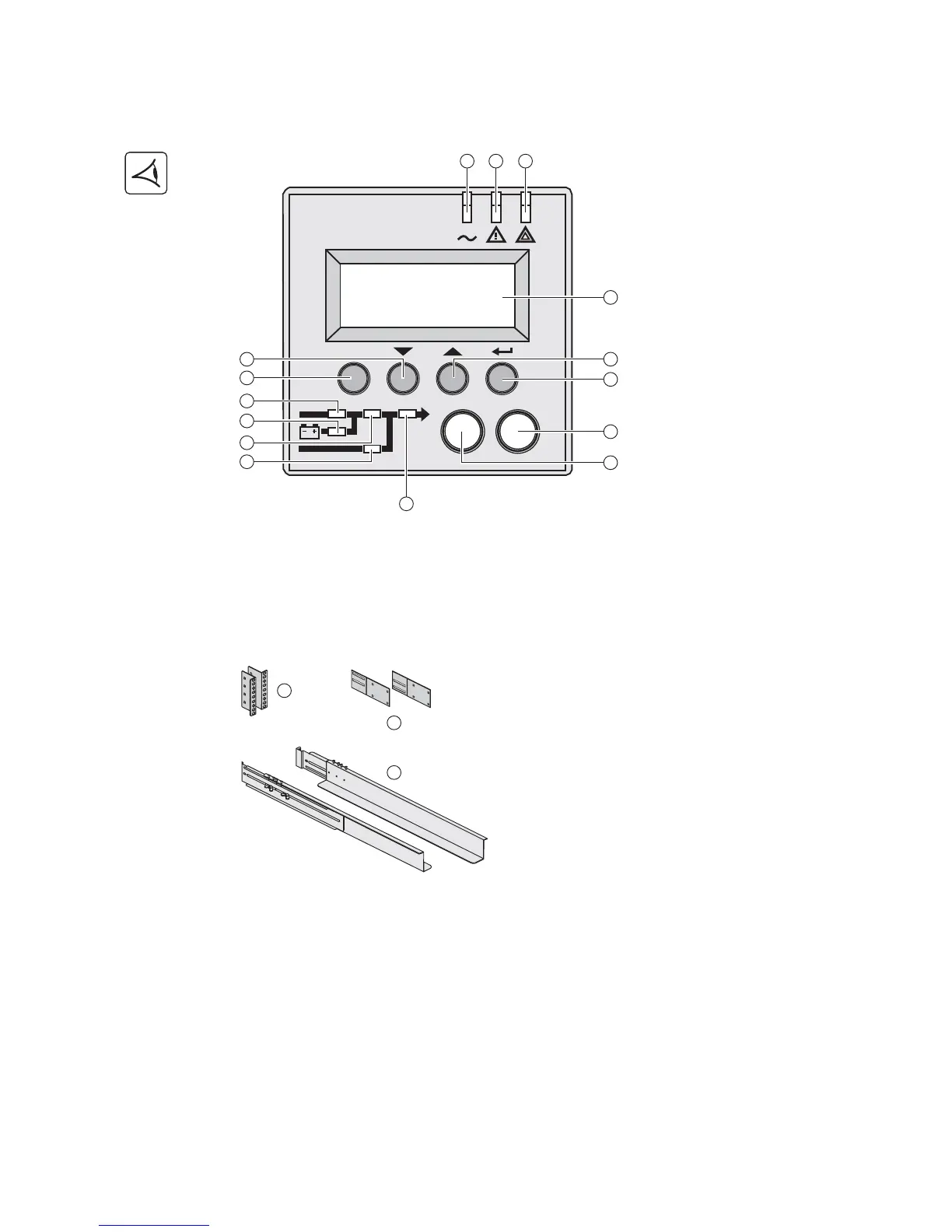

1.3 Display and control panel
1.4 Options
Rack mounting kit
(20) Load protected LED
(21) Downgraded operation LED
(22) Load not protected LED
(23) Alphanumeric display
(24) Escape (cancel) button
(25) (26) Function buttons
(scroll down / scroll up)
(27) Enter (confirm) button
(28) UPS OFF button
(29) UPS ON button
(30) Rectifier LED
(31) Battery LED
(32) Inverter LED
(33) Bypass LED
(34) Load powered LED
Telescopic rails for MX RT mounting in 19’’ enclosure with mounting hardware (part number 68002)
(35) Ear hangup
(36) Rear bracket system for
transportation
(37) Telescopic rails, 639 mm to 1005 mm
length (27.36’’ to 39.96’’)
