Echo SRM-222ES User Manual

10
Before you start

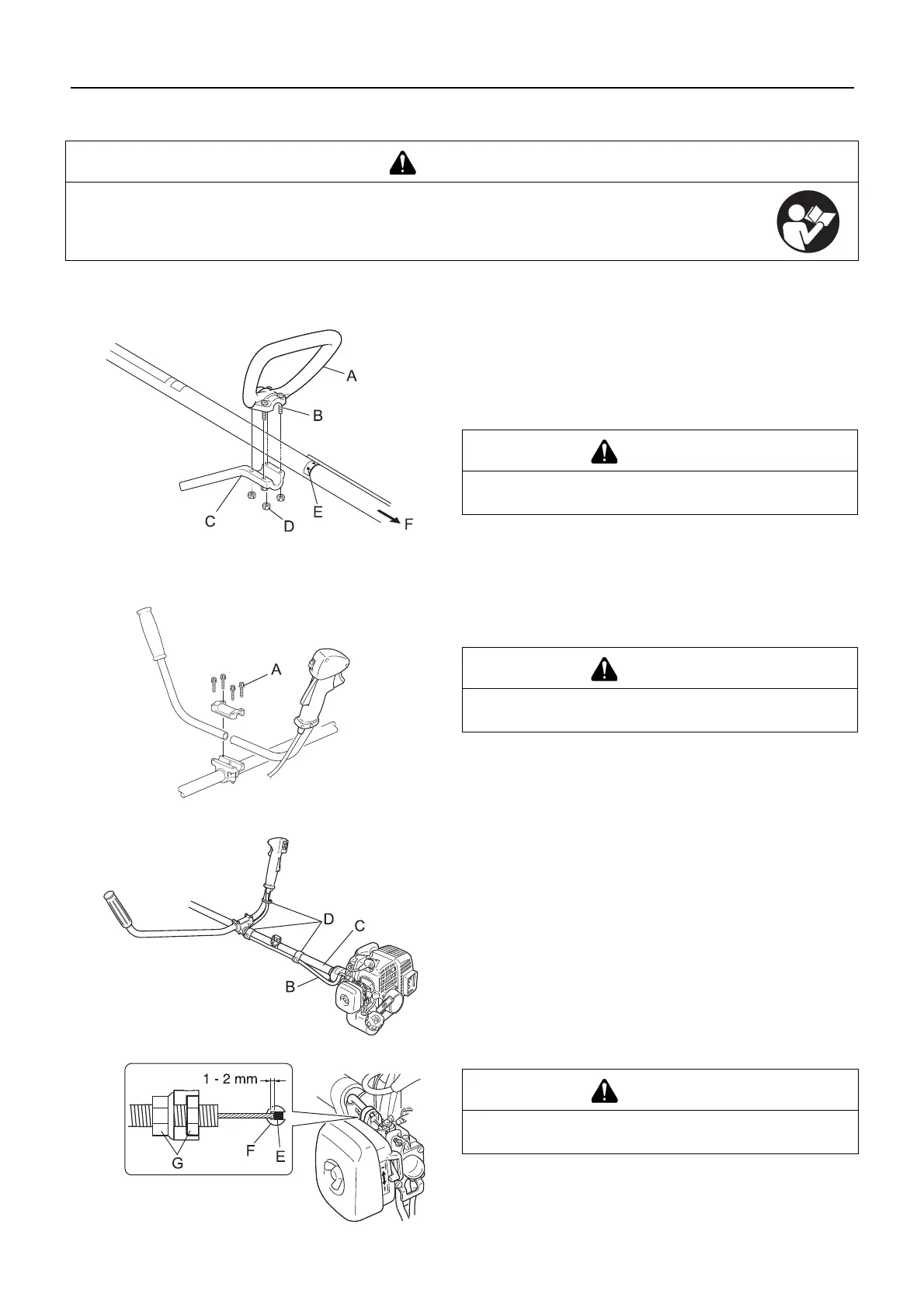

Assembly
Loop handle version
Loop handle assembly
Assemble loop handle (A) and bracket (C) to drive shaft assem-
bly.
Position handle in comfortable operating position and tighten
Bolts (B).
U-handle version
U-handle assembly
1. Loosen handle bar support bolts (A).
2. Locate handle bar in a comfortable operating position and
tighten 4 bolts (M5×25).
3. To eliminate loosening of throttle wire (B) fix it to shaft tube
(2 places) (C) and to right hand U-handle (1 place) with wire
fixing clips (D).
G: Nuts
WARNING
 Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
E: Arrow F: To engine
CAUTION
 Install the handle so that it does not hide any of the
safety decals.
CAUTION
 Install the handle so that it does not hide any of the
safety decals.
CAUTION
After assembly, adjust the play of wire end (E) on carburet-
tor (F) side to 1 mm - 2 mm.

Echo SRM-222ES Specifications

General

Brand	Echo
Model	SRM-222ES
Category	Trimmer
Language	English
