Ecolab SCLS IV User Manual

3.3 Plumbing
1. Cut the 1/4” white tubing which supplies water to the detergent valve approximately 3” before the
detergent valve as shown in Figure 3-3.
2. Insert a tube insert into each end of the 1/4” white tubing just cut and insert the tube ends into the T
connector.
3. Feed the 1/4” white tubing from the SCLS IV/AQUANOMIC EU IV cabinet through the top hole on the left
side of the SCLS IV/AQUANOMIC EU IV cabinet.
4. Connect this 1/4” white tubing into the T connector.
VACUUM
BREAKER
DETERGENT
VA LV E
4TH PRODUCT
T
CONNECTOR
PRODUCT
SUMP
SUMP
VA LV E
SOUR/SOFTENER
VA LV E
FLUSH
VA LV E
BLEACH
VALVE
TUBE
INSERTS
CUT 1/4”
WHITE
TUBING
SCLS IV/
AQUANOMIC EU IV
CABINET
SCLS/
AQUANOMIC EU
CABINET

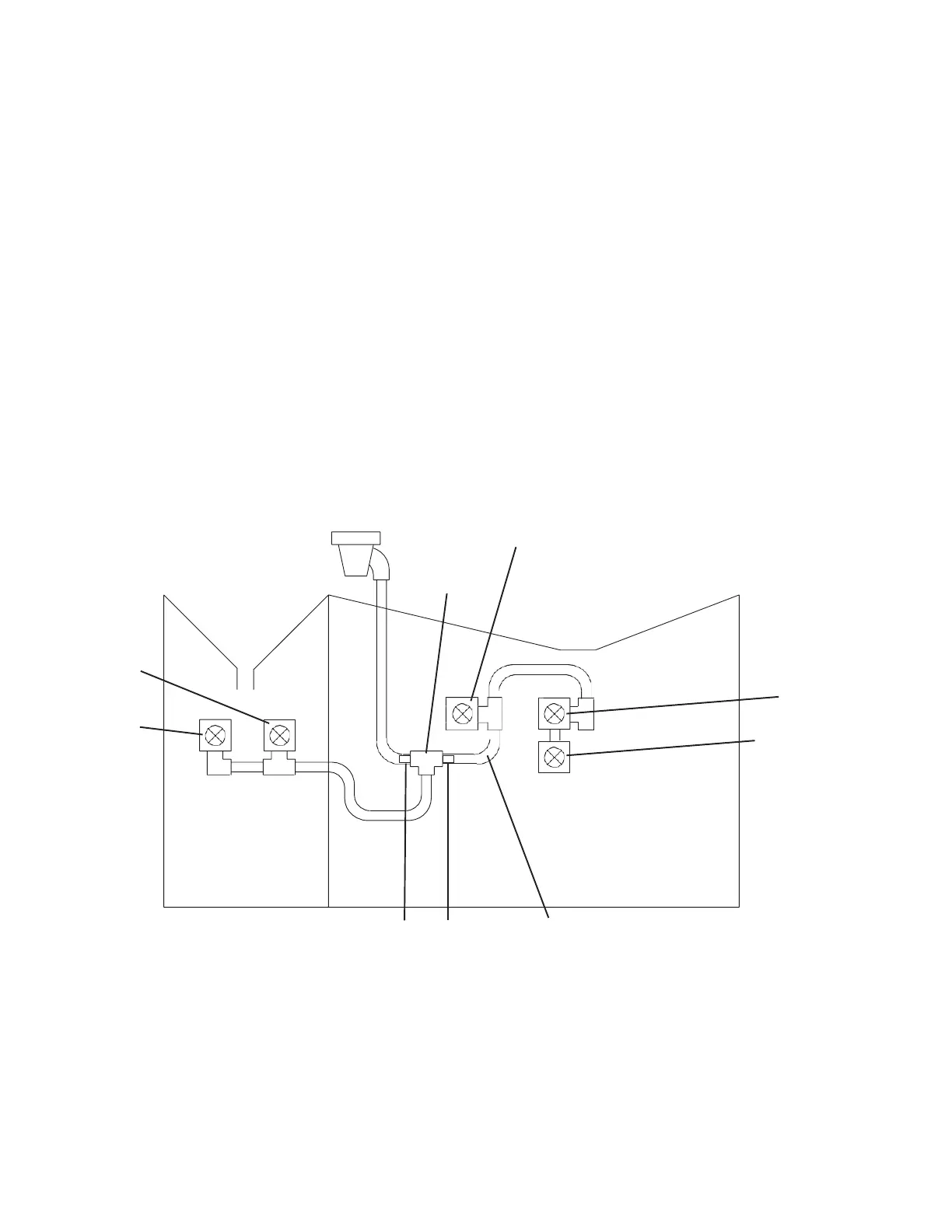

Figure 3-3

Ecolab SCLS IV Specifications

General

Brand	Ecolab
Model	SCLS IV
Category	Dispenser
Language	English
