Ecolab SCLS IV User Manual

3.1 System Installation
3.2 Installation Procedure
1. Remove the protective label from the SCLS/AQUANOMIC EU cabinet’s left hand side. The label needs to be
removed in order to run the electrical and hydraulic service between the dispensers.
2. If the SCLS/AQUANOMIC EU has already been installed remove the cabinet from the wall per the
following instructions.
a. Unplug the cabinet.
b. Disconnect the communications cables.
c. Turn off the water supply.
d. Disconnect the product delivery tubing.
e. Remove the overflow hose.
f. Remove the solid products.
g. Remove Cabinet from the wall.
3.1.1 Mounting the dispenser.

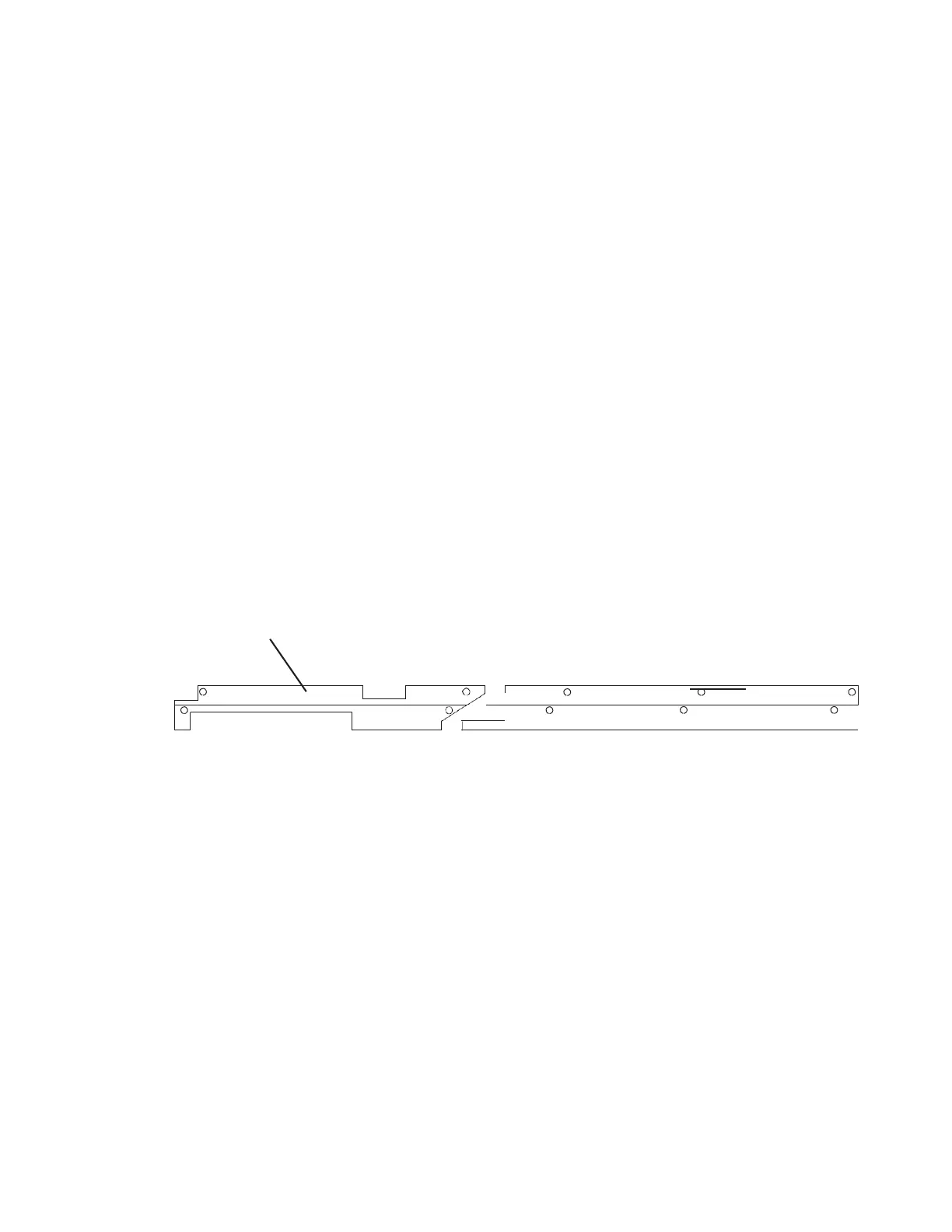

1. Install the mounting brackets according to Figure 3-1 below.
SCLS IV/AQUANOMIC EU IV Module Bracket
SCLS/AQUANOMIC EU Bracket
2. Hang cabinets on the brackets with the SCLS IV/AQUANOMIC EU IV to the left of the
SCLS/AQUANOMIC EU cabinet.
Figure 3-1
NOTE: Remove the protective label from the left side of the SCLS/Aquanomic EU cabinet prior to
hanging the cabinets.
