7.1 Replacement Parts

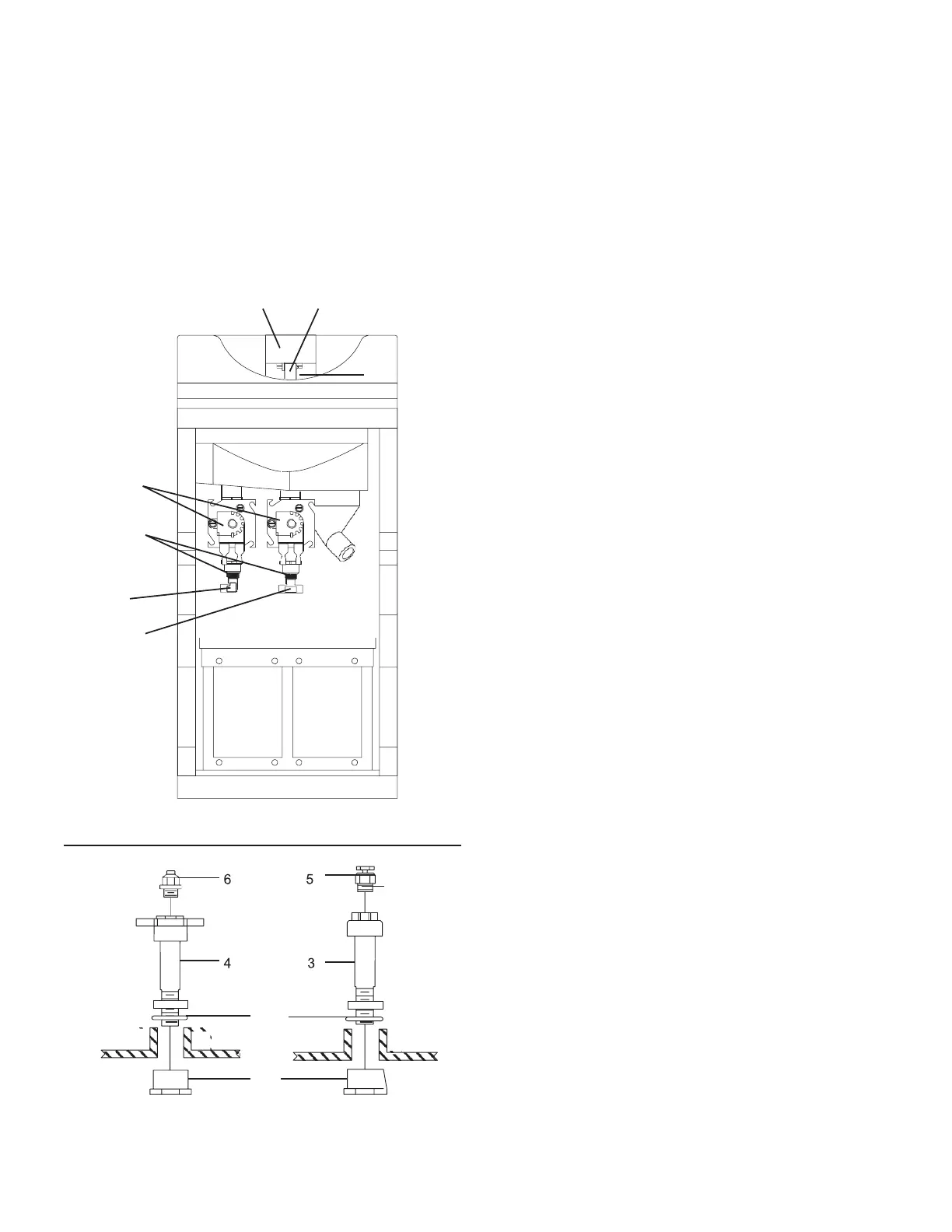

SCLS IV/AQUANOMIC EU IV DISPENSING MODULE
1 2 11
SUMP & CABINET
REF.
NO.PART NO.DESCRIPTION
9
12
10
13, 14
• PART NOT SHOWN
7
8
SPRAY TUBE DETAIL FLUSH TUBE DETAIL
SCLS IV/AQUANOMIC EU IV Dispensing Module Installation & Operation Manual
7-1
1
9252-0634
COVER ASSEMBLY
2
8305-1136
PROXIMITY SWITCH
3
9258-2592
FLUSH SPRAY TUBE
4
9259-2640
PRODUCT SPRAY TUBE
5
8531-2718
FLUSH NOZZLE 180° SPRAY SST
6
8531-2502
PRODUCT NOZZLE 67° KYNAR
7
8720-6165
O-RING EPDM
8
9258-2600
SPRAY TUBE NUT
9
9204-2050
COIL, 24 VAC
10
8563-5795
ELBOW, 3/8T X 1/4MNPT
11
9258-4184
DETENT SWITCH BRACKET
12
8614-9127
BUSHING REDUCER
13
8554-5051
TEE, 3/8T X 3/8T X 1/4MNPT
14
9321-2135
TEE, 3/8T X 3/8T X 3/8T
•
9258-1005
DRAIN TUBE ASSEMBLY
•
9258-4291
LOCKOUT & SUMP LUGS
