ECS A780GM-A User Manual

17
Installing the Motherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:

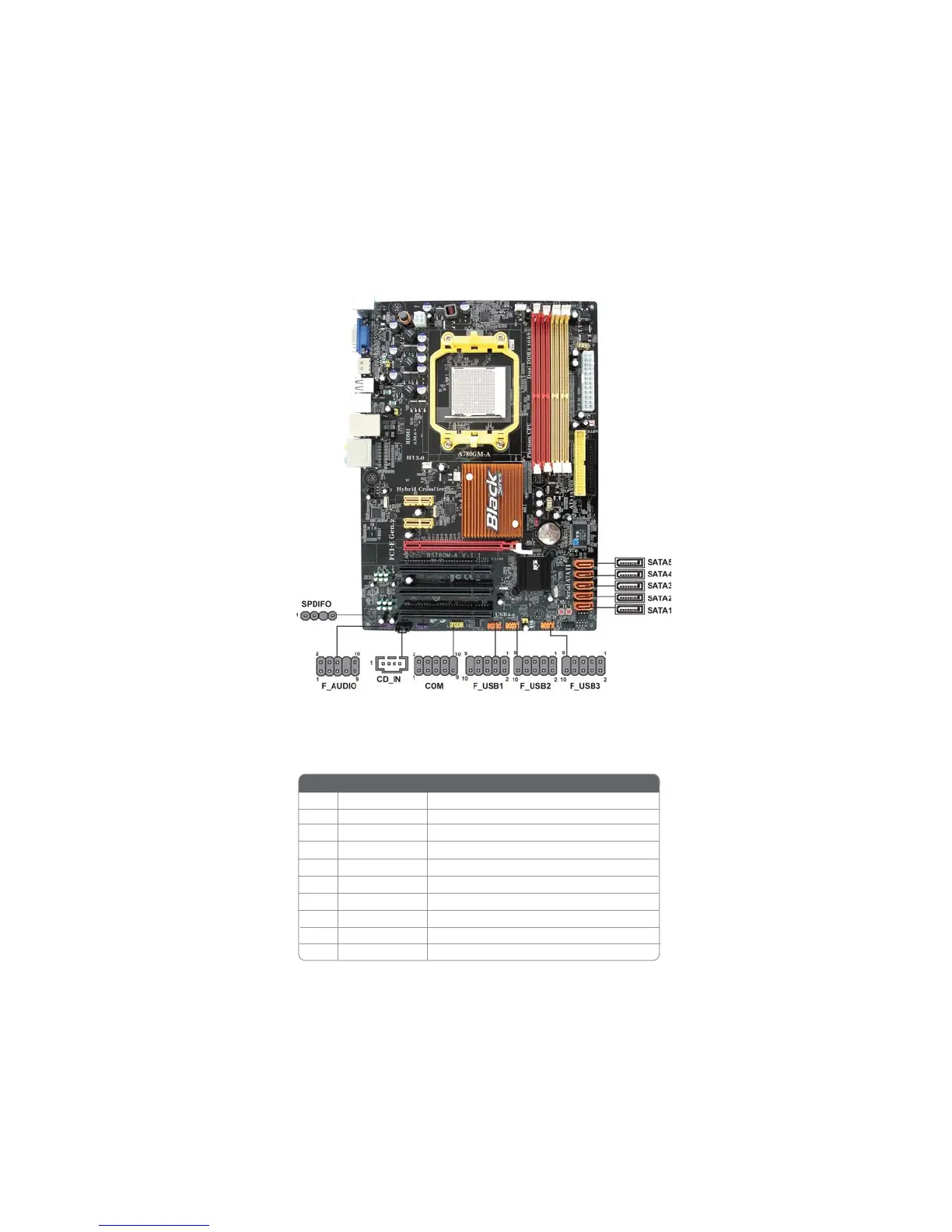

COM: Onboard serial port header
Connect a serial port extension bracket to this header to add a second serial port to
your system.
1 DCDB Data Carrier Detect
2 SINB Serial Input
3 SOUTB UART B Serial Output
4 DTRB UART B Data Terminal Ready
5 GND Ground
6 DSRB Data Set Ready
7 RTSB RART B Request to Send
8 CTSB Clear to Send
9 RI Ring Indicator
10 Key No pin
Pin Signal Name Function

ECS A780GM-A Specifications

General

Internal memory	32 GB
Number of memory slots	4
Processor socket	Socket AM2
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of COM connectors	1
Number of SATA connectors	5
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Motherboard chipset	AMD 780G
Motherboard form factor	ATX
BIOS type	AMI
PCI Express x1 slots	2
Maximum graphics card memory	1920 MB
Controller interface type	AMD SB700
RAID levels	0, 1
