Installing the Motherboard

Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

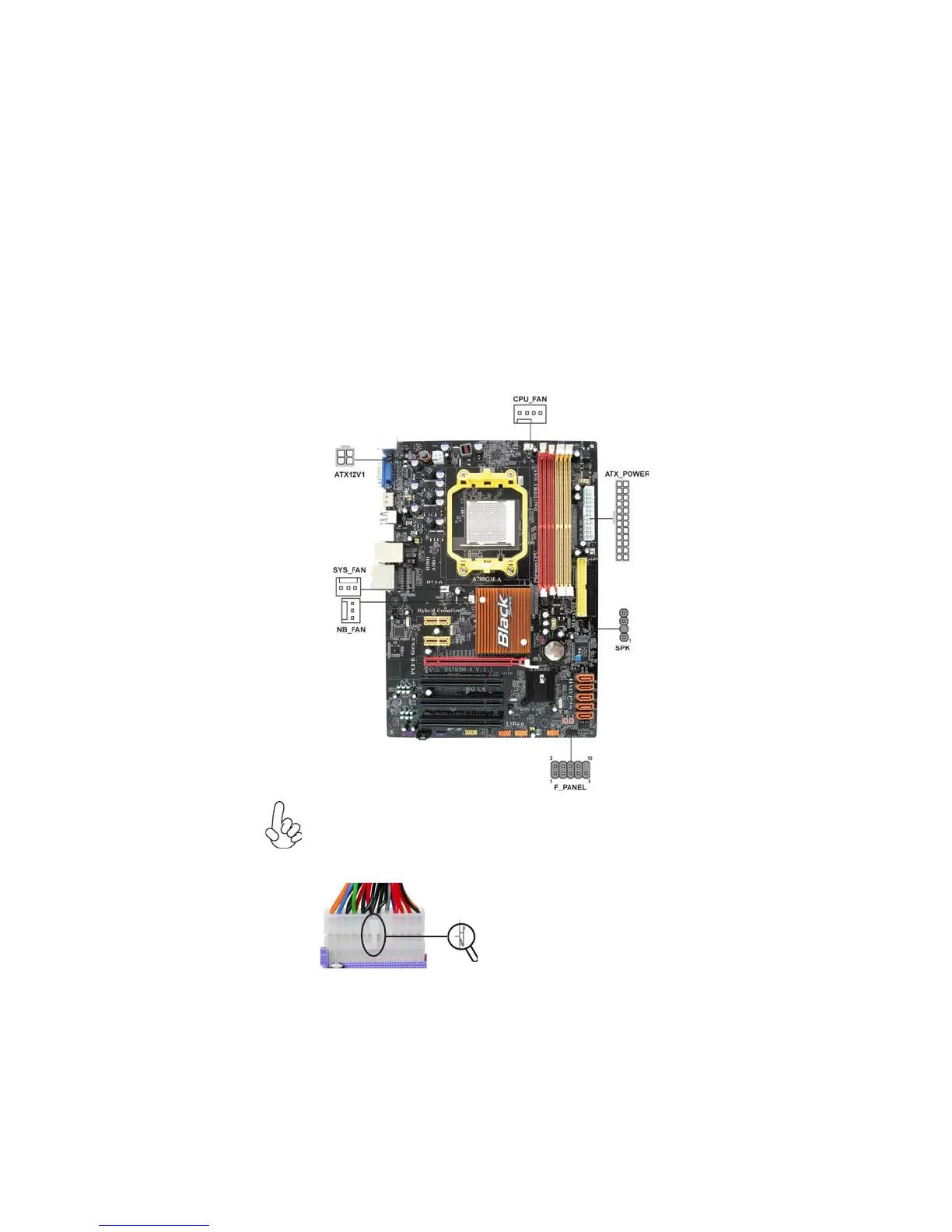

1 Connect the CPU cooling fan cable to CPU_FAN.

2 Connect the standard power supply connector to ATX_POWER.

3 Connect the case speaker cable to SPK.

4 Connect the case switches and indicator LEDs to the F_PANEL.

5 Connect the system cooling fan connector to SYS_FAN.

6 Connect the auxiliary case power supply connector to ATX12V1.

7 Connect the northbridge cooling fan connector to NB_FAN.

Users please note that the 24-pin power cable can be connected to the

ATX_POWER connector.

With ATX v2.x power supply, users please

note that when installing 24-pin power

cable, the latches of power cable and the

ATX_POWER match perfectly.

1. Connecting 24-pin power cable

24-pin power cable
