23
Installing the Motherboard
Connecting Case Components

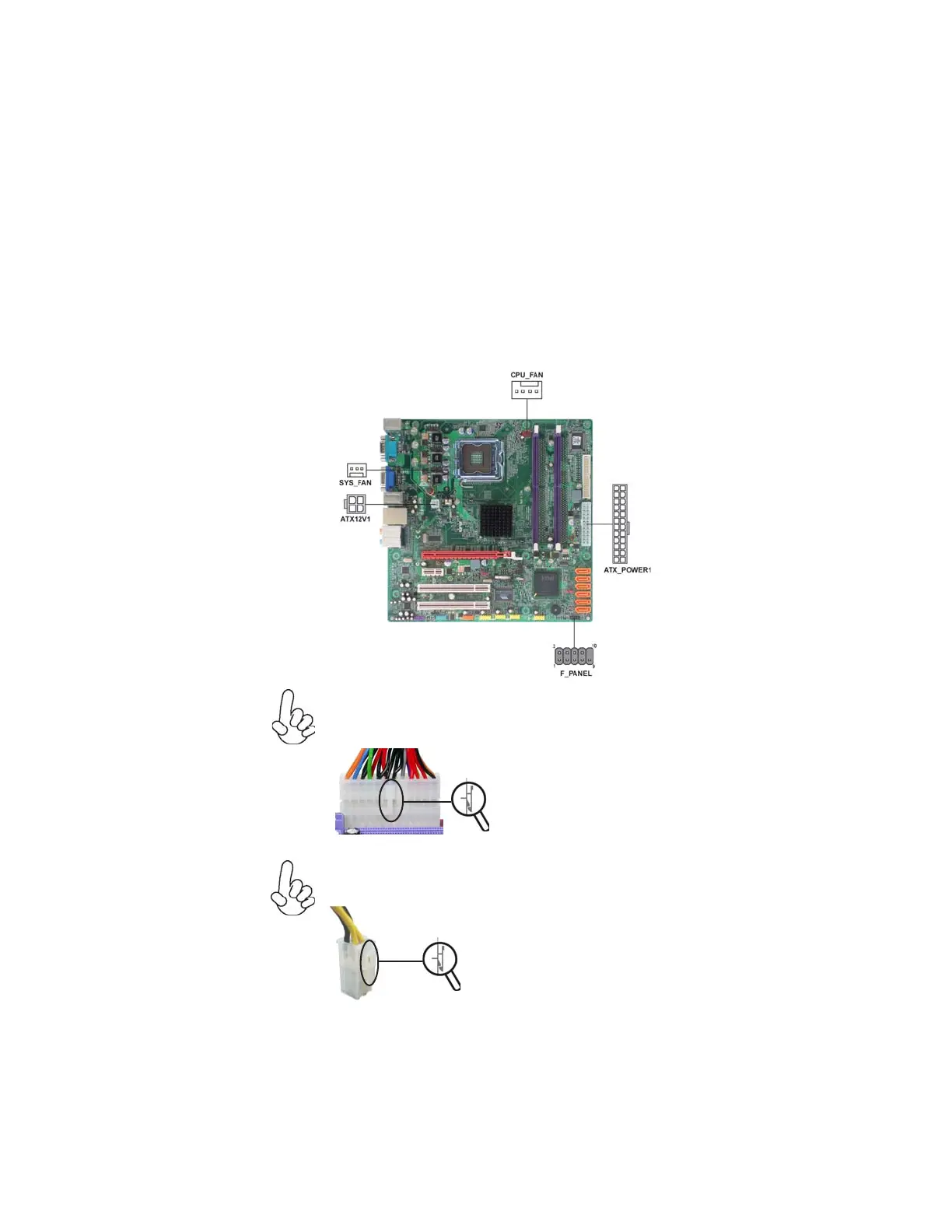

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER1.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the auxiliary case power supply connector to ATX12V1.
5 Connect the system cooling fan connector to SYS_FAN.
24-pin power cable
When installing 4-pin power cable, the
latches of power cable and the ATX12V1
match perfectly.
4-pin power cable
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX_POWER1 match perfectly.
The ATX 24-pin connector allows you to connect to ATX v2.x power
supply.
Connecting 4-pin power cable
The ATX12V1 power connector is used to provide power to the CPU.
Connecting 24-pin power cable
