ECS H57H-M User Manual

23

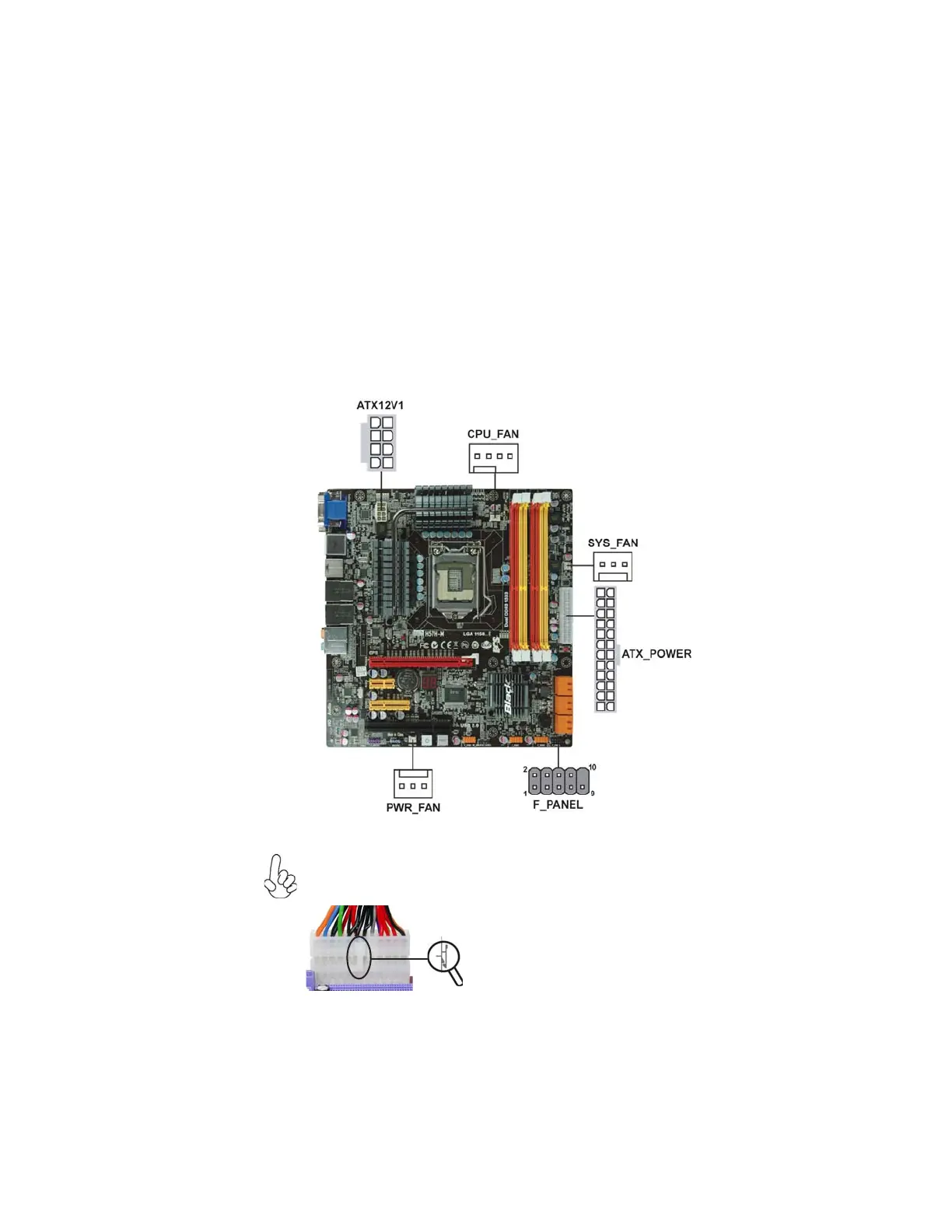

Installing the Motherboard
Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX1 match perfectly.
Connecting 24-pin power cable
24-pin power cable
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the system cooling fan connector to SYS_FAN.
5 Connect the auxiliary case power supply connector to ATX12V1.
6 Connect the power cooling fan connector to PWR_FAN.

ECS H57H-M Specifications

General

Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
System bus rate	2.5 GT/s
Processor socket	LGA 1156 (Socket H)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
BIOS type	AMI
BIOS memory size	64 Mbit
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H57
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111D(L)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
