Acclarix AX3 Series Diagnostic Ultrasound System User Manual Getting Started
- 18 -
Rotate to adjust the depth of the image displayed.
Press to optimize B image automatically.
Rotate to change the gain of images.
Table 3-5 Buttons on Control Panel
3.2.3. Screen Layout

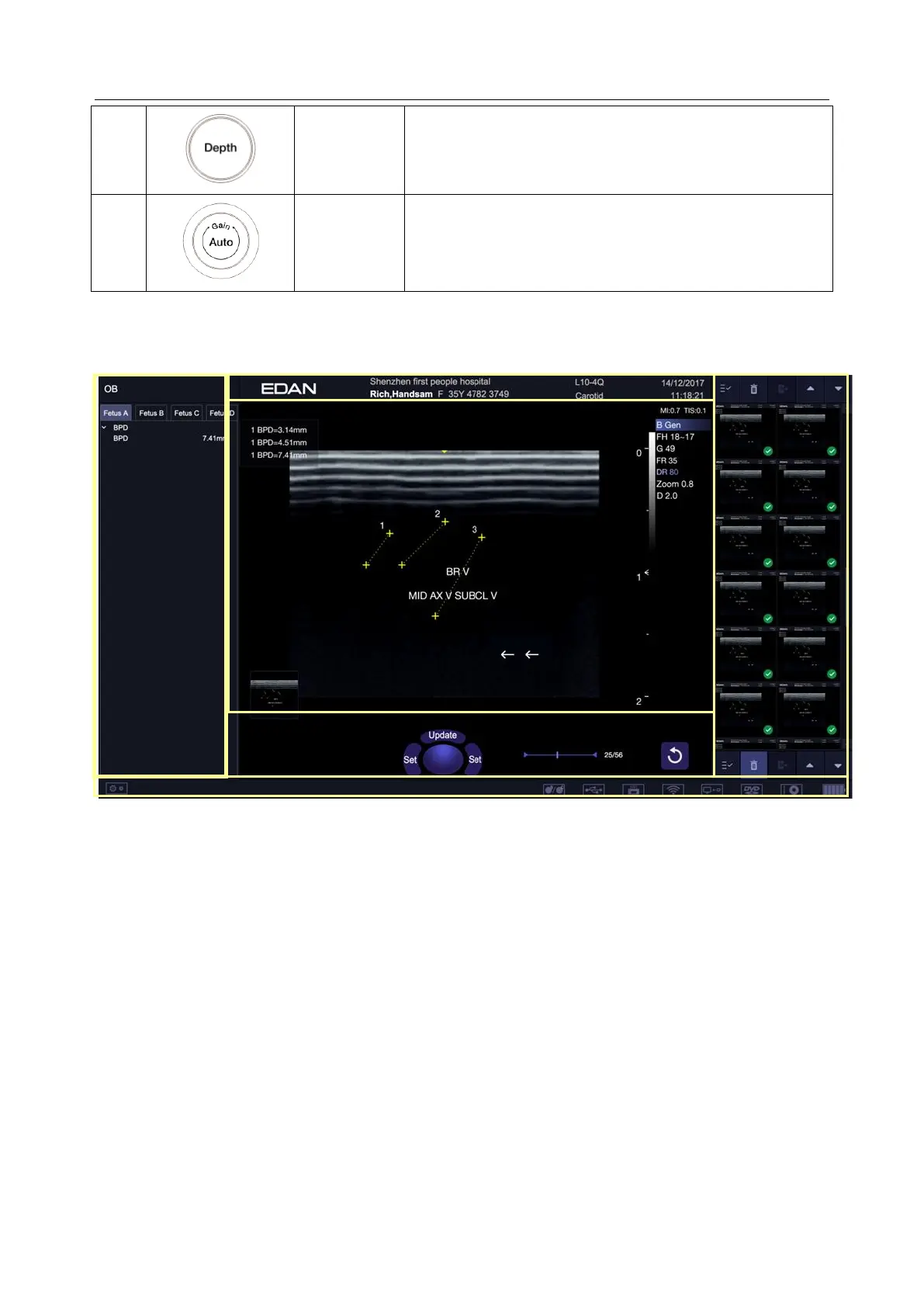

Figure 3-4 Main Screen Display
① Information Field
The top line of this field contains your hospital/institution name. Please see Section
11.1.1 General
Set-up
for information on customization.
The second line of this field contains the patient name, gender, age and ID, as entered through the
Patient Information screen.
This field also contains data fields for:
The currently active transducer
The currently active preset
System date and time.
② Image Field
The ultrasound image appears in the Image field, under the Information field. The Image field also
contains information typically associated with the image, such as depth, TGC, maps, image
parameters, MI and TI.
