Acclarix AX3 Series Diagnostic Ultrasound System User Manual Exam Operation
- 29 -

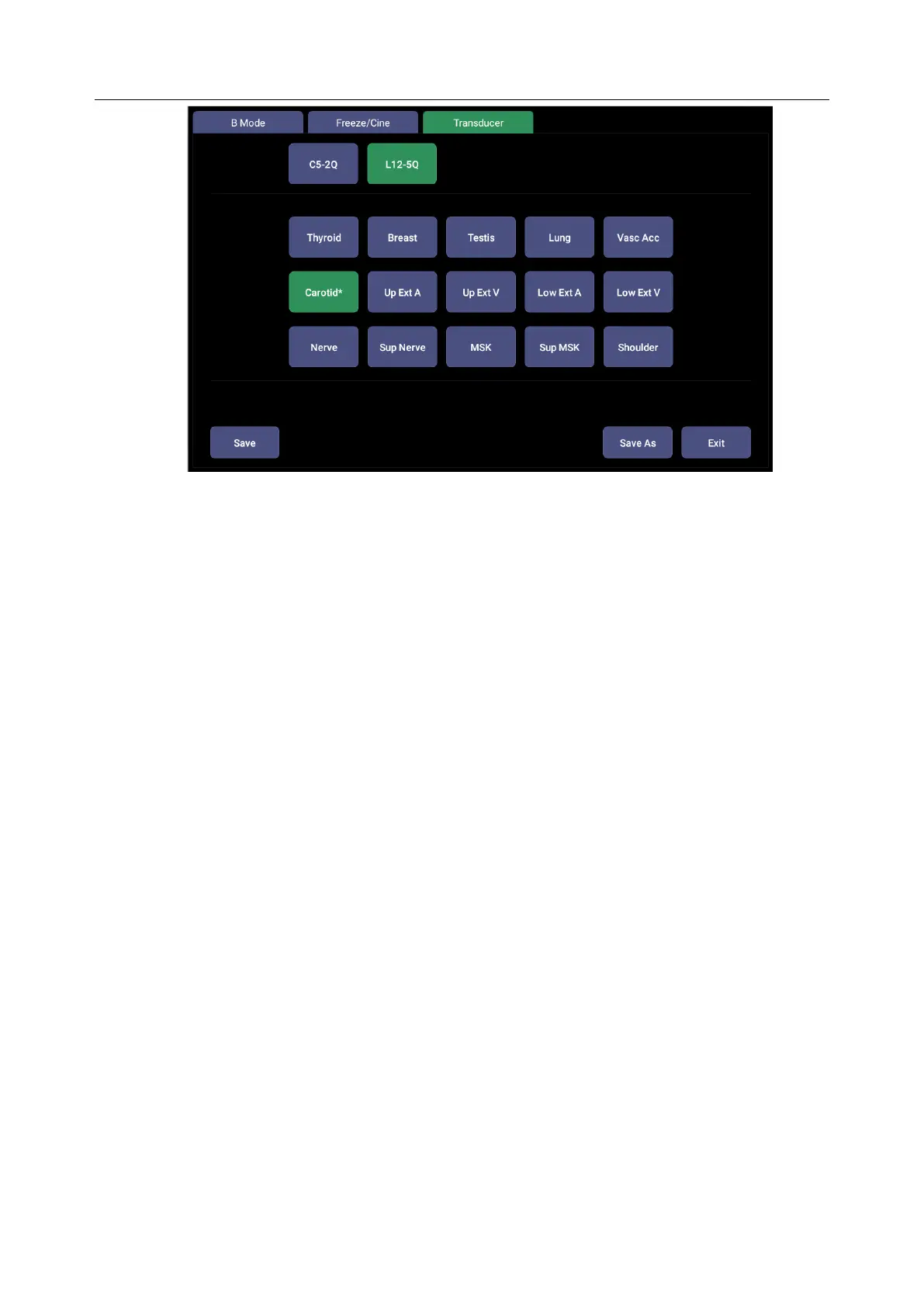

Figure 4-2 Example of Transducer Touch Screen
4.2 How to End an Exam
There are two ways to end an exam:
Pressing the <Patient> key, as described above, and then selecting New Exam. This both
ends the exam and displays the Patient Information Page for the next exam.
Pressing the <Patient> key, as described above, and then selecting End Exam. This brings
up a dialog to confirm you want to end the exam, but does not invoke the Patient Information
Page for the next exam.
4.3 How to Restart an Exam
1. Select an exam from the Exam Database within the time limit selected in Patient Set-up menu.
For the setting of time limit, refer to section
11.1.2 Patient Set-up
.
2. Press Restart on the touch screen to continue/edit the exam that was performed on the selected
patient. You can also modify the patient information by pressing <Patient>-->Edit Current.
4.4 The Patient Information Page
The Patient Information Page is used to enter or modify patient demographic data. The following
figure is an example:
