Acclarix AX3 Series Diagnostic Ultrasound System User Manual Getting Started
- 25 -
3. Push the power cord in firmly to ensure a secure connection.
4. Connect the AC power cord to a hospital-grade power outlet.
WARNING
1. Make sure the AC power supply complies with the following specifications: 100V-240V~,
50Hz/60Hz.
2. Only use a hospital grade, grounded, power outlet and plug. Do not use with an ungrounded
outlet.
3. Only use Edan supplied power adapter and power cord.
3.3.3. Transducer Connection
To connect a transducer:

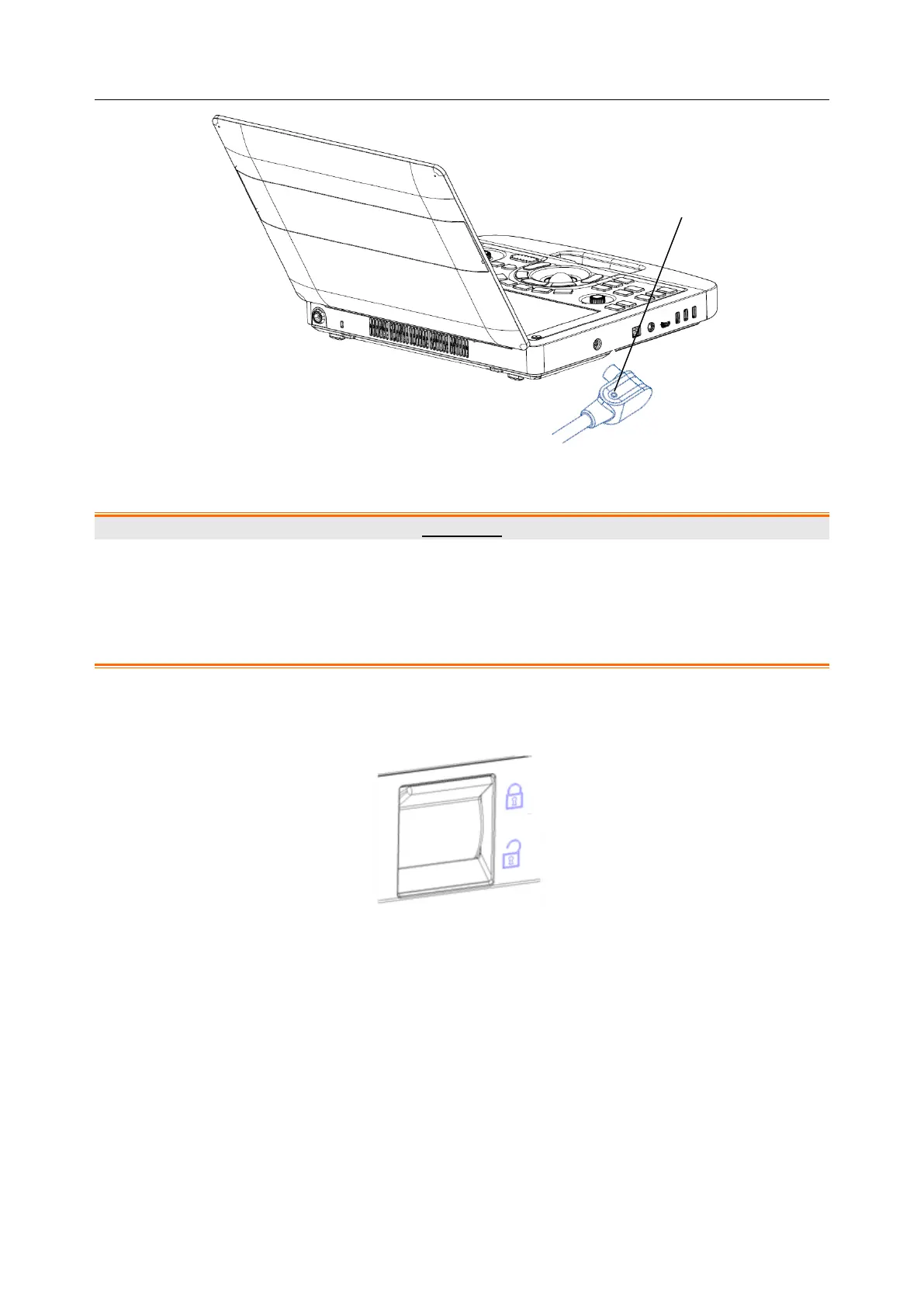

Figure 3-8 Tansducer Locking Handle
1. Align the connector with the transducer port and carefully push into place.
2. Toggle the locking handle to the top position.
3. Do not allow the transducer head to hang free. Impact to the transducer head could result in
irreparable damage.
Direction Indicating Dot
