Eizo FlexScan S1932 User Manual

32
Chapter 5 Reference

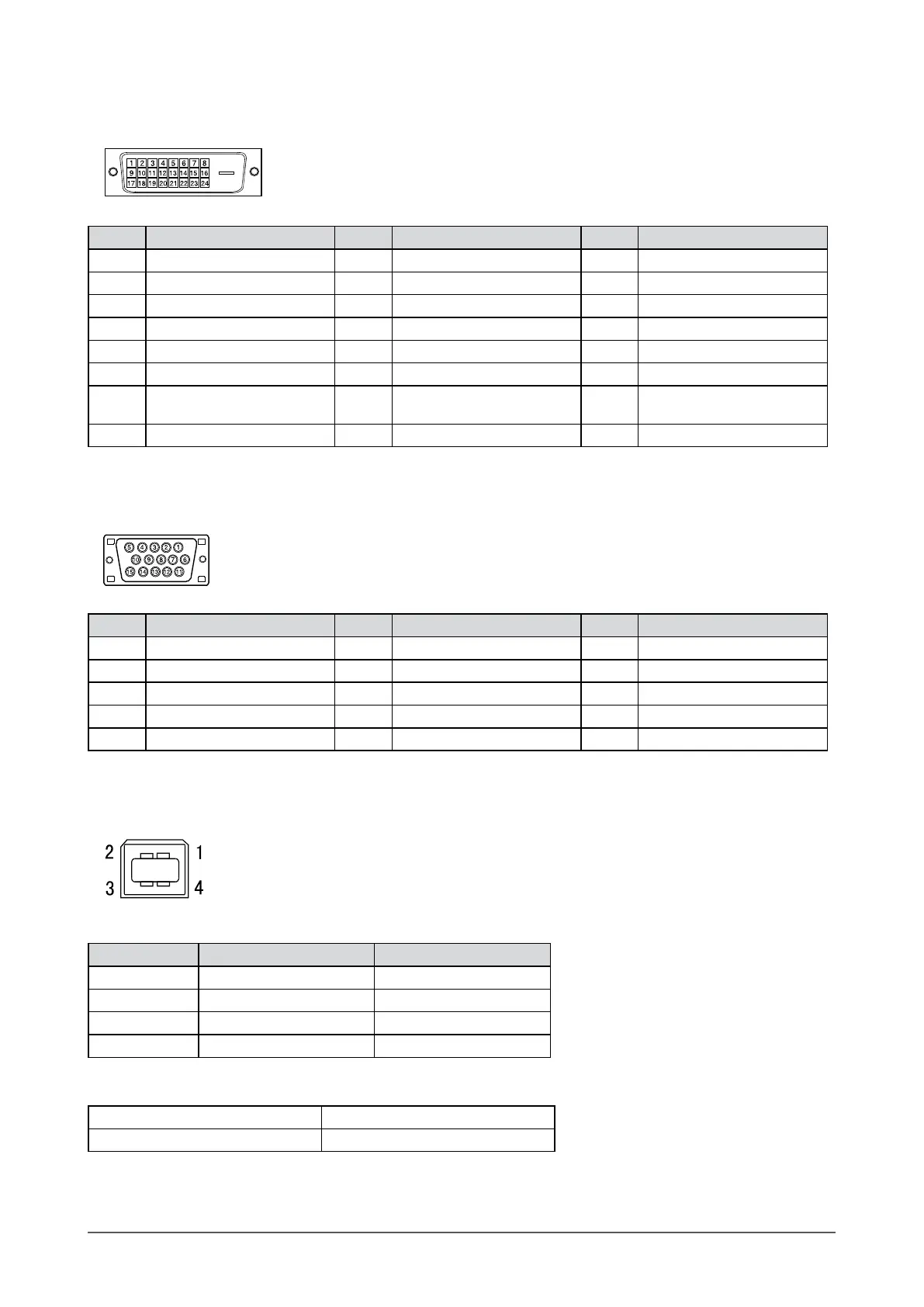

Connector Pin Assignment
• DVI-D connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 T.M.D.S. Data 2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data 2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4 NC* 12 NC* 20 NC*
5 NC* 13 NC* 21 NC*
6 DDC Clock (SCL) 14 +5V Power 22 T.M.D.S. Clock shield
7 DDC Data (SDA) 15 Ground (return for +5V,
Hsync, and Vsync)
23 T.M.D.S. Clock+
8 NC* 16 Hot Plug Detect 24 T.M.D.S. Clock-
(NC*: No Connection)
• D-Sub mini 15-pin connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 Red video 6 Red video ground 11 Ground
2 Green video 7 Green video ground 12 Data (SDA)
3 Blue video 8 Blue video ground 13 H. Sync
4 Ground 9 NC* 14 V. Sync
5 NC* 10 Ground 15 Clock (SCL)
(NC*: No Connection)
• USB port
Upstream
Series B connector
Contact No. Signal Remarks
1 VCC Cable power
2 – Data Serial data
3 + Data Serial data
4 Ground Cable ground
Option List
Cleaning Kit EIZO ScreenCleaner
Speaker Unit i•Sound L3

Eizo FlexScan S1932 Specifications

General

Pixel pitch	0.294 x 0.294 mm
Response time	8 ms
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Digital vertical frequency	59 - 61 Hz
Digital horizontal frequency	31 - 64 kHz
Display brightness (typical)	250 cd/m²
HDCP	Yes
DVI-I ports quantity	-
USB Type-A downstream ports quantity	0
Power consumption (typical)	45 W
Product color	Gray

Weight and Dimensions

Depth (with stand)	205 mm
Height (with stand)	506 mm
Weight (with stand)	7200 g
Depth (without stand)	62 mm
Width (without stand)	405 mm
Height (without stand)	334 mm
Weight (without stand)	5200 g
