4.5 Cascade flue dimensions
The cascade flue kits that are supplied for the Thision L Eco boilers are built from individual kits and then
multiplied dependant on how many boilers is in the installation. For example, if you have 4 boilers on an
in-line cascade frame then the kit will come with 4 sections of cascade flue and so on.
So the overall length of the cascade flue will be the individual kits multiplied by the number of boilers.
Each individual section comes with a vertical single skin pipe to be used to take the flue gas into the
cascade flue header. This section will be supplied in a 500mm length. To achieve the 3° incline back to
the boilers this length will need to be cut down to facilitate this requirement.

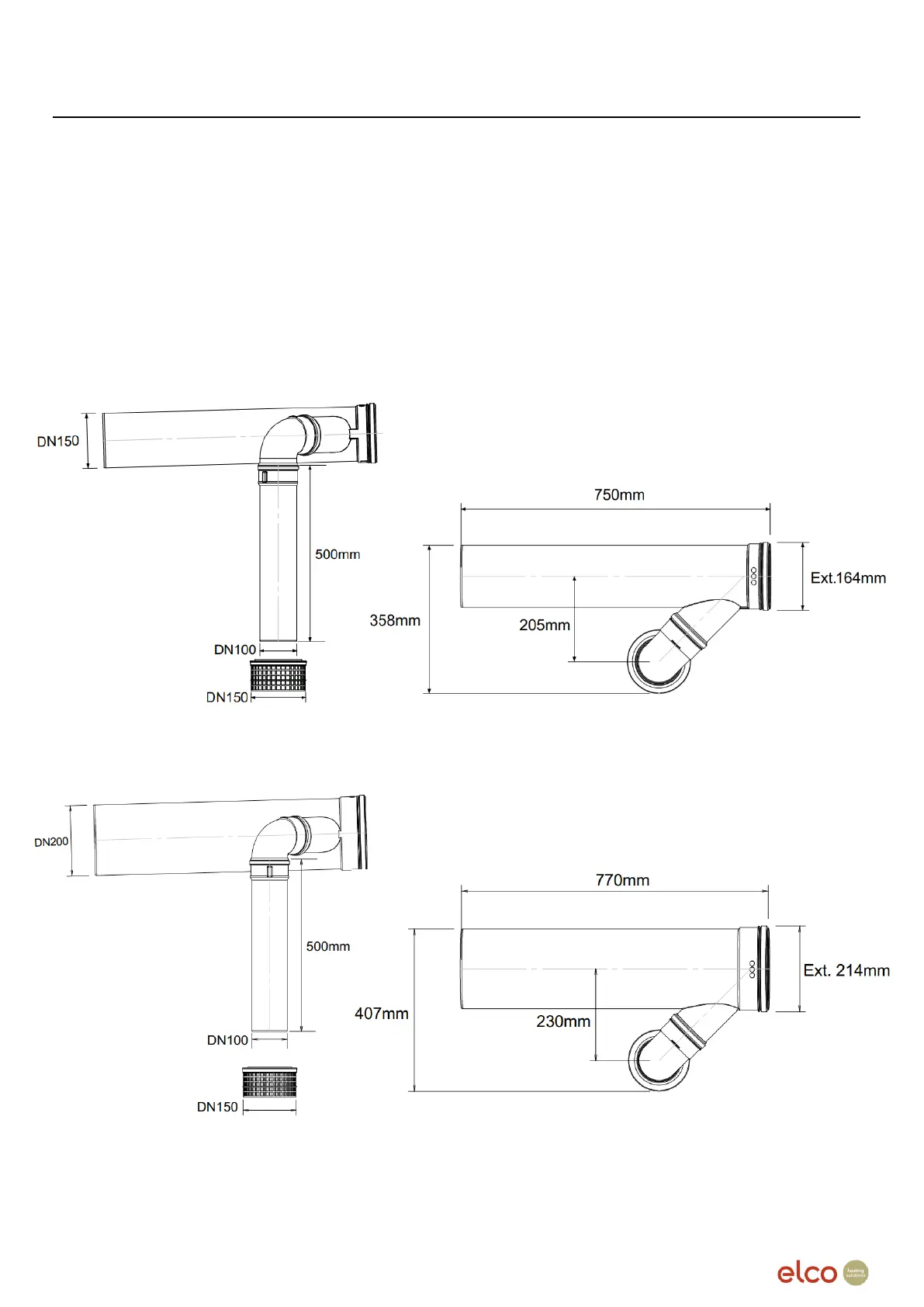

Thision L Eco DN150 In-Line Cascade Flue
Thision L Eco DN200 In-Line Cascade Flue
