3. CONTROL SECTION AND BURNERS
3.1 POSITIONS OF THE CONTROLS

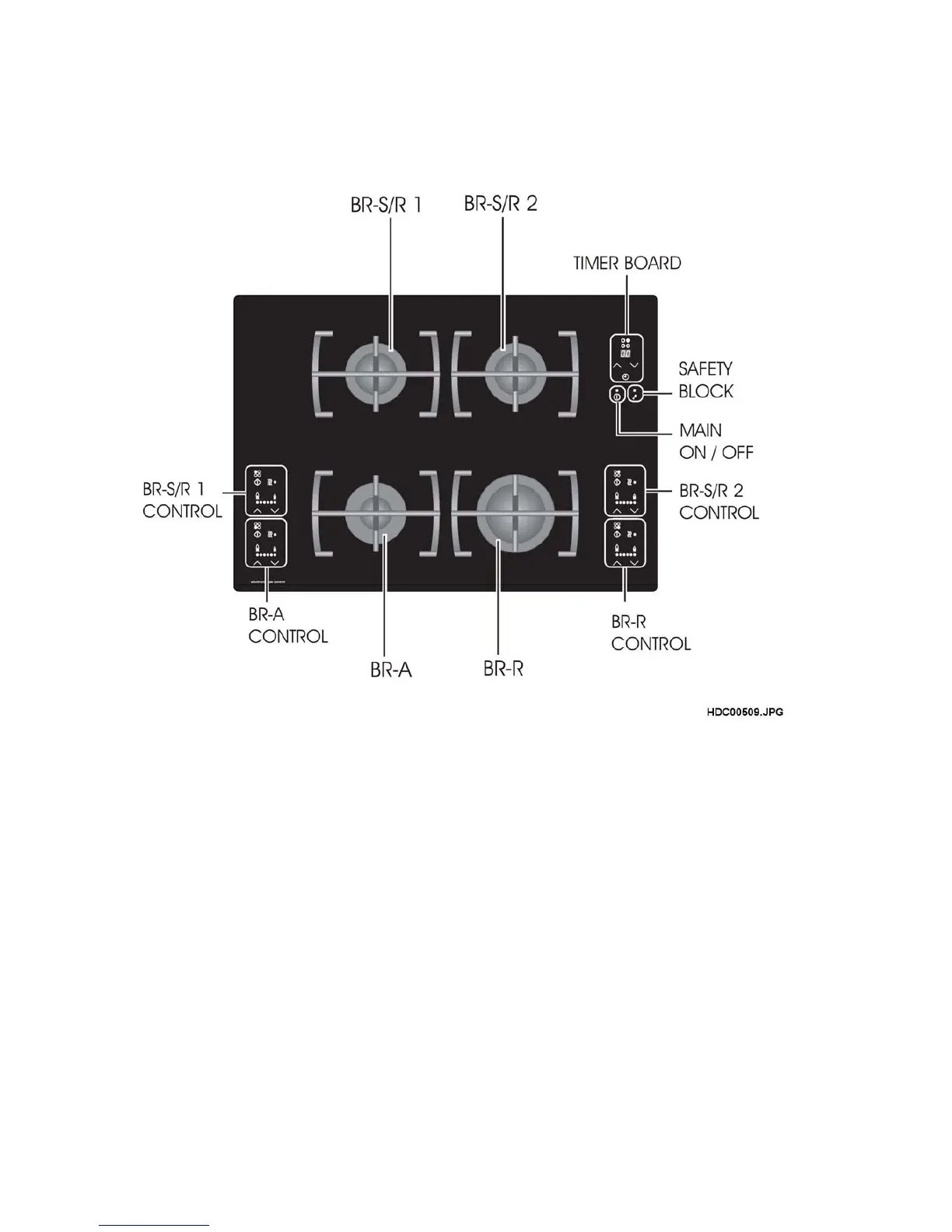

The figure below illustrates the positions of the controls and the burners.
Fig. 1
BR-R (*) - RAPID BURNER (FRONT-RIGHT)
BR-S/R 1 - SEMI-RAPID BURNER (REAR-LEFT)
BR-S/R 2 - SEMI-RAPID BURNER (REAR-RIGHT)
BR-A - AUXILIARY BURNER (FRONT-LEFT)
BR-R CONTROL - TOUCH CONTROL FOR RAPID BURNER (FRONT-RIGHT)
BR-S/R 1 CONTROL - TOUCH CONTROL FOR SEMI-RAPID BURNER (REAR-LEFT)
BR-S/R 2 CONTROL - TOUCH CONTROL FOR SEMI-RAPID BURNER (REAR-RIGHT)
BR-A - TOUCH CONTROL FOR AUXILIARY BURNER (FRONT-LEFT)
MAIN ON /OFF - TOUCH CONTROL - MAIN ON/OFF
TIMER BOARD - TOUCH CONTROL - TIMER
SAFETY BLOCK - TOUCH CONTROL - CHILD SAFETY FEATURE
(*) Certain models are fitted with a triple-crown burner in place of the rapid burner (see table of burners and
nozzles)
