Installation manual Laser scanne
r
D-ID: V1_3 – 06.19 Changes can be made without further notification! 12
3.2 ES 50-80 with two laser scanners
If, in accordance with DIN EN 12453, a protection with an electro-sensitive protective devise for
presence detection is required for this barrier type (Device E), at least one laser scanner must be
installed.
When using swinging supports, folding skirts or folding top and bottom skirts, at least two laser
scanners must be mounted to ensure the safety of this barrier type.
When the safety field of the sensor is the protection against vehicle collision with the boom, the
reference (reflector) must be installed (according to DIN EN 12453, Device E). See also instructions
“laser scanner LZR-H100".

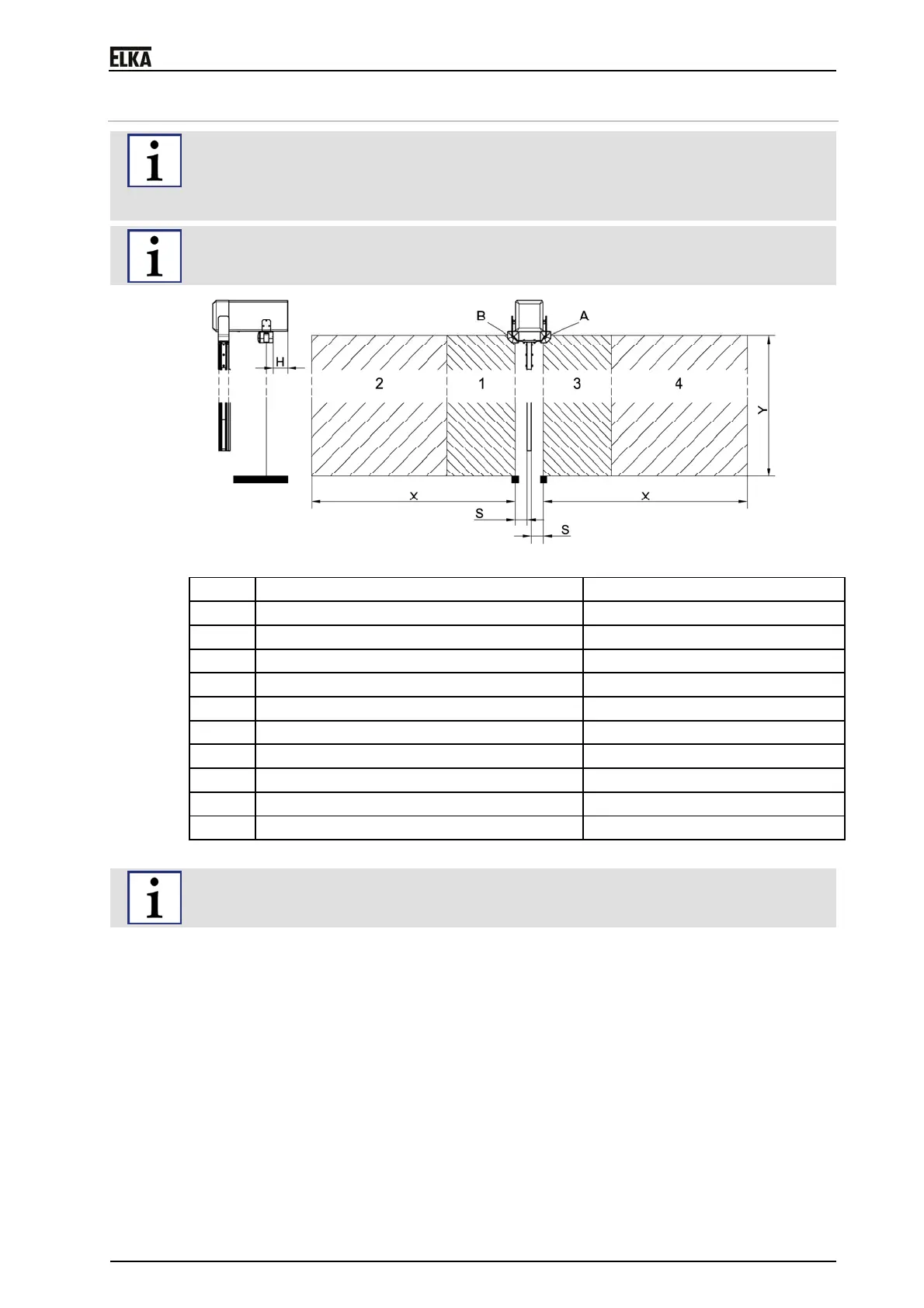

Drawing 8
Corresponds to: Remark:
A Scanner A
B Scanner B
X Field dimension X = max. 9.9m
Y Field dimension Y = max. 9.9m
1 Safety field Scanner B
2 Opening field Scanner B
3 Safety field Scanner A
4 Opening field Scanner A
S Safety area Max. 200mm to barrier boom
H Mounting height (see note below)
Table 4
The mounting height H depends on the demands that are required by DIN EN 12453 (Device E).
