Installation manual Laser scanne
r
D-ID: V1_3 – 06.19 Changes can be made without further notification! 16

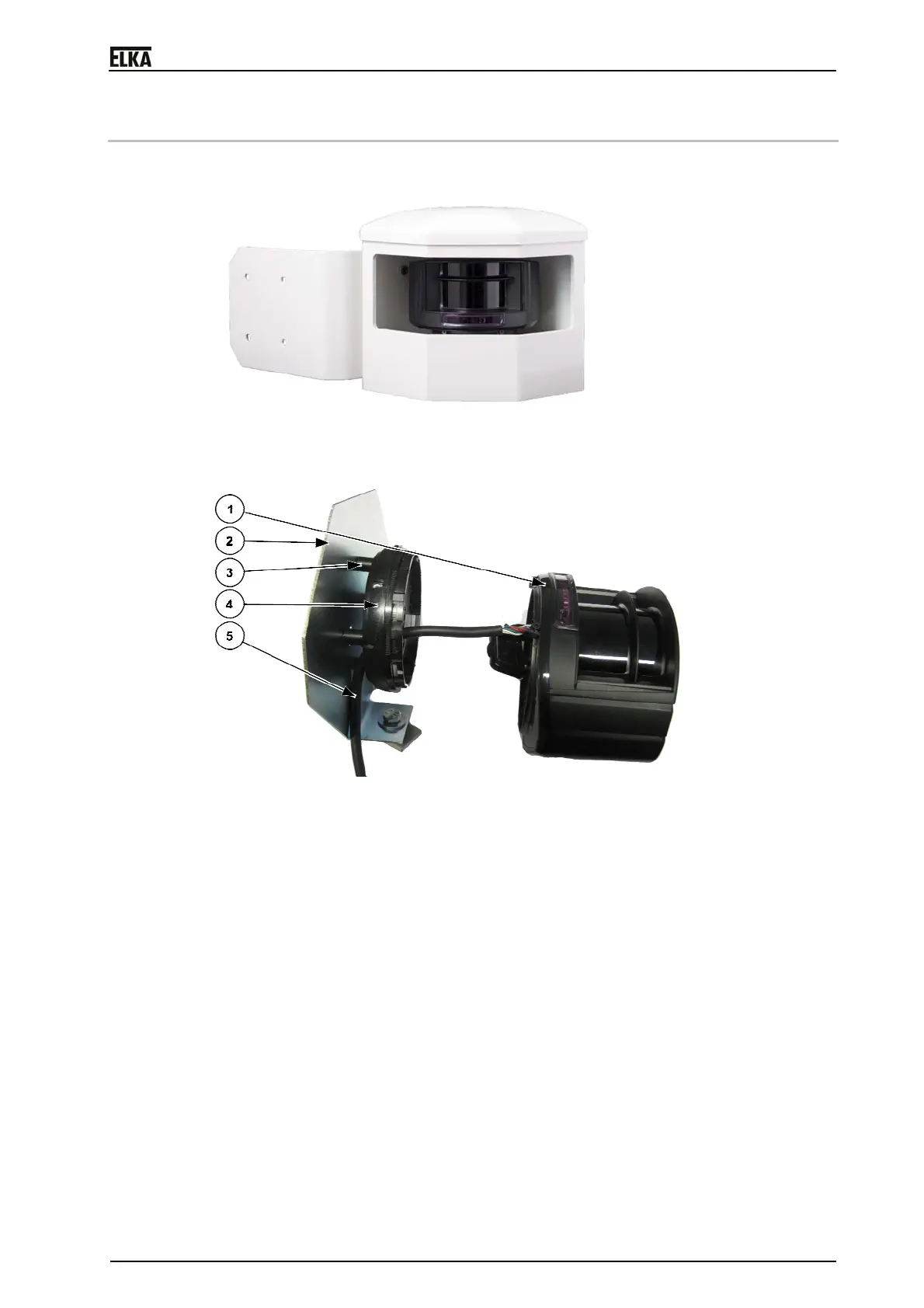

5 Installation of the laser scanner into the aluminum-housing (article no. 819 000
301)
Drawing 13
Drawing 14
1 Laser scanner
2 Mounting plate
3 Plastic bush
4 Mounting base
5 Connecting cable
Mount the mounting base of the laser scanner on the mounting plate. Use the plastic bushes as
spacers. Lead out the connection cable under the mounting base laterally.
