4 Installation of the laser scanner into the pillar (article no. 819 000 300)
Drawing 10
Drawing 11

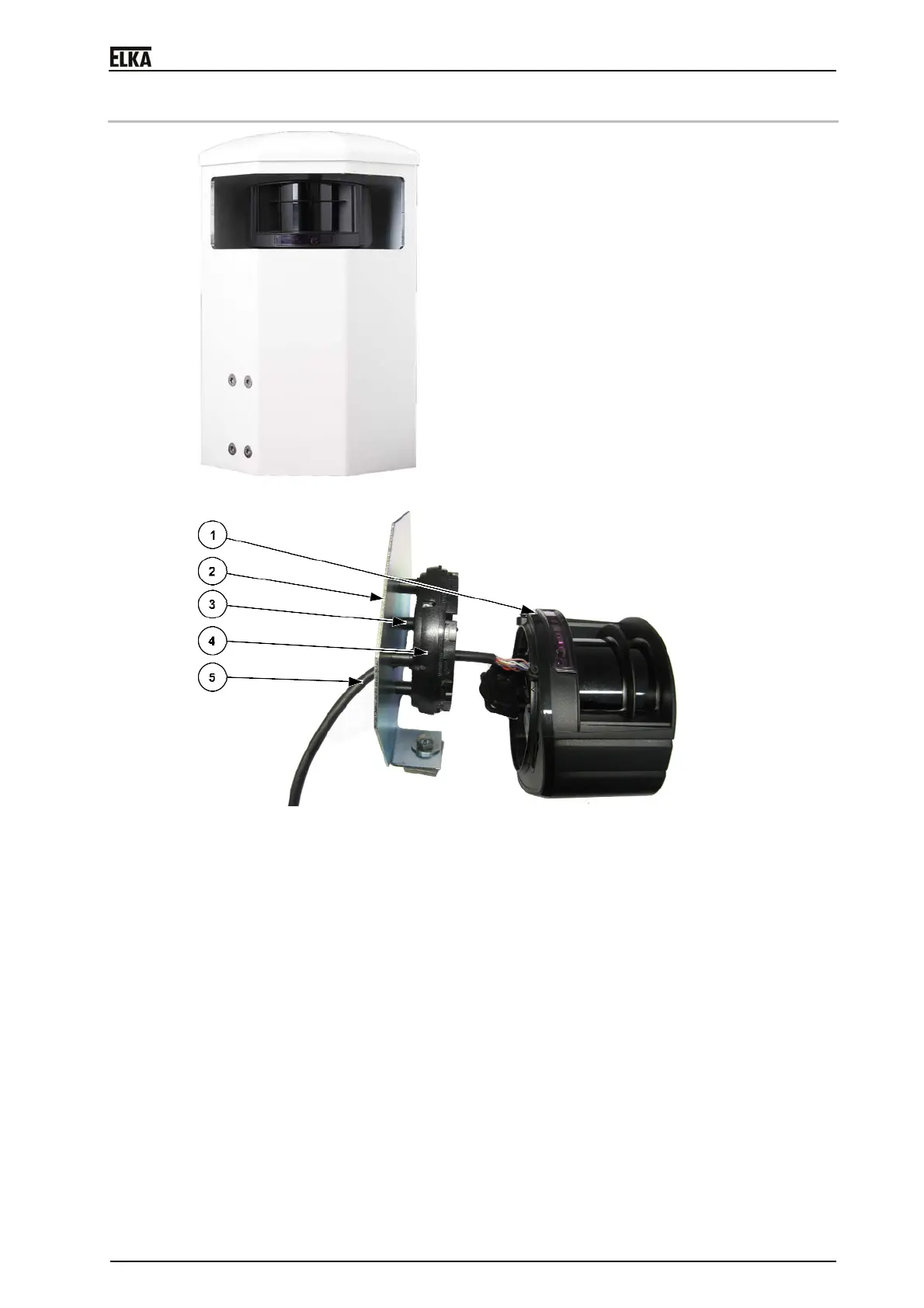

1 Laser scanner
2 Mounting plate
3 Plastic bush
4 Mounting base
5 Connecting cable
Mount the mounting base of the laser scanner on the mounting plate. Use the plastic bushes as
spacers. Lead the connecting cable through the hole in the mounting plate.
