E2 Setup of Control Link ACC Devices Network Wiring and Configuration • 13
Control Link ACC’s dip switch/jumper setting, and
press
to select it. If a network ID has already
been selected, its name will be shown next to the
network ID in this list. If the network ID you are
trying to assign has already been used, you must set
the network ID dip switch/jumper on this device to
a different number that is not being used.
7. Repeat Steps 5 and 6 until each Control Link ACC
device has a name and address.
8. When finished, press
to return to the Network
Setup menu, then press
- Online Status (Figure
7-6). Locate the Control Link ACCs you set up, and
look at each device’s status in the Status field. You
will see one of the following messages:
• Online - The Control Link ACC is communicating
normally.
• Offline - The Control Link ACC is not
communicating, has not been commissioned, is not
functional, or is not powered up. Verify the Control
Link ACC is powered up, wired correctly, and has
the proper network address, baud rate, and parity
(see Section 11, Troubleshooting Control Link
ACCs and the ECT MODBUS Network).
• Unknown - The Control Link ACC is not
communicating or has not been commissioned.
Verify the Control Link ACC is powered up, wired
correctly, and has the proper network address, baud
rate, and parity (see Section 11, Troubleshooting
Control Link ACCs and the ECT MODBUS
Network).
• No Port - No port is set up in the E2 Serial
Configuration Manager to be a MODBUS port.
Follow the instructions in Section 7.2.1., Setup
Network Ports on page 11).
• Wrong FW Rev - This message is likely caused by
the Control Link ACC having a firmware version
older than the minimum revision required by E2 for
communication. Replace the Control Link ACC
with a new controller that has the latest version of
firmware on it.
7.2.3. Add and Connect Control Link
ACCs - E2 Firmware Version
2.8 and above
To enable communications between E2 and the
Control Link units, the devices must be added and
addressed in E2.
1. Log in to the E2 with Level 4 access.
2. Press
- Connected I/O Boards
and Controllers.
3. In the Connected I/O screen, under the ECT tab,

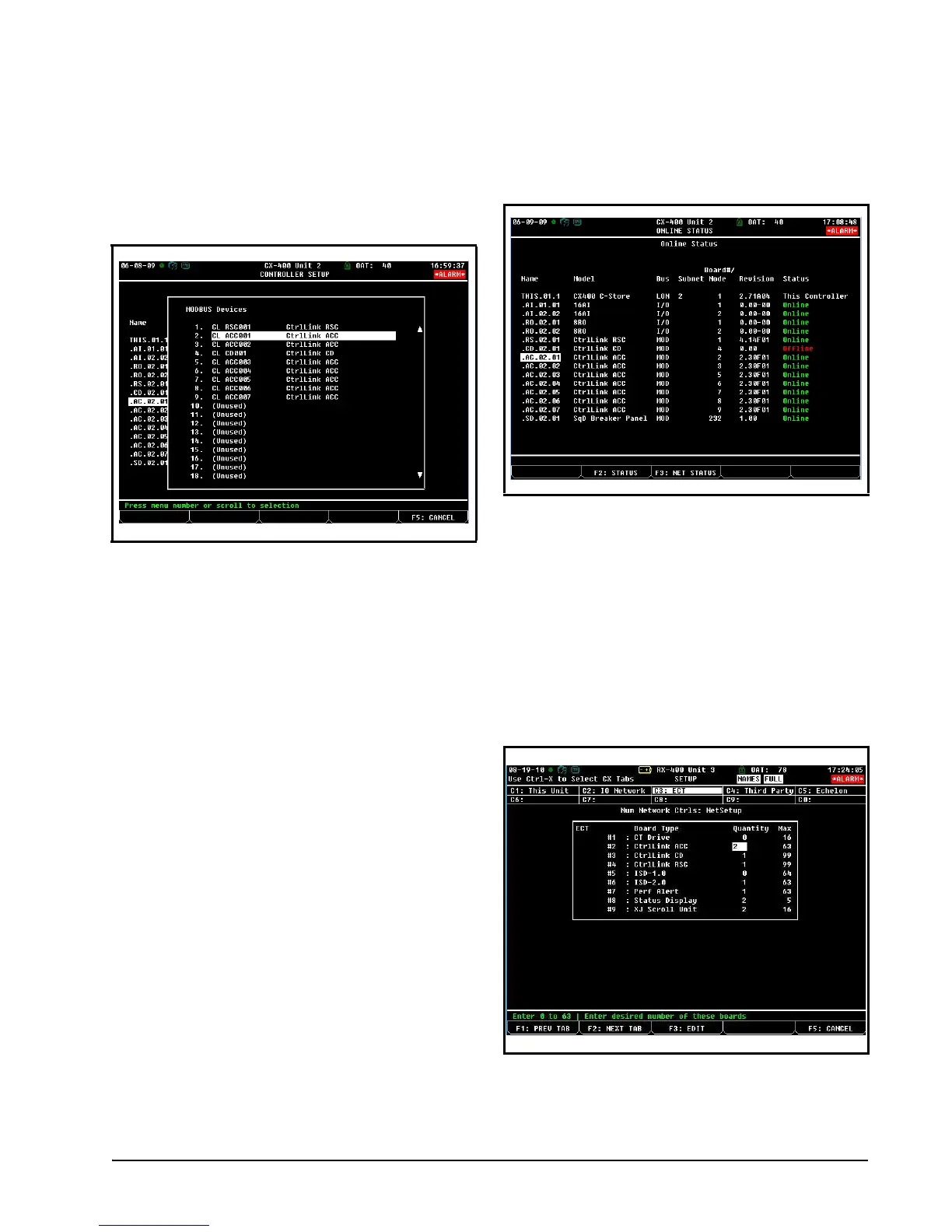

Figure 7-5 - List of MODBUS Devices
Figure 7-6 - Online Status Screen
Figure 7-7 - Connected I/O Screen
