1592040000 XR20-30-60-70T EN v1.5 2021.06.22 XR20-30-60-70T 13/41
E2
Memory storage management
CoM
Serial Communication port configuration parameters
Ui
User Interface configuration parameters
inF
Information, read only parameters
PAS
Password for entering protected menu parameters
_ _ _
X9 Menu

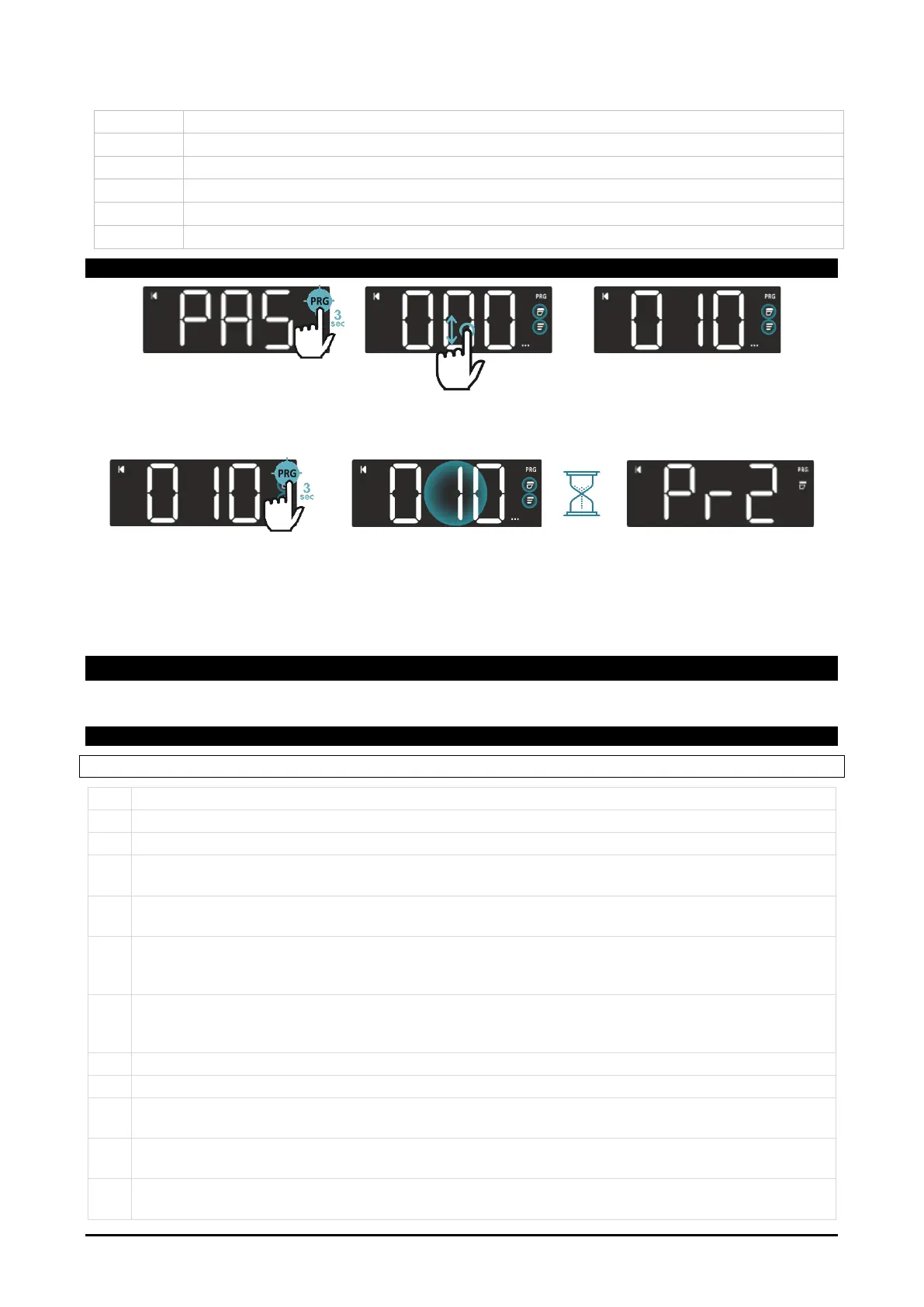

4.12 PASSWORD MENU
When in the PAS group, it is possible to set the password value by touching the PRG icon for 3 sec.
V-swipe on a single digit to modify the value, then confirm the password value by touching the PRG icon for
3 sec.
The new value will blink and after 2 sec the display will show:
• Pr2 if the password is correct
• Err if the password value is wrong
After 2 sec the display will show the first group label (rEG) with a blinking PRG icon to indicate that protected
parameters now are editable.
5. PARAMETER TABLE
Here are the descriptions of the device parameters.
5.1 PARAMETER DESCRIPTION
5.1.1 Main regulation parameters - rEG
SEt
Set Point: range from LS to US
LS
Minimum Set Point: (-100.0°C to SET; -148°F to SET) fix the minimum value for the set point.
US
Maximum Set Point: (SET to 200.0°C; SET to 392°F) fix the maximum value for the set point.
HY
Compressor regulation differential in normal mode: (0.1 to 25.0°C; 1 to 45°F) set point
differential. Compressor Cut-IN is T > SET + HY. Compressor Cut-OUT is T<=SET.
HYE
Compressor regulation differential in energy saving mode: (0.1 to 25.0°C; 1 to 45°F) set point
differential. Compressor Cut-IN is T > SET + HES + HYE. Compressor Cut-OUT is T<= SET + HES.
HY1
Second compressor regulation differential in normal mode: (0.1 to 25.0°C; 1 to 45°F) set point
differential. If 2CC=HAF, then compressor Cut-IN is T > SET + HY + HY1. Compressor Cut-OUT is
T<=SET.
HYS
Second compressor regulation differential in energy saving mode: (0.1 to 25.0°C; 1 to 45°F) set
point differential. If 2CC=HAF, then compressor Cut-IN is T > SET + HES + HYE + HYS.
Compressor Cut-OUT is T<= SET + HES.
HYd
Deadband output regulation (oAx=db) differential: (0.1 to 25.0°C; 1 to 45°F)
rAr
Delay between compressor and db output activation and vice versa: (0 to 255 min)
odS
Output activation delay at start-up: (0 to 255 min) this function is enabled after the instrument
power-on and delays the output activations.
AC
Anti-short cycle delay: (0 to 50 min) minimum interval between a compressor stop and the
following restart.
AC1
Anti-short cycle delay (2nd compressor): (0 to 999 sec) delay before activating second
compressor, depending on regulation mode selected by par. 2CC
