13
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: 42-ANT & 52-ANT

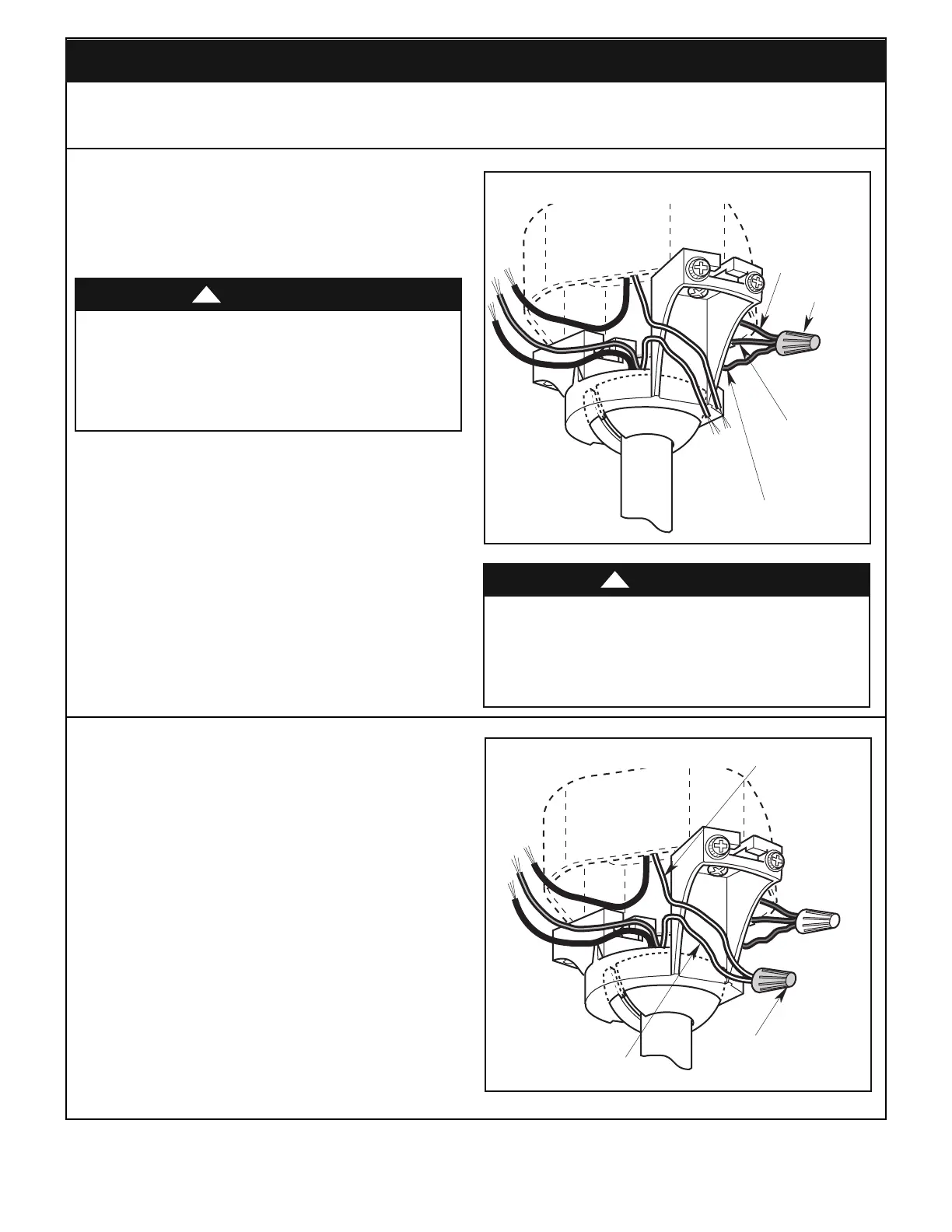

8. How to Wire Your Ceiling Fan
G
ROUND
CONDUCTOR
S
UPPLY
LISTED WIRE
CONNECTOR
GREEN WIRE
(GROUND)
FROM
HANGER
BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
Figure 16
8.1
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Connect the green grounding lead from the hanger ball
and the green grounding lead from the hanger bracket
to the grounding conductor of supply (this may be a
bare wire or wire with green colored insulation)
(Figure 16). Securely connect wires using wire
connectors supplied.
NOTE: When wiring the ceiling fan for close-to-the-
ceiling mounting, there will be no green grounding
lead from the hanger ball.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is turned
off at the main fuse box before wiring. All wiring must
be in accordance with National and Local codes and
the ceiling fan must be properly grounded as a
precaution against possible electrical shock.
WARNING
!
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
!
LISTED WIRE
CONNECTOR
SUPPLY WHITE
(NEUTRAL)
FAN MOTOR
WHITE WIRE
Figure 17
8.2
Securely connect the fan motor white wire to the supply
white (neutral) wire using wire connector supplied
(Figure 17).
The following instructions show that the Hanger Ball/Downrod Assembly and the Close-To-The-Ceiling
Assembly wiring instructions are the same.
Hanger Ball/Downrod Assembly Shown
Hanger Ball/Downrod Assembly Shown
To Next Page
