U.L. Model No.: 42-ANT & 52-ANT

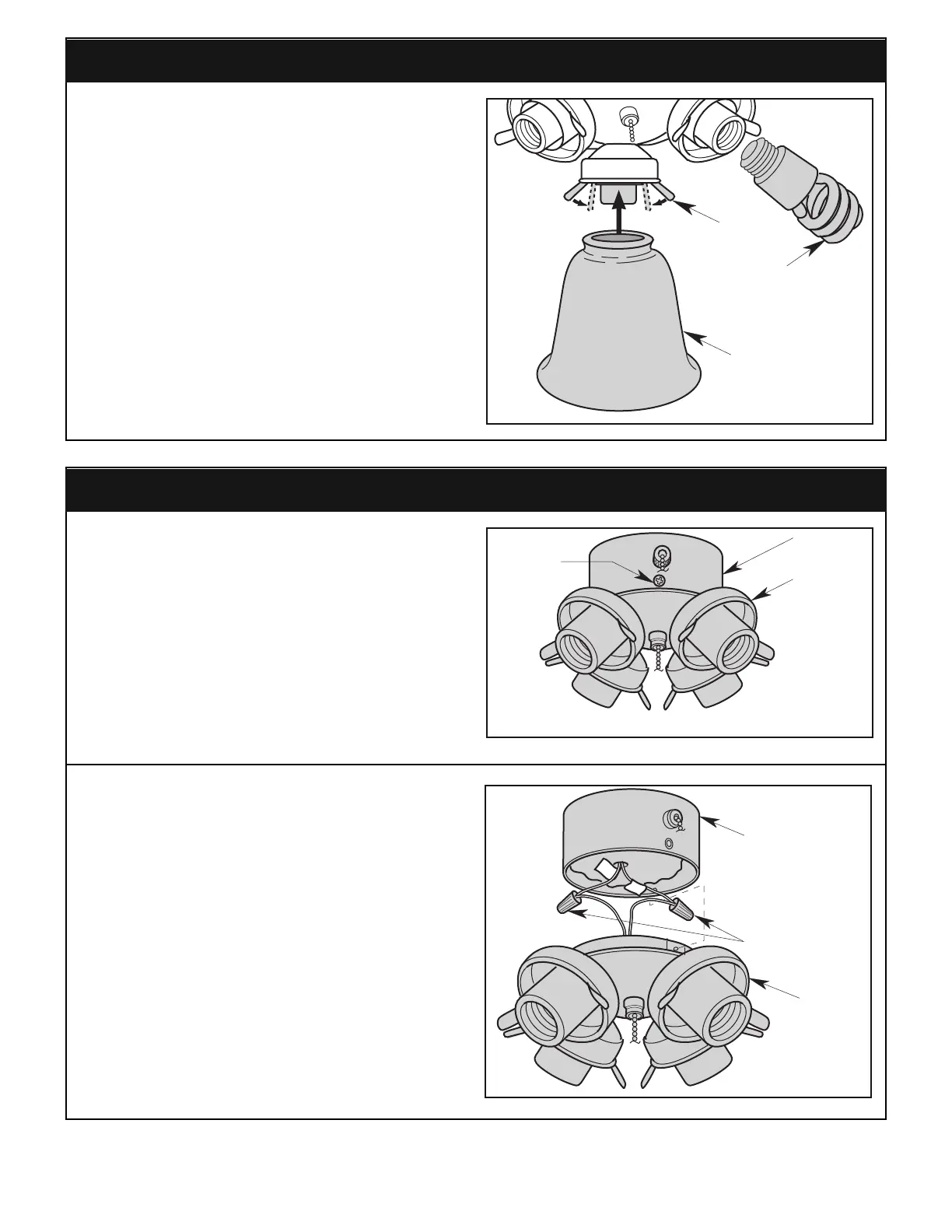

11. Installing the Glass Shades and Light Bulbs
RETAINING
CLIP
SQUEEZE
RETAINING
CLIPS
TOGETHER
AND SLIDE
ON GLASS
SHADE
GLASS
SHADE
13W E26 MEDIUM
BASE BULB CFL
(3 or 4)
Figure 25
11.1
To install the glass shade, squeeze the retaining clips
towards the bulb socket and slide on the glass shade
(Figure 25). The spring clips will seat the shade and
secure it in place.
Install a 13W E26 medium base bulb CFL in each of
the light fitter sockets (Figure 25).
To remove the shade, first remove the light bulb from
the socket, then simply pull the shade off using a
twisting motion.
12. Removal of the Light Fixture
SWITCH
HOUSING
LIGHT
FIXTURE
SCREW (3)
LIGHT BULBS
PREVIOUSLY
REMOVED
Figure 26
12.1
NOTE: In some instances it may be desirable to
install the ceiling fan without the light fixture. If this
is the case, proceed as follows. (You may want to
keep the light fixture for possible future use.)
Light bulbs and glass shades removed.
Remove the three switch housing screws securing the
light fixture (Figure 26).
Retain the three switch housing screws for future use.
LIGHT
FIXTURE
REMOVE THE TWO
WIRE CONNECTORS
TO DISCONNECT
WIRES FROM LIGHT
FIXTURE AND THE
SWITCH HOUSING
SWITCH
HOUSING
Figure 27
12.2
Disconnect the two wire connectors that are securing
the light fixture wires to the switch housing wires
(Figure 27).
Retain the wire connectors for future use.
