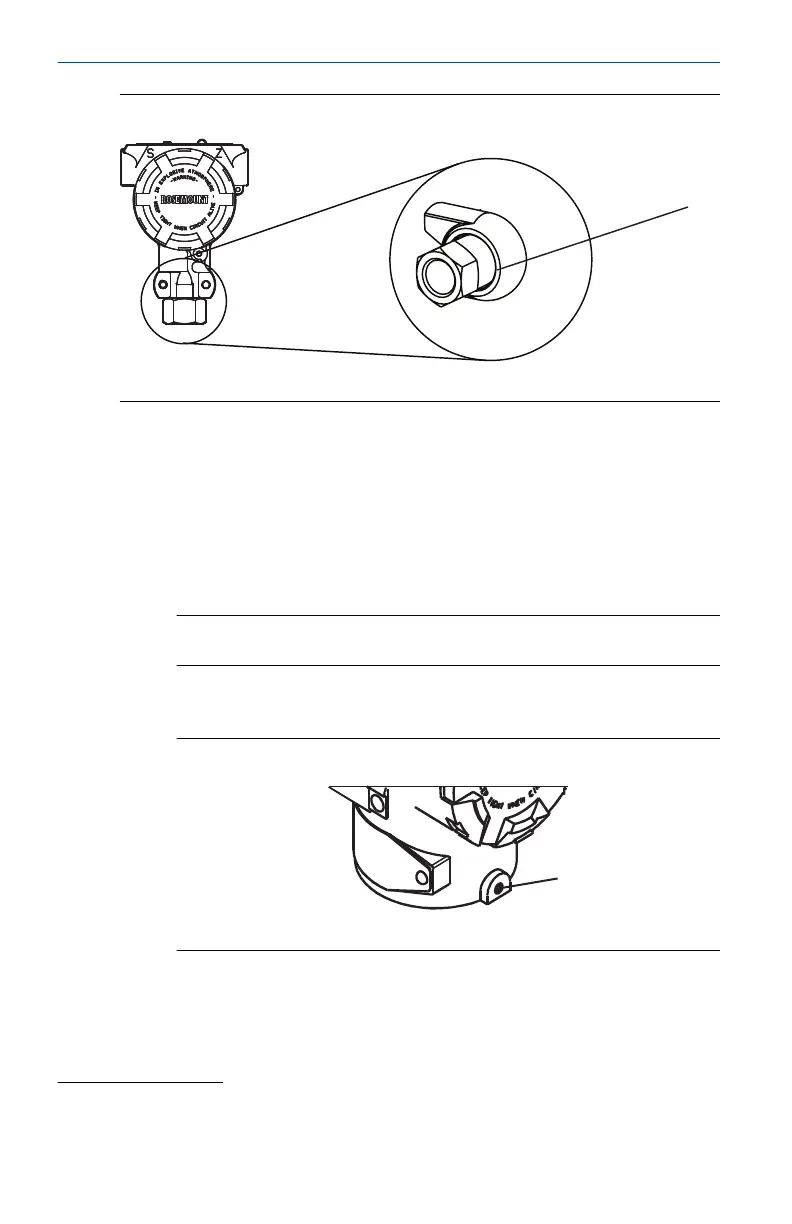

Figure 2-6: In-line Gage Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
2.1.6 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
Procedure
1. Loosen the housing rotation set screw using a -in. hex wrench.
2. Turn the housing left or right maximum up to 180° from its original
position.
(1)
Note
Over-rotating can damage the transmitter.
3. Re-tighten the housing rotation set screw to no more than 7 in-lb
when desired location is reached.
Figure 2-7: Housing Rotation Set Screw
A
A. Housing rotation set screw (5/64-in.)
(1) Rosemount 3051D original position aligns with “H” side; Rosemount 3051G original
position is the opposite side of bracket holes.
Quick Start Guide February 2019
10 Emerson.com/Rosemount
