Projector Parts and Functions
11
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring
(EB‑U42/EB‑W42/EB‑
W41/EB‑X41/EB‑U05
/EB‑W05/EB‑X05/EB‑
U140/EB‑W140/EB‑X
140/EB‑X450/EB‑X40
0)
Adjusts the image size.
N
Focus ring Adjusts the image focus.
The shape may vary depending on the model of your
projector.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.137
• "Resizing the Image with the Zoom Ring" p.43
• "Focusing the Image Using the Focus Ring" p.45
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.38

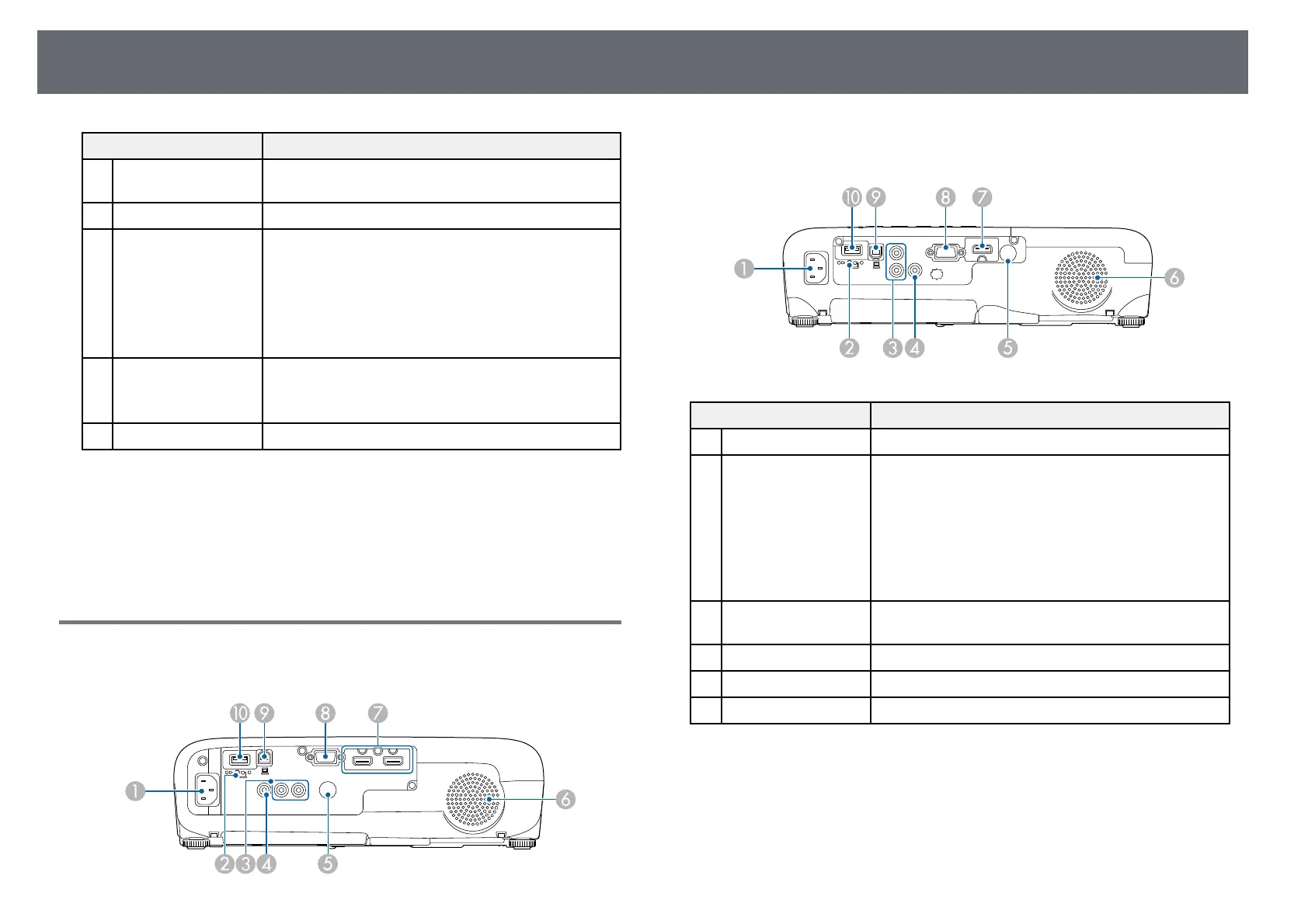

Projector Parts - Rear
EB‑U42/EB‑U05/EB‑U140
EB‑W42/EB‑W41/EB‑X41/EB‑S41/EB‑W05/EB‑X05/EB‑S05/EB‑W140/EB‑X1
40/EB‑S140/EB‑X450/EB‑X400/EB‑S400
Name Function
A
Power inlet Connects the power cord to the projector.
B
Wireless LAN module
fixing screw
(EB‑W41/EB‑X41/EB‑
S41/EB‑U05/EB‑W05/
EB‑X05/EB‑S05/EB‑U
140/EB‑W140/EB‑X14
0/EB‑S140/EB‑X450/E
B‑X400/EB‑S400)
Secures the wireless LAN module cover.
C
Audio ports Inputs audio from equipment connected to the
Computer or Video port.
D
Video port Inputs composite video signals from video sources.
E
Remote receiver Receives signals from the remote control.
F
Speaker Outputs audio.

Epson EB-S05 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.77 - 2.4 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	1985 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Focus	Manual
Throw ratio	1.45 - 1.96:1
Zoom capability	Yes
Fixed focal length	16.7 mm
Focal length range	- mm
Aperture range (F-F)	1.44 - 1.44
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	282 W
Power consumption (economy mode)	203 W
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Ethernet LAN (RJ-45) ports	0
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-B ports quantity	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	2 W
Pallet width	800 mm
Pallet height	3440 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	375 mm
Package width	145 mm
Package height	335 mm
Package weight	3.46 g
