Epson EB-S05 User Manual

Projector Connections
23
a

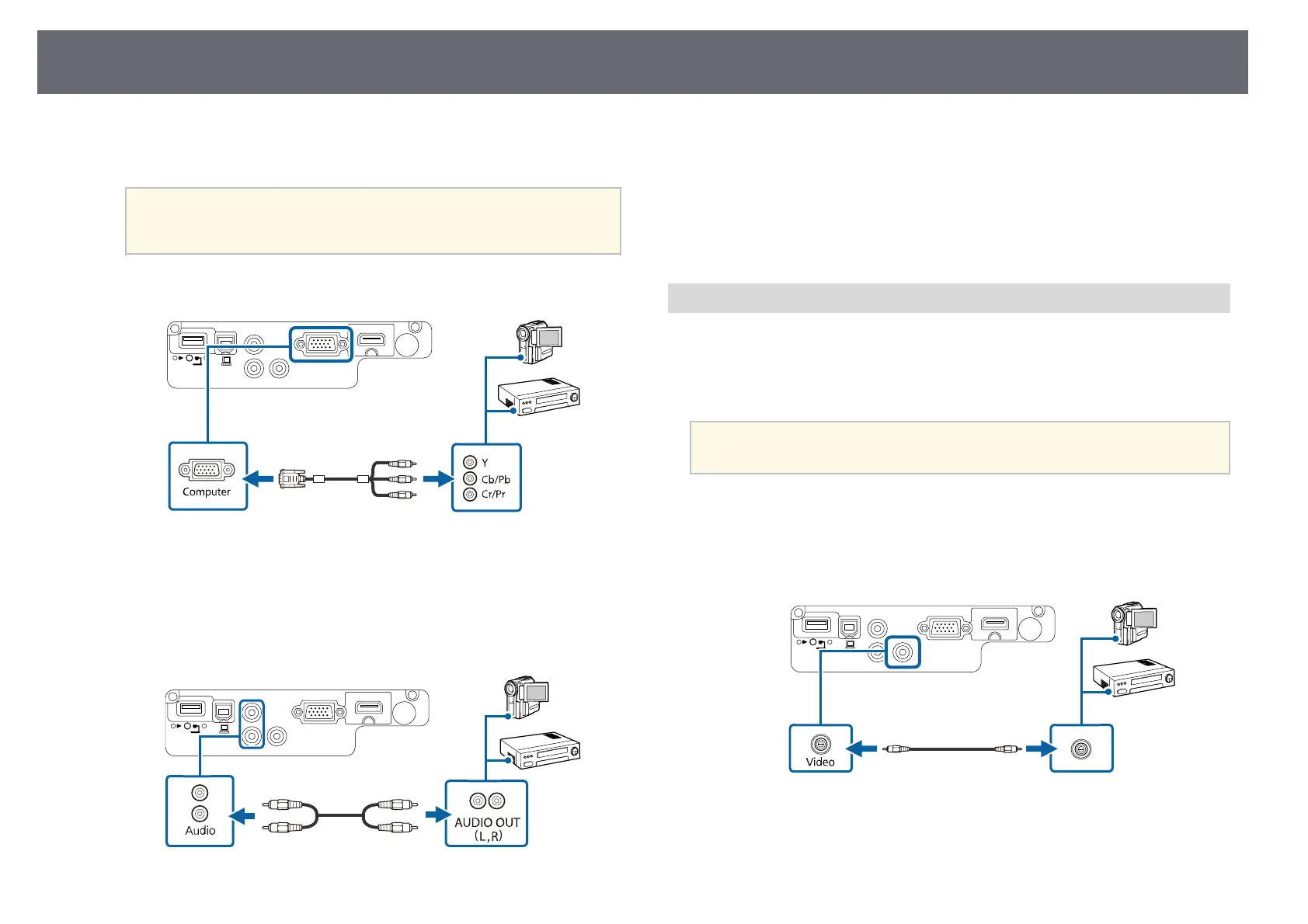

Connect the component connectors to your video source's color-coded
component video output ports.
a
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
an adapter, connect these connectors to your component video
cable.
b
Connect the VGA connector to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your video source's audio-out ports.
e
Connect the other end to the projector's Audio ports.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
s Signal > Advanced > Input Signal
gg Related Links
• "Input Signal Settings - Signal Menu" p.102
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.
b
Connect the other end to the projector's Video port.
c
Connect the audio cable to your video source's audio-out ports.

Epson EB-S05 Specifications

General

Matrix size	0.55 \
Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.77 - 2.4 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	1985 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	10000 h
Full HD	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Focus	Manual
Throw ratio	1.45 - 1.96:1
Zoom capability	Yes
Fixed focal length	16.7 mm
Focal length range	- mm
Aperture range (F-F)	1.44 - 1.44
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	282 W
Power consumption (economy mode)	203 W
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
Ethernet LAN (RJ-45) ports	0
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 2.0 Type-B ports quantity	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
RMS rated power	2 W
Pallet width	800 mm
Pallet height	3440 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	375 mm
Package width	145 mm
Package height	335 mm
Package weight	3.46 g
