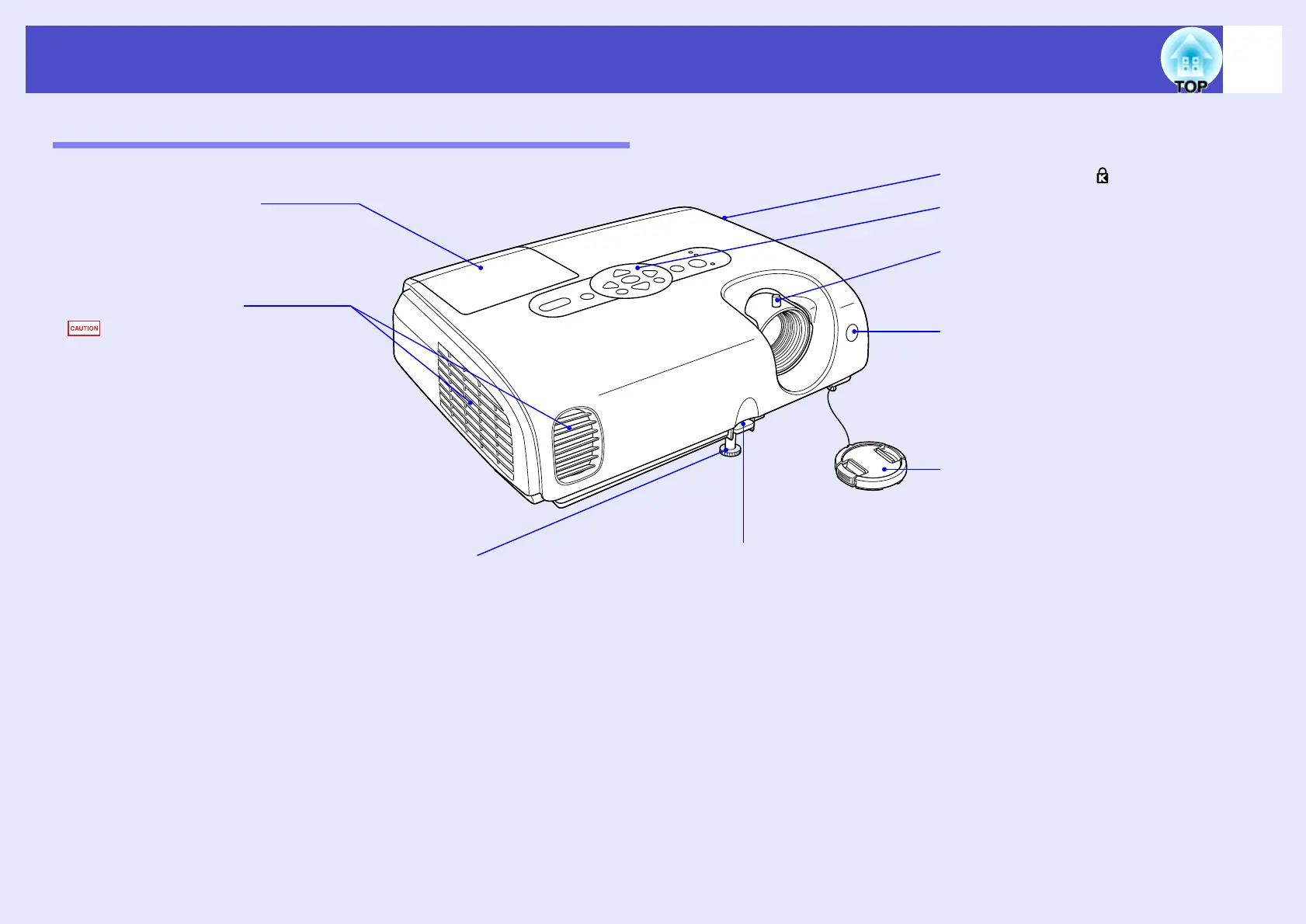

Part Names and Functions
Front/Top
• Control panel sp.7
• Remote control light-receiving
area sp.i
Receives signals from the remote control.
• Front adjustable foot
sp.i
Extend and retract to adjust the projection
angle when the projector is placed on a
surface such as a shelf.
• Lens cover
Attach when not using the projector to
prevent the lens from becoming dirty or
damaged.
• Focus ring sp.i
Adjusts the image focus.
• Foot adjust lever
sp.i
Pull out the foot lever to extend and
retract the front foot.
• Air exhaust vent
Do not touch the exhaust vent
immediately after projecting, or while
projecting, since it becomes hot.
Lamp cover sp.58
Open this cover when replacing the
projector's lamp.
• Security lock ( ) sp.67
