Part Names and Functions

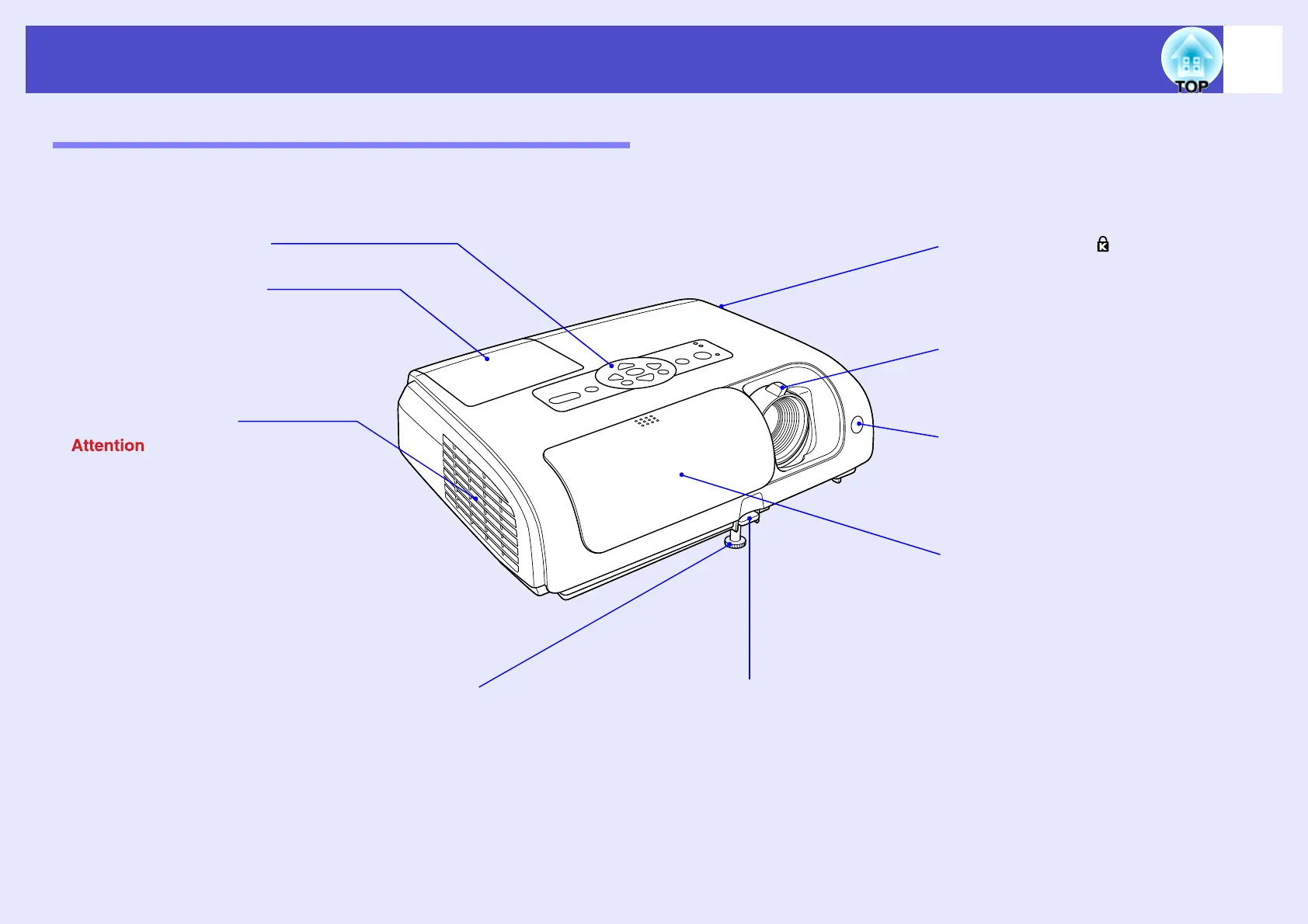

Front/Top
• Control panel sp.7
• Remote control light-receiving
area sQuick Start Guide
Receives signals from the remote control.
• Front adjustable foot
sQuick Start Guide
Extend and retract to adjust the projection
angle when the projector is placed on a
surface such as a shelf. You can raise the
angle up to a maximum of 10°.
• A/V mute slide
sQuick Start Guide
Slide shut when not using the projector to
protect the lens.
By closing during projection you can turn
off the image and the sound (A/V Mute).
The power supply to the unit remains on
even in A/V Mute. Do not forget to switch
off the power supply.
When Sleep Mode is set to "On", after
about 30 minutes in A/V Mute the power
turns off automatically. At the time of
purchase, Sleep Mode is set to "Off".
• Focus ring
sQuick Start Guide
Adjusts the image focus.
• Foot adjust lever
sQuick Start Guide
Pull out the foot lever to extend and
retract the front foot.
• Air exhaust vent
Do not place objects that may
become warped or otherwise affected by
heat near the air exhaust vent and do not
bring your face or hands near the air
exhaust vent while projection is in
progress.
• Lamp cover sp.59
Open this cover when replacing the
projector's lamp.
• Security lock ( ) sp.67
