Epson L110 Service Manual

Confidential
Disassembly/Reassembly Overview 18
L350/L300/L355/L210/L110 Series Revision B
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

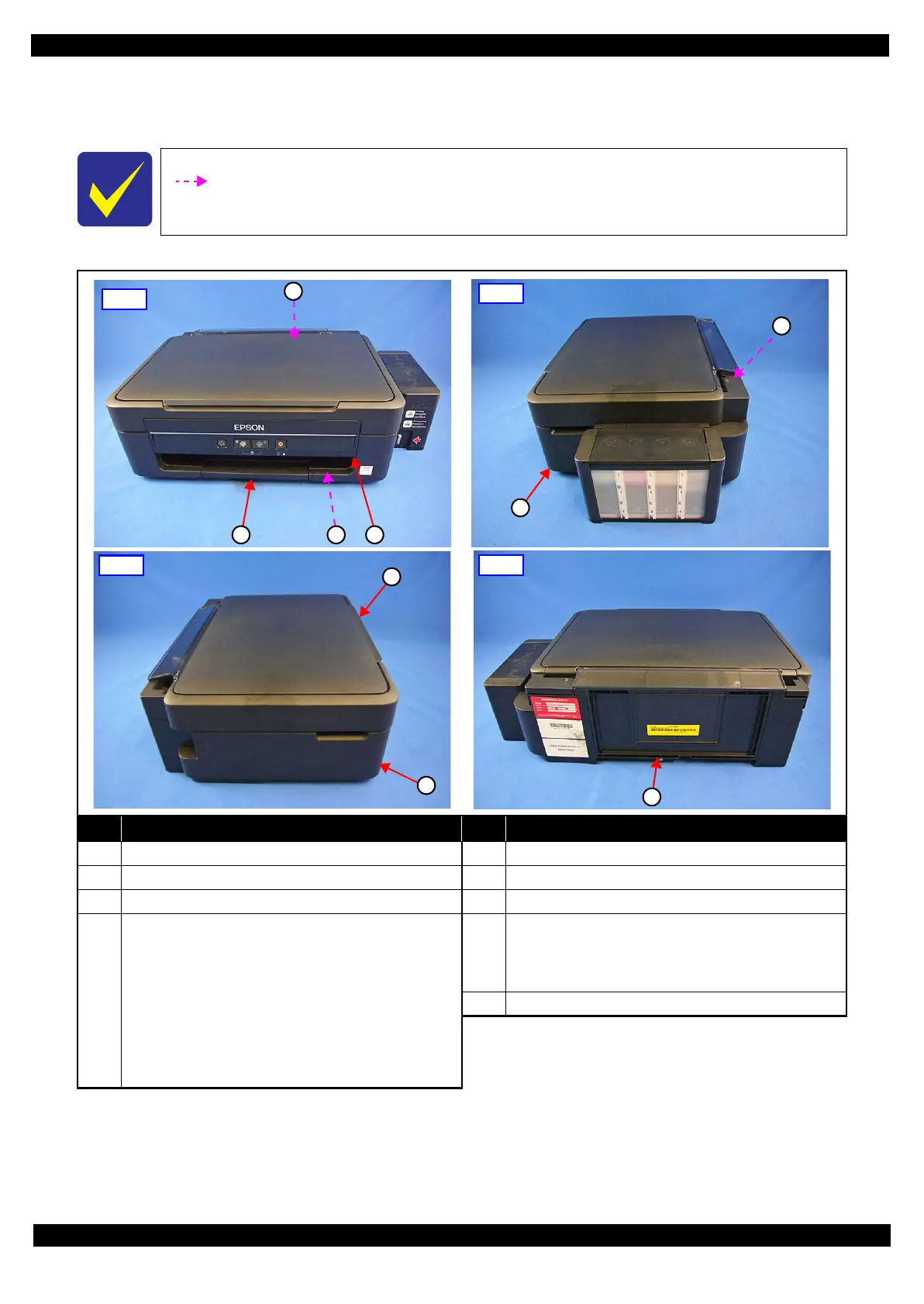

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p32) (L350/L355/L210 Series only) 5 Hinge (p36) (L350/L355/L210 Series only)
2 Tray Front Assy (p32) 6 Housing Right (p36) (L350/L355/L210 Series only)
3 Frame Base Assy (p34) 7 Housing Left (p32) (L350/L355/L210 Series only)
4
Panel Unit
• L355 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
• L350/L210 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
8
Scanner Unit (p32) (L350/L355/L210 Series only)
Scanner Housing Upper (p36) / Scanner Carriage Unit
(p36) / Scanner Housing Lower (p36) / CIS Module
Unit (p36) / Scanner Motor (p36)
9 Paper Support Assy (p32)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
