Epson L110 Service Manual

Confidential
Appendix Connector Diagram 72
L350/L300/L355/L210/L110 Series Revision B
5.1 Connector Diagram
Cable connections of this printer are shown below.

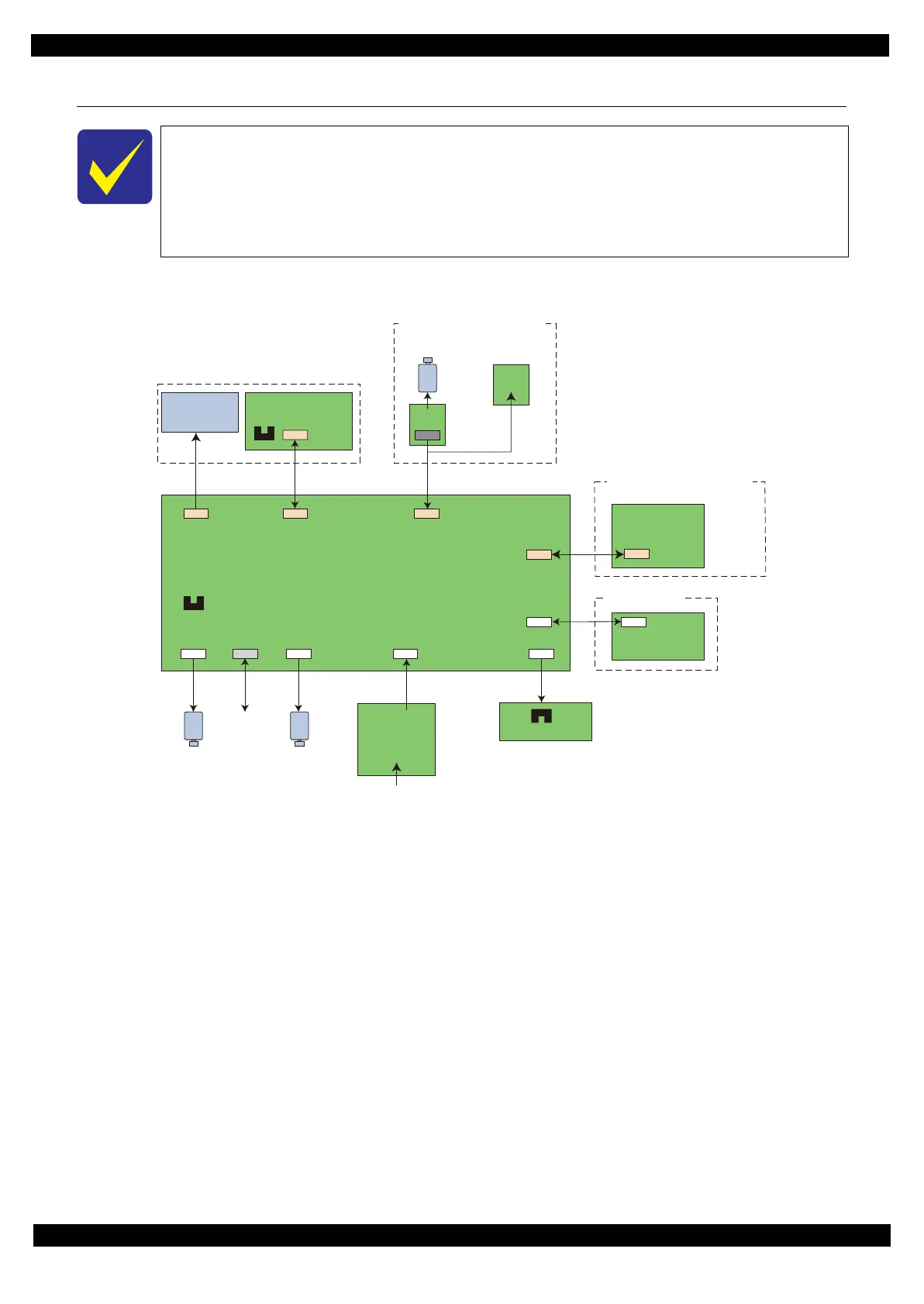

Figure 5-1. Connector Diagram
In this chapter, the product names are called as follows:
 L350 Series: L350/L351
 L300 Series: L300/L301
 L355 Series: L355/L358
 L210 Series:
L210/L211
 L110 Series: L110/L111
CN501 CN7CN13CN12
CN61 CN11
CN102
Printhead
CIS
PE Sensor
CR Motor
SCN Motor
PF Motor
USB
CN3
CN2
CN4
PF Encoder
CR Encoder
WiFi Board
AC in
PS Board
Main Board
Scanner Unit
CN1
CN1
Panel Board
CN1
CR Unit
Panel Unit
L350/L355/L210 series
L355 series
L350/L355/L210 series

Epson L110 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Sound pressure level (printing)	38 dB
Paper input type	Paper tray
Total input capacity	50 sheets
Total output capacity	30 sheets
Envelopes sizes	10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7, 8x10 \
Maximum ISO A-series paper size	A4
Ethernet LAN	No
Standard interfaces	USB 2.0
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Home & office

Weight and Dimensions

Depth	222 mm
Width	472 mm
Height	130 mm
Weight	2700 g
