Epson L120 Service Manual

Confidential
Disassembly/Reassembly Overview 17
L120 Revision A
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

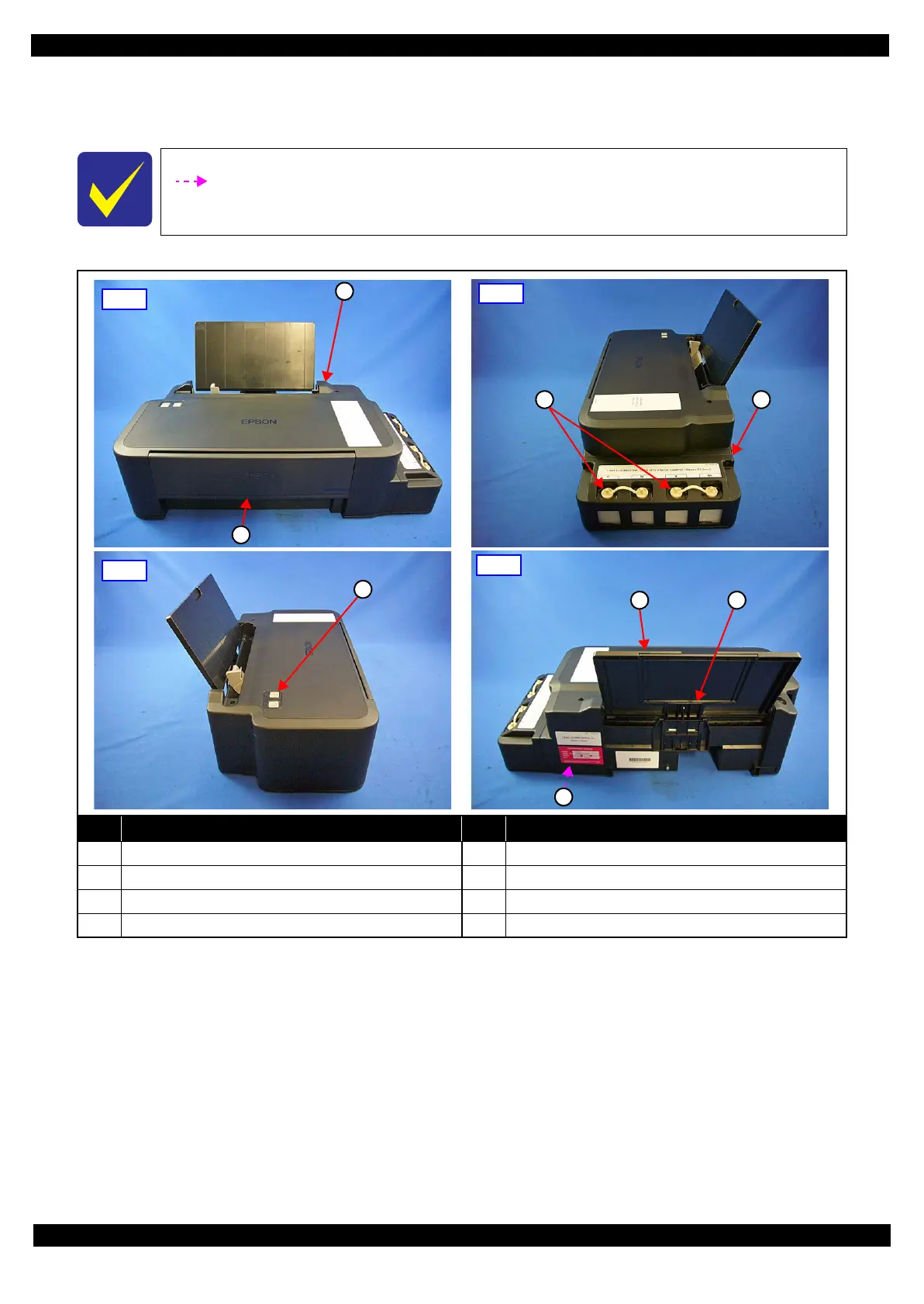

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Upper (p31) 5 Buttons (p31)
2 Printer Cover (p29) 6 Paper Support Assy (p29)
3 Cap Tank (p29) 7 Paper Support Joint (p29)
4 Ink Supply Tank Upper Housing (p29) 8 Frame Base Assy (p30)
1
2
Front
Right
3 4
7
Rear
8
6
Left
5

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
