Epson L120 Service Manual

Confidential
Appendix Protection for Transportation 59
L120 Revision A
5.3.2 Securing the Printer Cover
 Purpose
To prevent damaging the Printer Cover by the shock during transportation.
 Risks if it is not performed
The Printer Cover will be scratched and the abrasion powder will be produced due to the shock during
transportation.
 Preparation
Prepare two pieces of strong tape (length: 115 mm, width: 14 mm, fold one end 5 mm).
 Method
Apply strong tape on the Printer Cover and Housing Upper Assy to secure the Printer Cover.

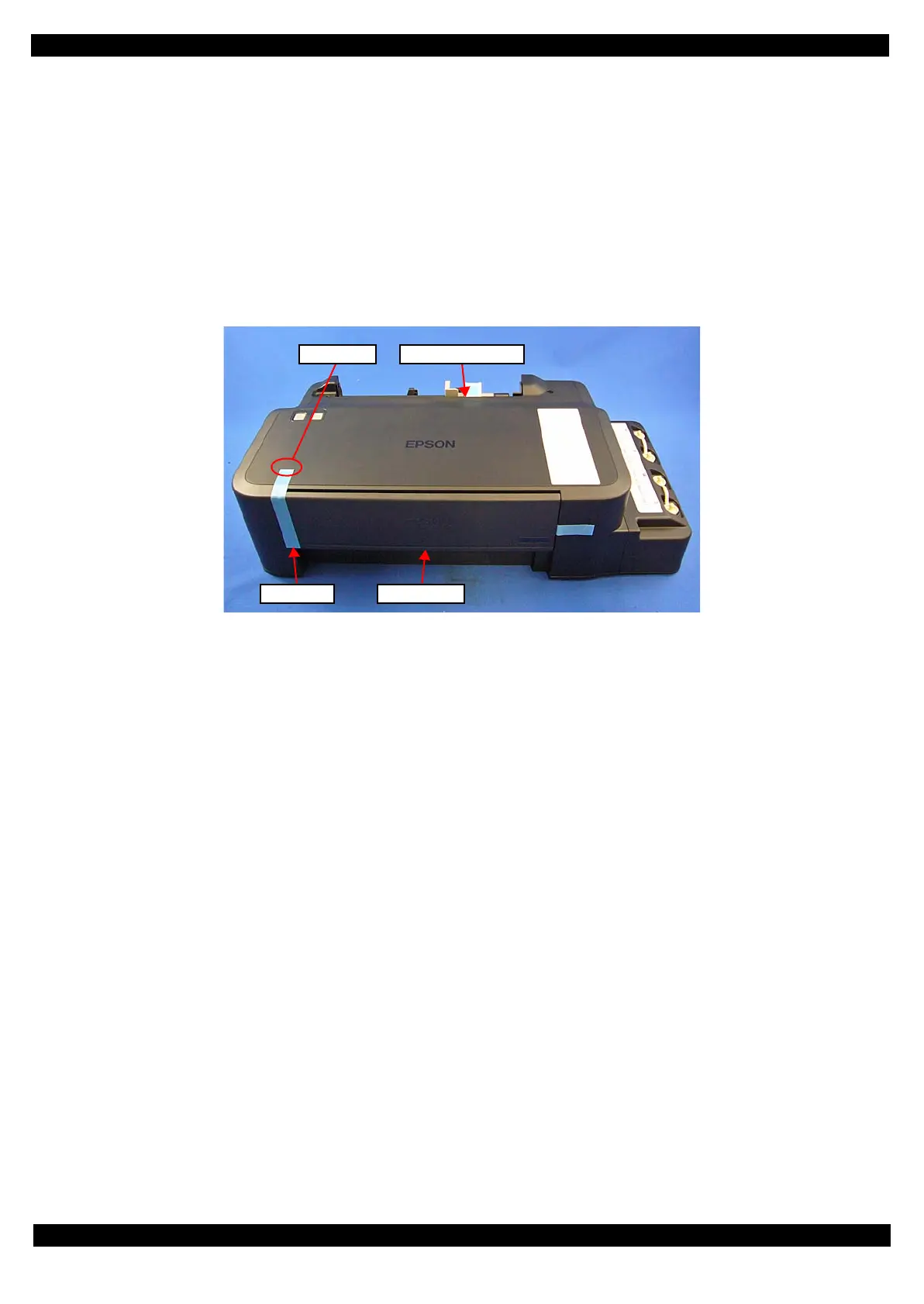

Figure 5-3. Securing the Printer Cover
Folded ends
Housing Upper Assy
Printer Cover
Strong tape

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
