Epson L120 Service Manual

Confidential
Appendix Connector Diagram 57
L120 Revision A

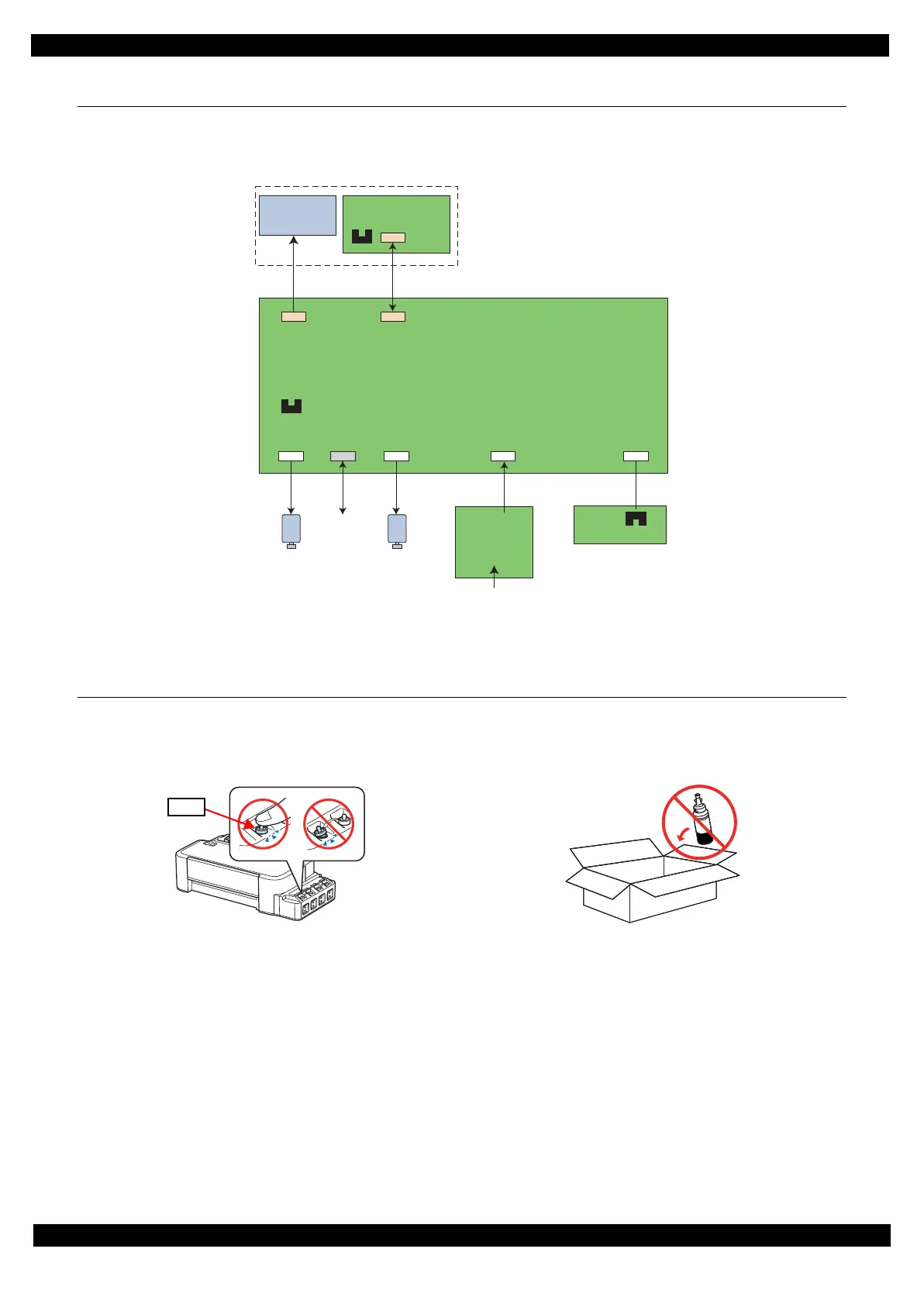

5.1 Connector Diagram
Cable connections of this printer are shown below.
Figure 5-1. Connector Diagram
5.2 Points to be checked before packing the printer
 All the caps of the Ink Supply Tank Assy are securely
closed.
 The opened ink bottle is not included in the box.
CN501 CN7CN13CN12
CN6
CN102
Printhead
PE Sensor
CR Motor PF Motor
USB
CN3
PF Encoder
CR Encoder
AC in
PS Board
Main Board
CN1
CR Unit
Cap

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
