Disassembly/Reassembly Overview 23
L120 Revision A
2.1.5 Checks and Precautions before Disassembling
2.1.5.1 Factors which Affect the Print Quality
HOW TO PLACE THE INK TANK ASSY WHEN DISASSEMBLING/REASSEMBLING
The Ink Supply Tank Assy of this printer has an air release hole on the upper part.
The ink in the ink tanks is vented to the atmosphere through this hole to stabilize ink supply to the Printhead. If
the Ink Supply Tank Assy is tilted, the ink in the tanks may leak from the air release hole. If the air release hole is
sealed up with the leaked ink, ventilation to the atmosphere cannot be done properly and the print quality may be
affected adversely.
In order to prevent this from happening, make sure to place the Ink Supply Tank Assy as shown below after
removing it.

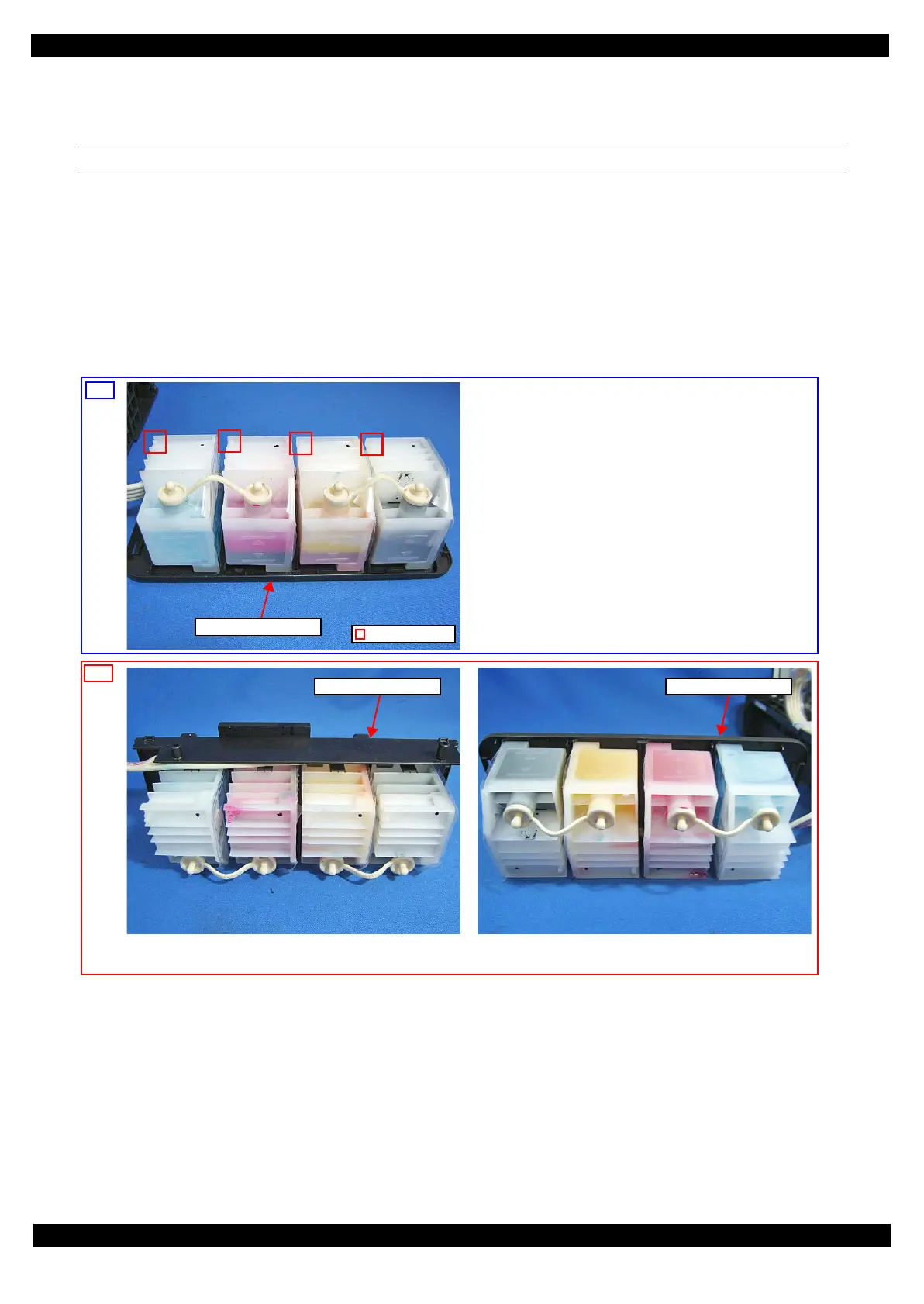

Figure 2-8. How to Place the Ink Tank Assy
Ink Supply Tank Assy
Ink Supply Tank Assy
Air release hole
Do not place the Ink Supply Tank Assy with the air release hole down or to one of the sides. Otherwise, the ink in the Ink Supply
Tank Assy may come up to the hole and may leak or the print failure may occur.
OK
NG
Ink Supply Tank Assy

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
