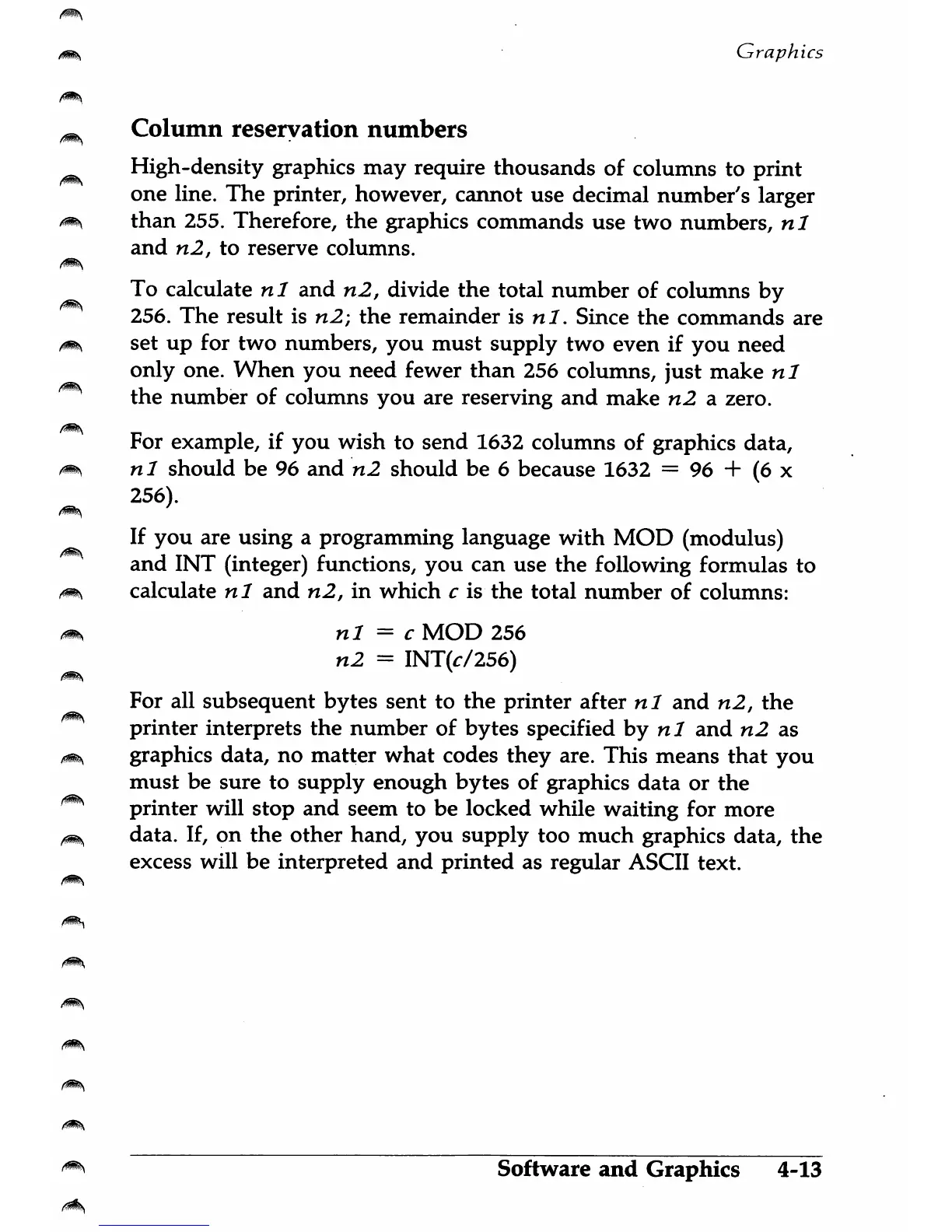

Graphics
Column reservation numbers
High-density graphics may require thousands of columns to print
one line. The printer, however, cannot use decimal nvunber's larger
than 255. Therefore, the graphics commands use two numbers, nl
and n2, to reserve columns.
To calculate nl and n2, divide the total number of columns by
256. The result is n2; the remainder is nl. Since the commands are
set up for two numbers, you must supply two even if you need
only one. When you need fewer than 256 columns, just make nl
the number of columns you are reserving and make n2 a zero.
For example, if you wish to send 1632 columns of graphics data,
nl should be 96 and n2 should be 6 because 1632 = 96 + (6 x
256).
If you are using a programming language with MOD (modulus)
and INT (integer) functions, you can use the following formulas to
calculate nl and n2, in which c is the total number of columns:
nl = c MOD 256
n2 = lNT(r/256)
For all subsequent bytes sent to the printer after nl and n2, the
printer interprets the number of bytes specified hy nl and n2 as
graphics data, no matter what codes they are. This means that you
must be sure to supply enough bytes of graphics data or the
printer will stop and seem to be locked while waiting for more
data. If, on the other hand, you supply too much graphics data, the
excess will be interpreted and printed as regular ASCII text.
Software and Graphics 4-13
